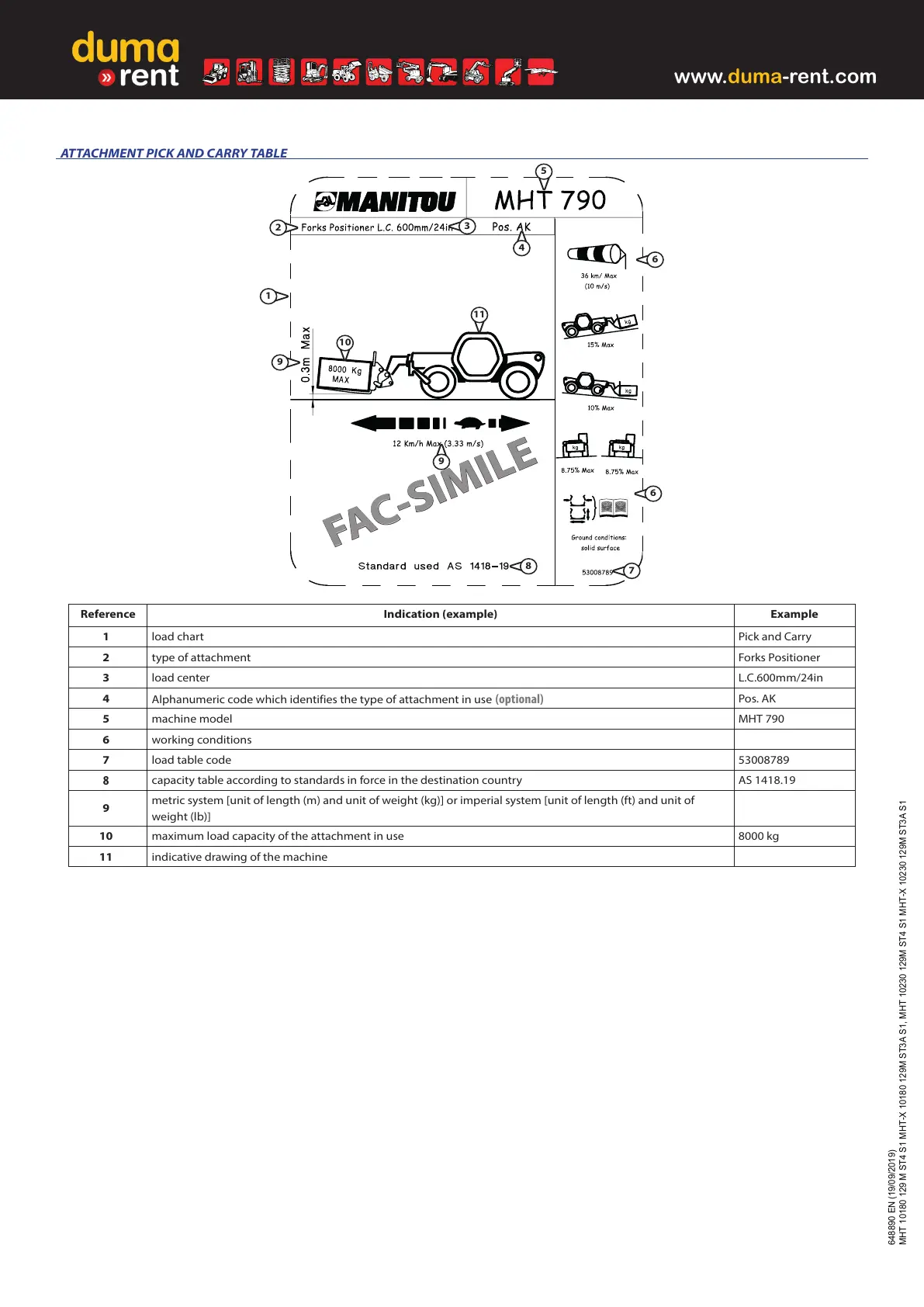

ATTACHMENT PICK AND CARRY TABLE
Reference Indication (example) Example
1 load chart Pick and Carry
2 type of attachment Forks Positioner
3 load center L.C.600mm/24in
4
Alphanumeric code which identifies the type of attachment in use
(optional)
Pos. AK
5 machine model MHT 790
6 working conditions
7 load table code 53008789
8
capacity table according to standards in force in the destination country AS 1418.19
9
metric system [unit of length (m) and unit of weight (kg)] or imperial system [unit of length (ft) and unit of
weight (lb)]
10 maximum load capacity of the attachment in use 8000 kg
11 indicative drawing of the machine
5
FAC-SIMILE
6
8
2
7
9
3
4
1
6
11
10
9
