LEGEND OF SIGNS AND SYMBOLS
OVERVIEW:
p
Warning! Be careful! The safety of the user and of the telehandler is at risk.
See image 2-48
e
For more details: see paragraph “Switches”

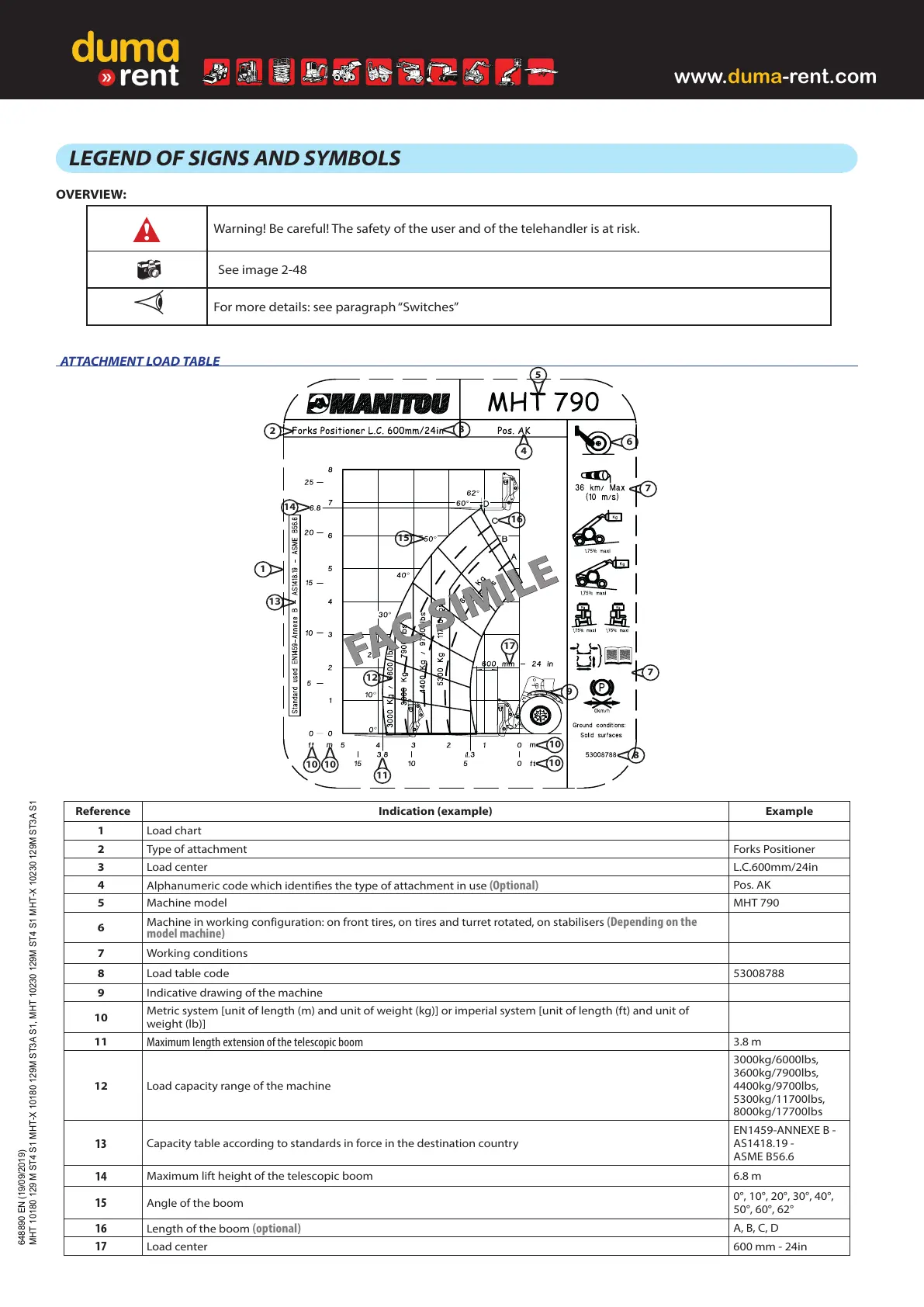

ATTACHMENT LOAD TABLE
5
7
6
8
2
12
1010
9
10
10
13
17
15
16
3
4
7
1
11
14
FAC-SIMILE
Reference Indication (example) Example
1 Load chart
2 Type of attachment Forks Positioner
3 Load center L.C.600mm/24in
4
Alphanumeric code which identies the type of attachment in use
(Optional)
Pos. AK
5 Machine model MHT 790
6
Machine in working configuration: on front tires, on tires and turret rotated, on stabilisers
(Depending on the
model machine)
7 Working conditions
8 Load table code 53008788
9 Indicative drawing of the machine
10
Metric system [unit of length (m) and unit of weight (kg)] or imperial system [unit of length (ft) and unit of
weight (lb)]
11
Maximum length extension of the telescopic boom
3.8 m
12 Load capacity range of the machine
3000kg/6000lbs,
3600kg/7900lbs,
4400kg/9700lbs,
5300kg/11700lbs,
8000kg/17700lbs
13
Capacity table according to standards in force in the destination country
EN1459-ANNEXE B -
AS1418.19 -
ASME B56.6
14
Maximum lift height of the telescopic boom 6.8 m
15
Angle of the boom
0°, 10°, 20°, 30°, 40°,
50°, 60°, 62°
16 Length of the boom (optional)
A, B, C, D
17
Load center 600 mm - 24in
