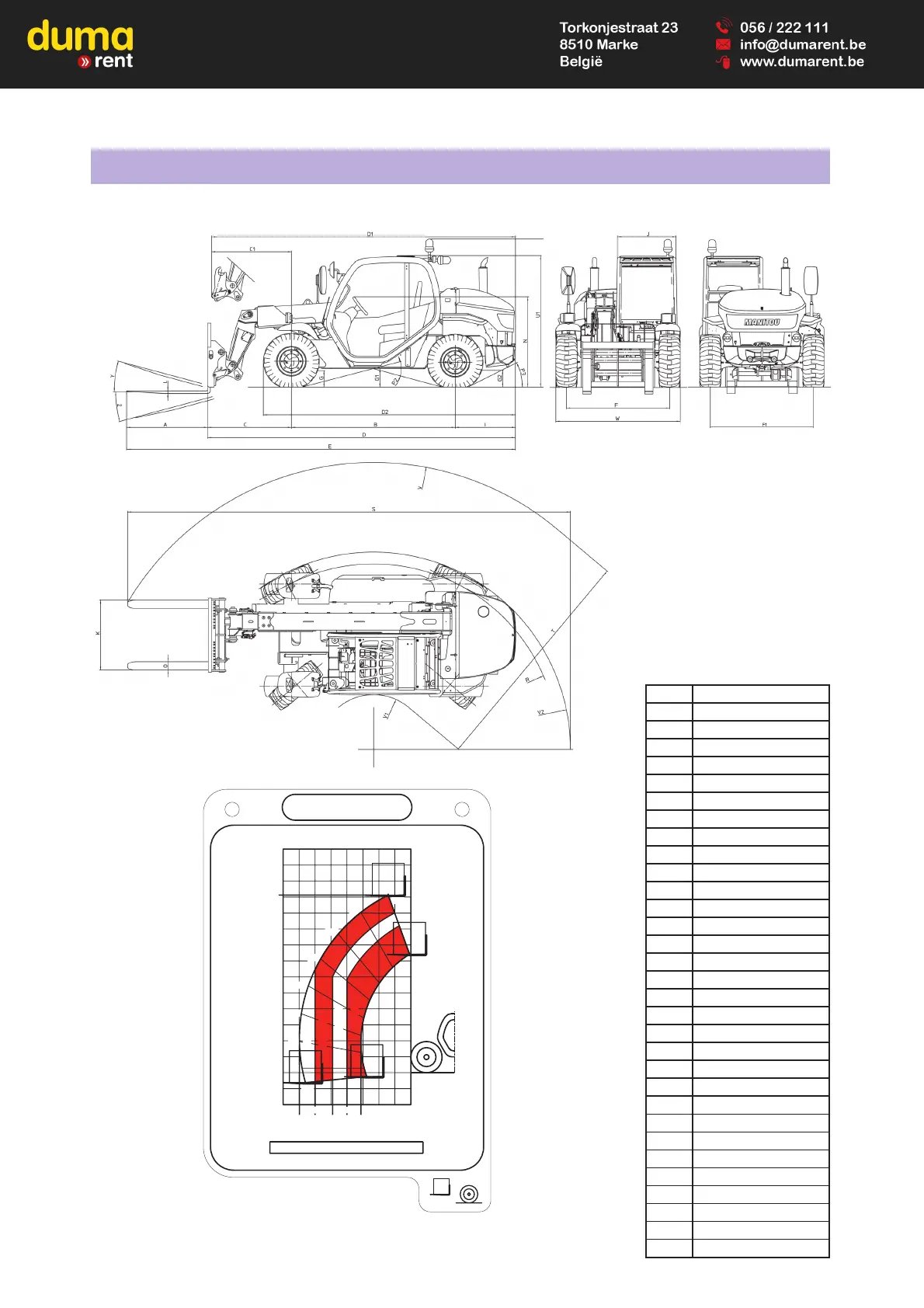

DIMENSIONS AND LOAD CHART MT 620 Série B-E2
MT620 - 16.5"
SUIVANT NORME EN 1459 annexe B.
N°270307
-1
0
1
2
3
4
5
6
7
5.56
0m1234
2000KG
1200KG
1000KG
1600KG
3.50 3.00 2.45 2.00 1.56
-6°
0°
10°
20°
30°
40°
50°
60°
70°
A
1200 mm
B
2430 mm
C
1245 mm
C1
1184 mm
D
4571 mm
D1
4510 mm
D2
3741 mm
E
5771 mm
F
1520 mm
F1
1520 mm
G
245 mm
G1
273 mm
G2
249 mm
I
905 mm
J
865 mm
K
1040 mm
L
40 mm
N
1337 mm
O
125 mm
P2
29,5 °
P3
31 °
R
3190 mm
S
6588 mm
T
3475 mm
U1
1949 mm
U2
2195 mm
V
4290 mm
V1
815 mm
V2
3144 mm
W
1834 mm
Y
12 °
Z
120,2 °

Manitou MLT 523 Turbo MONO-ULTRA Specifications

General

Brand	Manitou
Model	MLT 523 Turbo MONO-ULTRA
Category	Front End Loaders
Language	English
