2 - 28

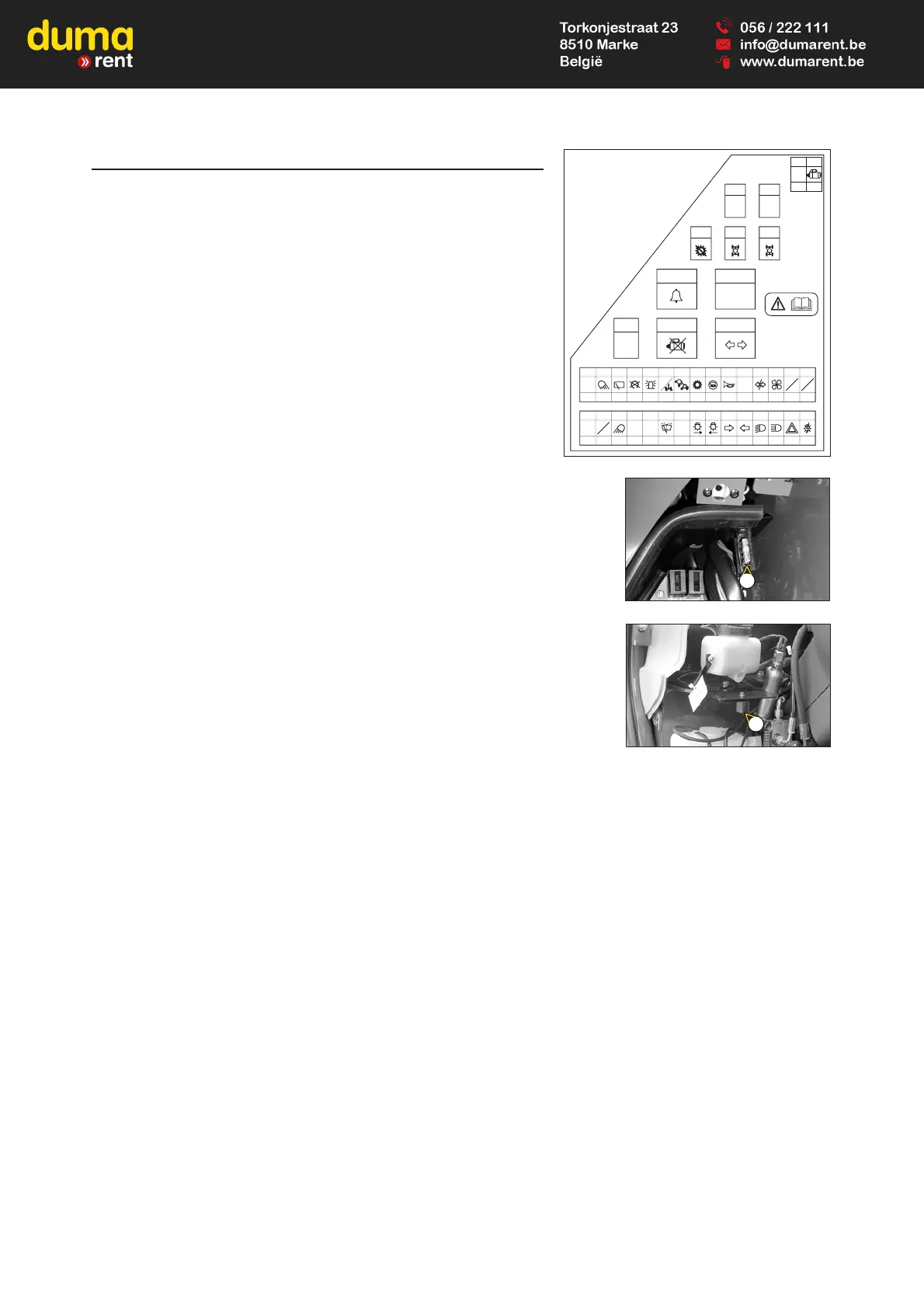

12 - FUSE AND RELAY
A sticker on the inside of the access panel gives a clear display of the use of
the components described below.
K0 - OPTION Air conditioning.
K1 - OPTION.
K2 - Transmission cut-off relay.
K3 - Reverse gear relay.
K4 - Forward gear relay.
K5 - Buzzer.
K6 - OPTION Electrovalve on jib head.
- OPTION Electrical jib provision.
- OPTION Electrovalve on jib head + attachment hydraulic locking device.
K7 - OPTION Hydraulic movements cut-off.
K8 - Safety system starting switch relay.
K9 - Flashing unit.
K16 - Preheating I.C. engine relay.
K17 - Control panel lighting relay.
NOTE: Replace a used fuse with a new fuse of the same quality and capacity.
Never reuse a repaired fuse.
F1 - (10A MAXI) - OPTION.
F2 - (15A MAX.) - OPTION Working tail light (10A).
F3 - (10A MAX.) - Rear windscreen wiper (7,5A).
- OPTION Roof windscreen wiper (7,5A).
F4 - (10A MAX.) - Stop I.C. engine electrovalve (7,5A).
F5 - (10A MAX.) - Flashing light (7,5A).
F6 - (7,5A MAX.) - Alignment of the wheels (5A).
F7 - (15A MAX.) - Longitudinal stability alarm (10A).
- OPTION Hydraulic movements cut-off (10A).
F8 - (15A MAX.) - Gear reverser (15A).
- Transmission cut-off (15A).
- Reverse buzzer alarm (15A).
MT 523 Série B-E2
MT 523 Série MONO-ULTRA B-E2
MT 620 Série B-E2
- OPTION Reverse buzzer alarm (15A).
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
F9 - (10A MAX.) - Control instruments panel (5A).
F10 - (15A MAX.) - Sound alarm (15A).
- Stop switch (15A).
F11 - (15A MAX.) - OPTION Jib head light (10A).
- OPTION Blue front and rear working lights (10A).
F12 - (10A MAX.) - Indicator power supply (10A).
F13 - (35A MAX.) - Heating (30A).
F14 - (25A MAX.) - OPTION.
F15 - (25A MAX.) - OPTION.
F16 - (10A MAX.) - OPTION Air conditioning (7,5A).
F17 - (15A MAX.) - OPTION Electrovalve on jib head (10A).
- OPTION Electrovalve on jib head + attachment hydraulic locking device (10A).
- OPTION Electrical jib provision (10A).
- OPTION Anti-theft device provision (10A).
- OPTION Cutting off "simple" hydraulic movements (10A).
F18 - (15A MAX.) - OPTION Front working head light (15A).
F19 - (15A MAX.) - OPTION Rear window defrosting (15A).
F20 - (10A MAX.) - OPTION Pneumatic seat (10A).
- OPTION Blue front and rear working lights (10A).
F21 - (10A MAX.) - Front windscreen wiper and windscreen washer (10A).
F22 - (15A MAX.) - OPTION Jib suspension (10A).
F23 - (10A MAX.) - Right sidelight (7,5A).
- Sidelight indicator light (7,5A).
- Control panel lighting (7,5A).
F24 - (10A MAX.) - Left sidelights (7,5A).
F25 - (10A MAX.) - Right indicators (7,5A).
F26 - (10A MAX.) - Left indicators (7,5A).
OPT.
OPT.
STOP
F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14
F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25
K8
K4
K6
K7
K5
K3
K9
K2
K1K0
25A max.25A max.30A10A max. 10A7.5A15A 7.5A 5A 10A 5A 15A 15A max.15A 10A
15A max.10A10A max.15A max.15A max.10A max. 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.OPT.OPT.OPT.
OPT. OPT.
OPT.OPT.
N°243543
20A3A
F31F32
LSU
DIST.
K17
F31
