2 - 29
F27 - (15A MAX.) - Low beam (15A).
- Low beam indicator light (15A).
- OPTION Rear fog light (15A).
F28 - (15A MAX.) - Main beam (15A).
- Main beam lamp (15A).
F29 - (25A MAX.) - Hazard warning lights power supply (15A).
- Roof light (15A).
- OPTION (+)permanent (15A).
F30 - (25A MAX.) - Light switch power supply, horn and indicators (25A).
F31 - (20A MAX.) - Starter (20A).

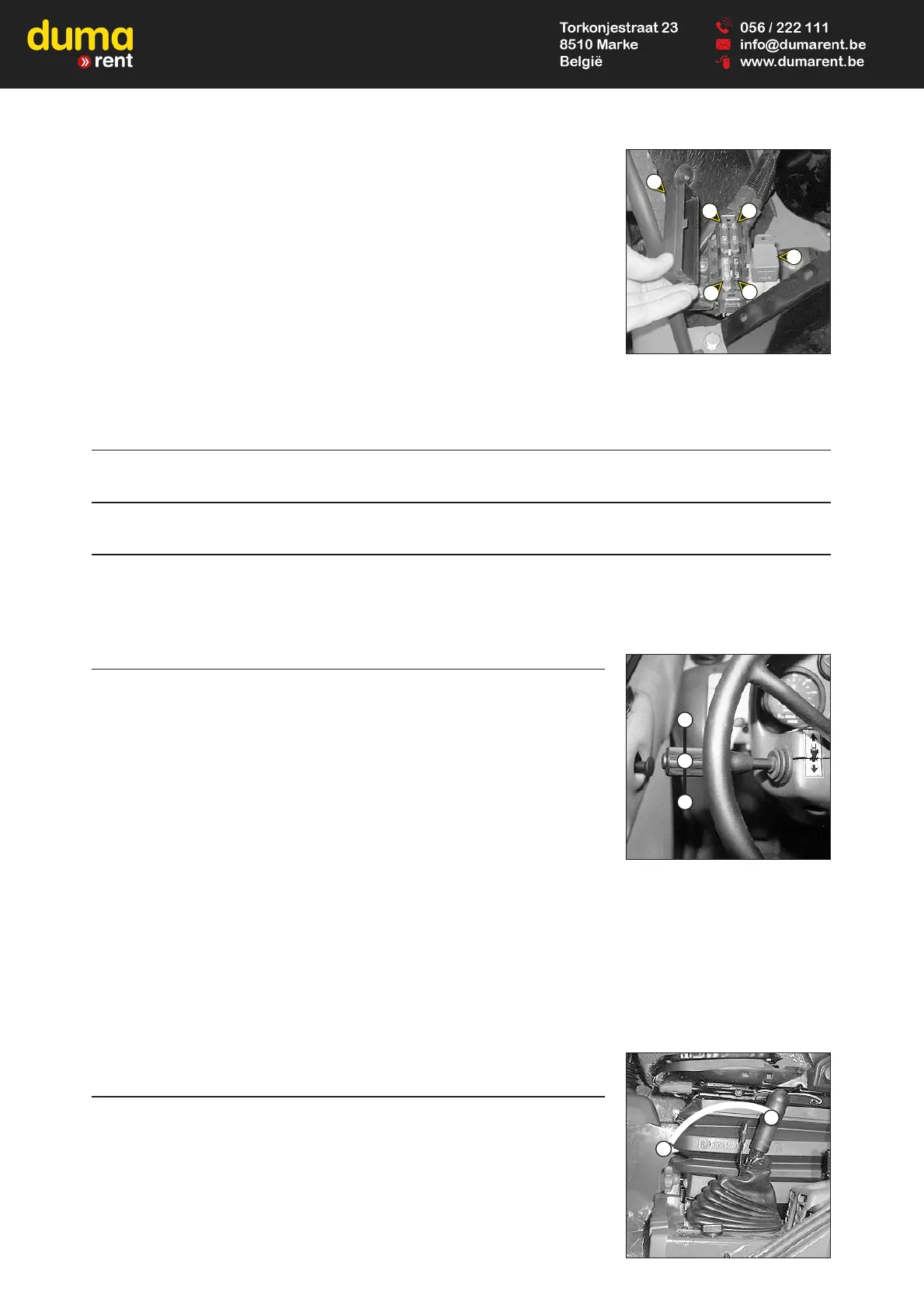

Remove cap 1 for access to fuses F40 to F43.
F40 - (40A MAX.) - Lift truck electrical equipment (40A).
F41 - (40A MAX.) - Lift truck electrical equipment (40A).
F42 - (80A MAX.) - Preheating I.C. engine (80A).
F43 - (80A MAX.) - Alternator (80A).
13 - ROOF LIGHT
14 - ACCELERATOR PEDAL
15 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
The pedal applies on the front and rear wheels by an hydraulic brake system, and allows the lift truck to be slowed down and
stopped. Depending on the position of the transmission cut-off switch, it enables the free travel to cut off transmission (see: 2 -
DESCRIPTION: 5 - SWITCHS PANEL).
16 - FORWARD/REVERSE LEVER
When operating this control, the lift truck should be travelling at slow speed and not
accelerating. When the reverser is in the neutral position a mechanical lock prevents an
accidental shifting movement.
FORWARD: Lift slightly and push the lever forwards (position A).
REVERSE: Lift slightly and pull the lever backwards (position B).
NEUTRAL: To start the lift truck, the lever must be in neutral (position C).
NOTE: The sound alarm on reverse motion indicate that the lift truck is running in reverse
motion.
SAFETY FOR MOVING THE LIFT TRUCK
(from machine no 212106)
Authorization to move the lift truck is controlled by an electronic unit. The operator must observe the following sequence to move
the truck forwards or backwards:
1 - sit down correctly in the driver’s seat,
2 - release the parking brake,
3 - engage forward or reverse movement.
To stop the lift truck, he must observe the following sequence:
1 - set the reversing gear in neutral,
2 - engage the parking brake,
3 - get out of the lift truck.
If these sequences are not observed (e.g.: leaving the driver’s seat without setting the parking brake), a buzzer sounds. You must
then return the reversing gear to the neutral position and repeat the sequence.
17 - PARKING BRAKE LEVER
To prevent accidental loosening or release, the lever is fitted with safety locking.
- To apply the parking brake, pull the lever backwards (position A).
- To loosen the parking brake, release and push the lever forwards (position B).
A
C
B
A
B
F41
F42
1
K16
F43
F40
