2 - 54

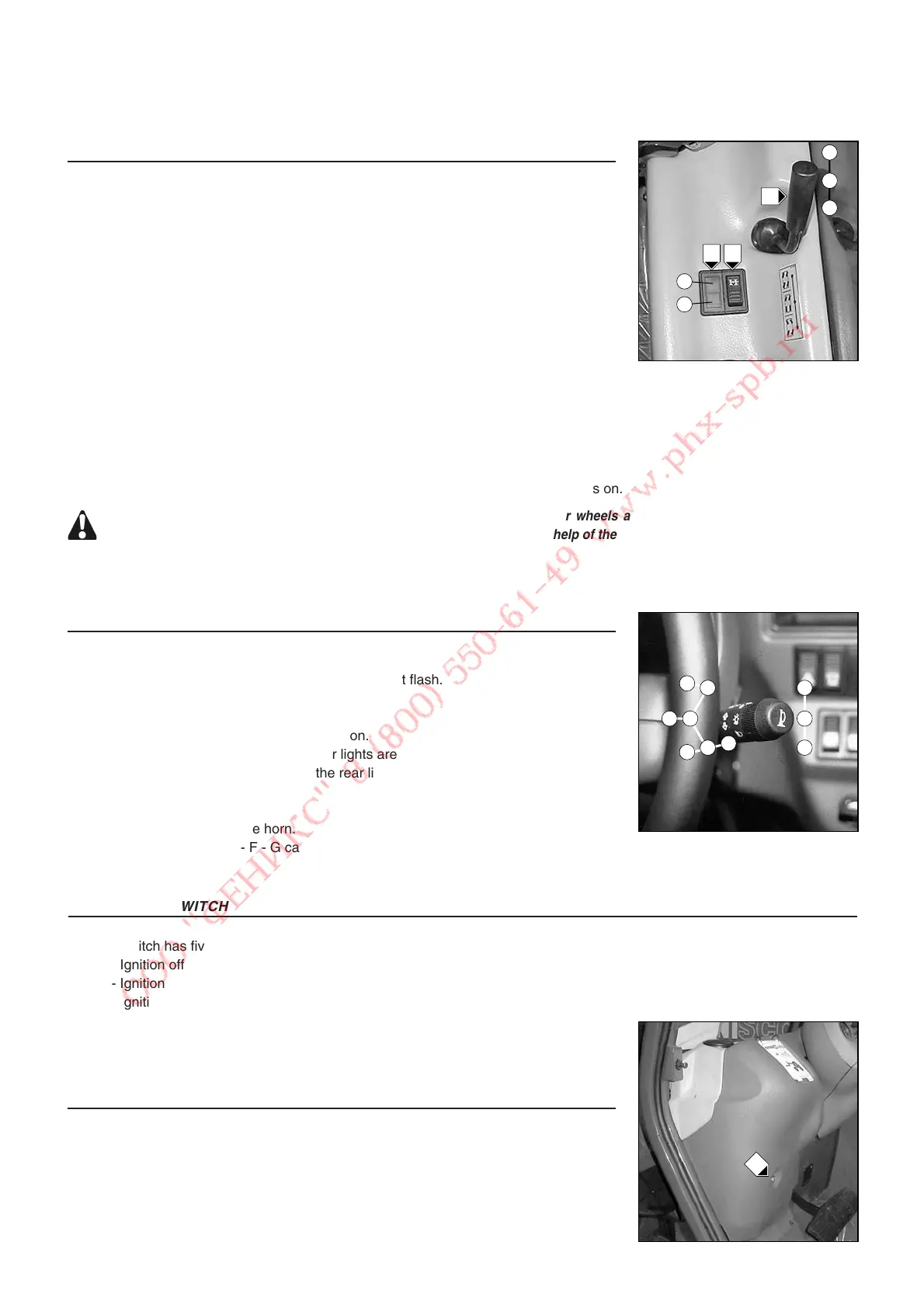

6 - SWITCH AND LAMPS FOR ALIGNMENT OF THE WHEELS
Before selecting one of the three possible steering positions, bring the 4 wheels into
alignment, i.e., in the straight ahead position.
A - GREEN LAMPS FOR ALIGNMENT OF THE WHEELS
These lamps come on to indicate the alignment of the wheels, in relation to the axle of
the lift truck. The lamp A1 for the front wheels and the lamp A2 for the rear wheels.
B - SWITCH FOR ALIGNMENT OF THE WHEELS
This switch enables the use or not of the device for alignment of the wheels.The
indicator light indicates its use.
WHEEL ALIGNMENT PROCEDURE
- Connect the switch (Signal light ON).
- Shift the distributor control lever for steering selection 1 in position B (4 wheel steering).
- Turn the steering wheel and bring the rear wheels into alignment until the lamp A2 is on.
- Shift the distributor control lever for steering selection 1 in position A (Highway traffic).
- Turn the steering wheel and bring the front wheels into alignment until the lamp A1 is on.
Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive in front wheel steer. The
control of the alignment of the rear wheels must be regularly done with the help of the green lamps, while driving the lift truck.
In case of anomalies, consult your dealer.
7 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE : The positions D - E - F - G can be carried out without the ignition being on.
8 - IGNITION SWITCH
The key switch has five positions :
P - Ignition off, parking position.
O - Ignition switched off and engine stopped.
I - Ignition on.
II - Heating.
III - The engine starts, return to position i as soon as the key is released.
9 - BRAKING OIL TANK AND WINDSCREEN WASHER ACCESS PANEL
- Loosen screw 1 and lift up the brake fluid and windscreen washer access panel.
D AG
C
G
B
F
G
A
E
A2
A1
C
B
A
A
B
1
1
