2 - 62

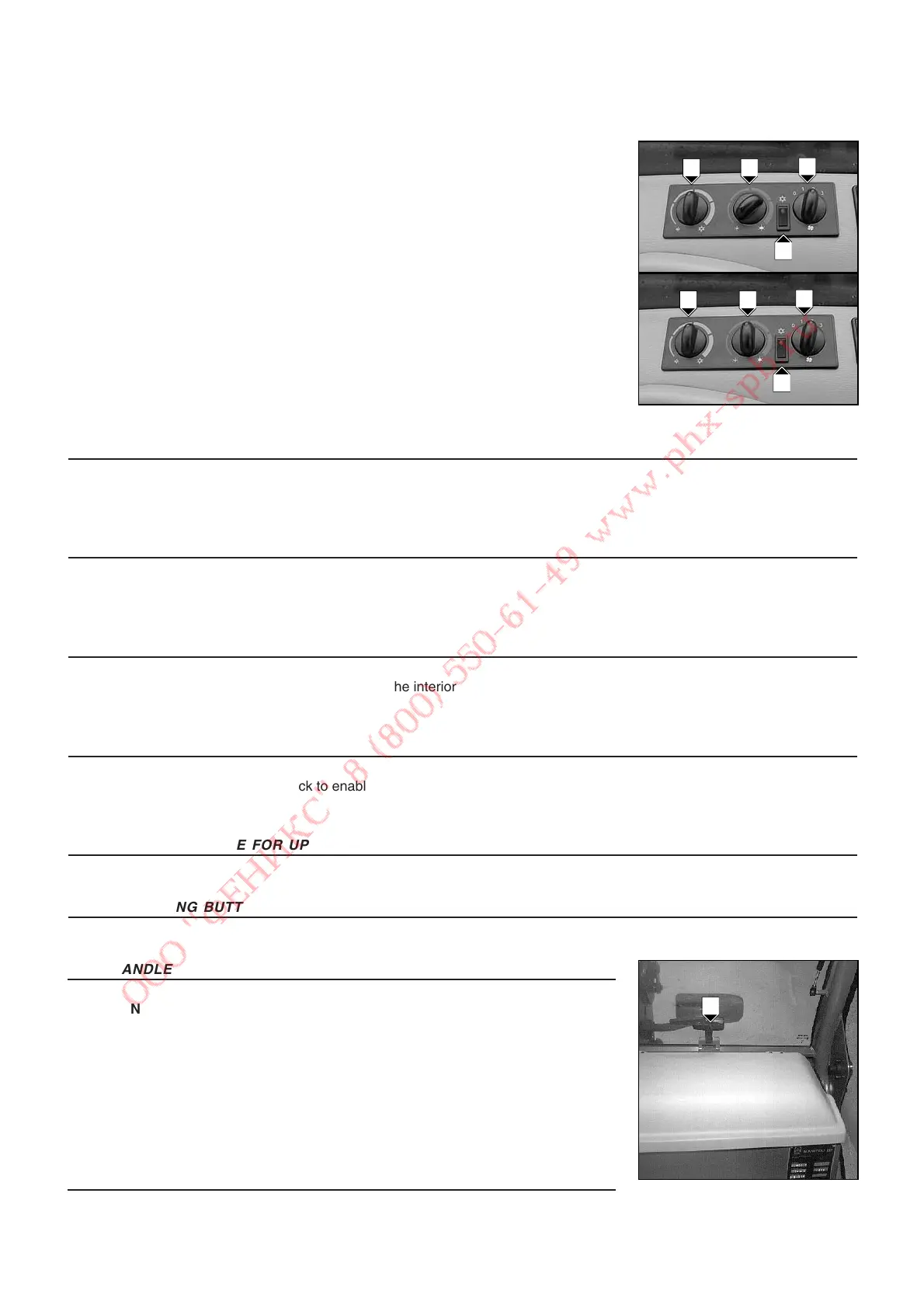

CONDITIONED AIR MODE
The controls must be adjusted in the following way :
A - Control with signal light on.
B - At the end of travel to the left.
C - At the required temperature.
D - At the required temperature 1, 2 or 3.
DEMISTING MODE
The controls must be adjusted in the following way :
A - Control with signal light on.
B - At the required temperature.
C - At the required temperature.
D - At the required temperature 1, 2 or 3.
24 - C
AB FILTER VENTILATORS
See chapter : D - EVERY 500 HOURS SERVICE in paragraph : 3 - MAINTENANCE.
25 - W
INDSCREEN DEMIST VENTS
For optimum effectiveness, close the heating ventilators.
26 - H
EATING VENTS
These heating vents enable the air to be directed to the interior of the cabin and onto the side windows.
27 - D
OOR LOCK
Two keys are provided with the lift truck to enable the cabin to be locked.
28 - LOCKING HANDLE FOR UPPER HALF DOOR
29 - RELEASING BUTTON FOR UPPER HALF DOOR
30 - H
ANDLE FOR REAR WINDOW OPENING
EMERGENCY EXIT
Use the rear window as an emergency exit, if it is impossible to leave the cab by the
door.
31 - TOOL BOX AND DOCUMENT HOLDER
Ensure that the operator's manual is in its place in the document holder.
C
D
B
A
C
D
B
A
