2 - 68

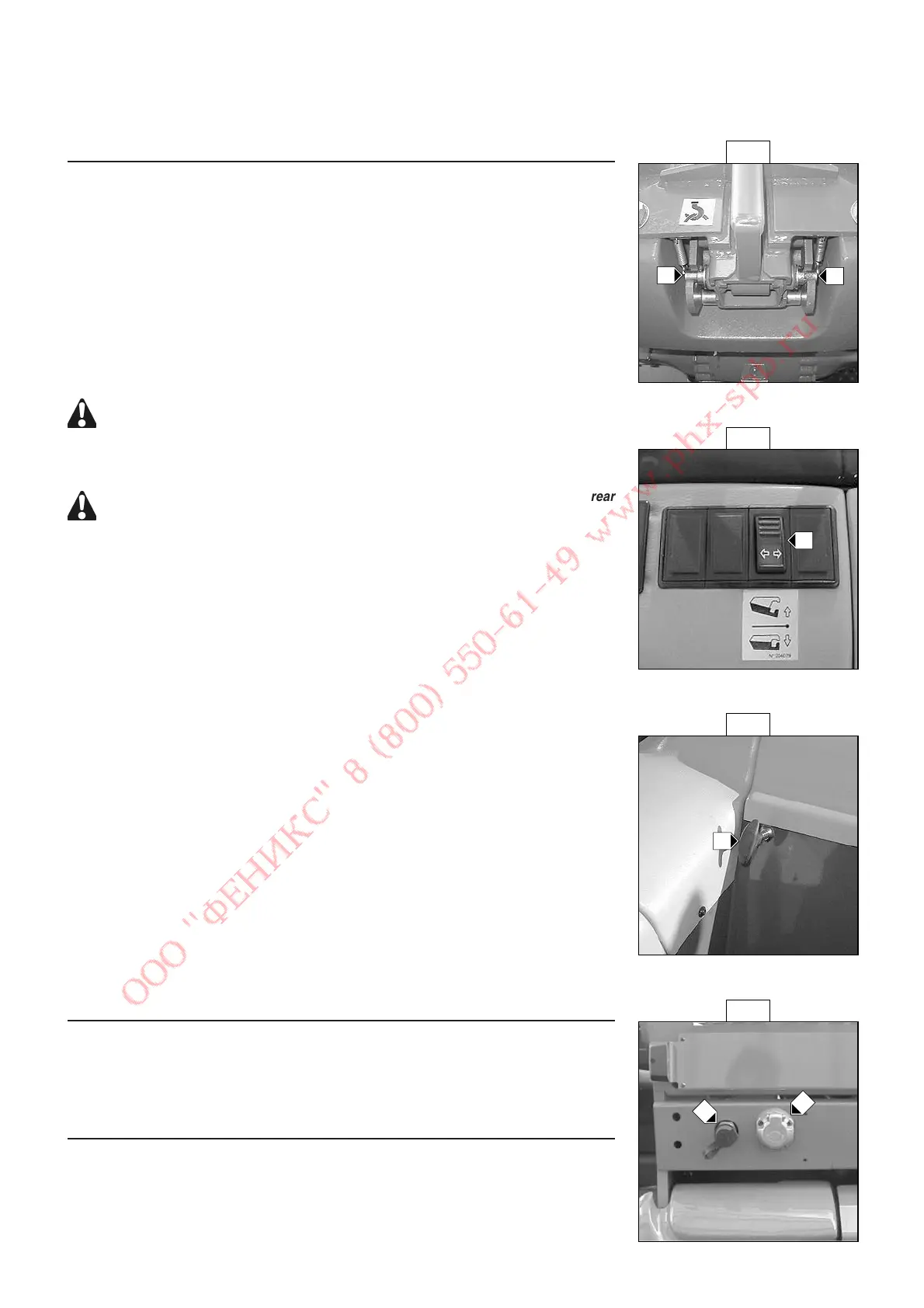

G - HYDRAULIC TRAILER HOOK (OPTION) (FIG. G - H - I)
MLT 629/633/730 -120 LS Série A
MLT 633/730 LS Turbo Série A
MLT 633/730 -120 LS POWERSHIFT Série A
NOTE : The rear-view mirror OPTION is mandatory with the hydraulic trailer tow hook.
- Raise the hydraulic tow hook to release the hook lock 1 (Fig. G) by pressing the upper
part of switch 2 (Fig. H).
- Pull the knob 3 (Fig. I), retain this position and press the lower part of switch 2 (Fig. H)
to lower the tow hook.
- Release knob 3 (Fig. I).
- Couple or uncouple the trailer.
When uncoupling, make sure that the trailer is supported independently.
- Raise the trailer hook by pressing the upper part of switch 2 (Fig. H) and then lower the
hook to verify that the lock pin is in proper contact with hook 1 lock (Fig. G).
Never use the tow hook to raise the rear of the lift truck (when changing the rear
wheel for example).
J - ELECTRICAL CONNECTION (OPTION) (FIG. J)
- Connect the male plug to the female socket 1 on the lift truck and make sure the trailer
lights work properly.
K - C
ONNECTING THE BRAKING SYSTEM (OPTION) (FIG. J)
- Connect the brake hose to the provided brake unit 2 on the lift truck.
- Make sure the trailer brakes are working properly and test the effects of braking before
taking the trailer onto the public highway.
G
1
1
I
H
2
3
J
1
2
