C - COUPLING LADDER (OPTION)

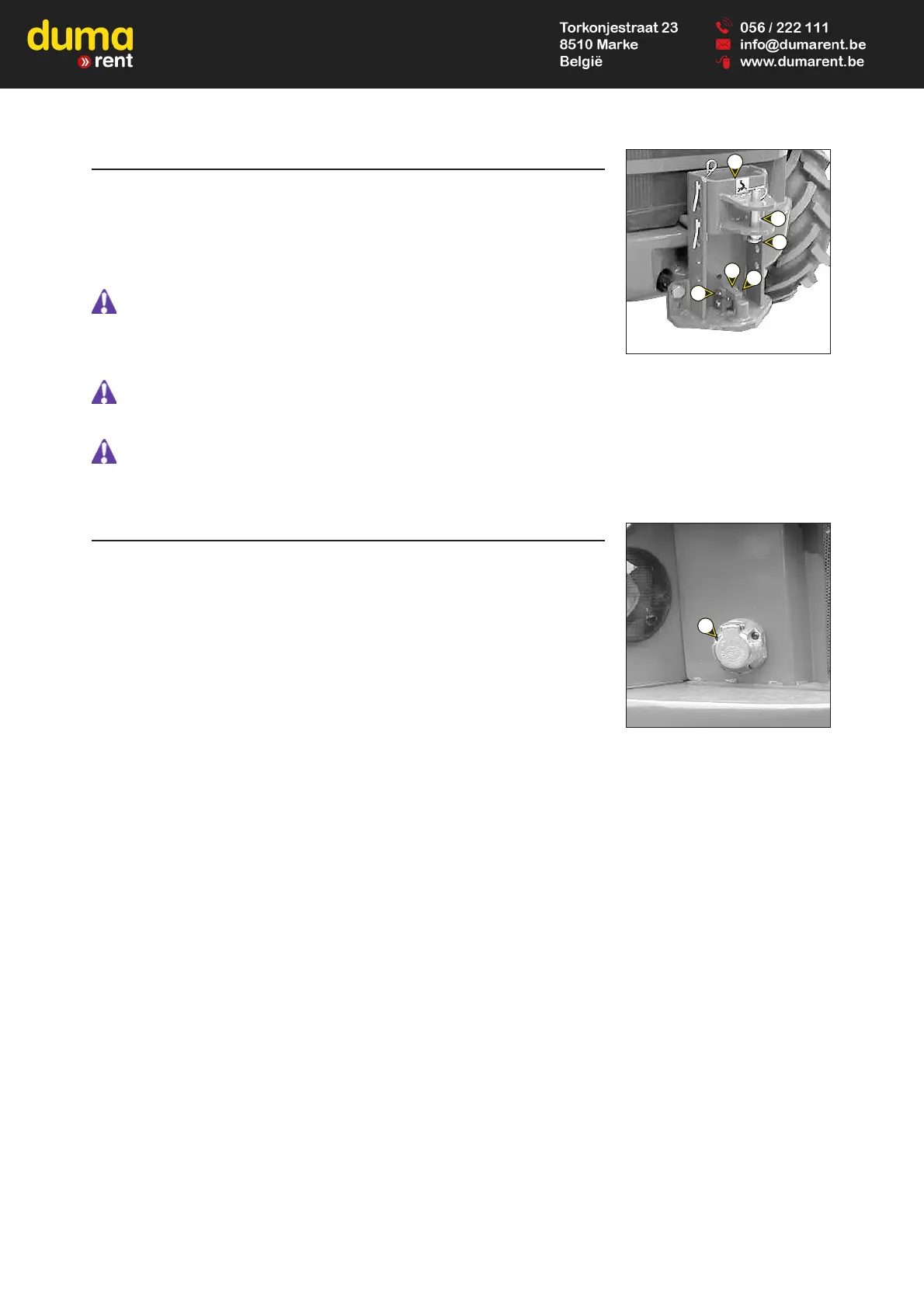

COUPLING AND UNCOUPLING THE TRAILER
- To couple the trailer, position the lift truck as close as possible to the trailer ring.
- Put the handbrake on and switch off the I.C. engine.
ON THE FIXED PIN
- Remove pin 1, remove rod 2 and raise latch 3.
- Insert or remove the trailer ring, lower latch 3 and refit rod 2.
Be careful not to get your fingers caught or crushed during this operation.
Do not forget to put clip 1 back in place.
When uncoupling, make sure that the trailer is supported independently.
ON THE COUPLING LADDER
- Set the coupling fitting 4 according to the height of the trailer ring.
Do not forget to put rods and clip back in place.
- Remove pin 5, lift the towing pin 6 and insert or remove the trailer ring.
Be careful not to get your fingers caught or crushed during this operation.
Do not forget to put clip 5 back in place.
When uncoupling, make sure that the trailer is supported independently.
F - ELECTRICAL CONNECTION (OPTION)
- Connect the male plug to the female socket 1 on the lift truck and make sure the trailer
lights work properly.
