12 - FUSE AND RELAY ACCESS PANEL
- Lift up the fuse and relay access panel 12.
13 - FUSE AND RELAY

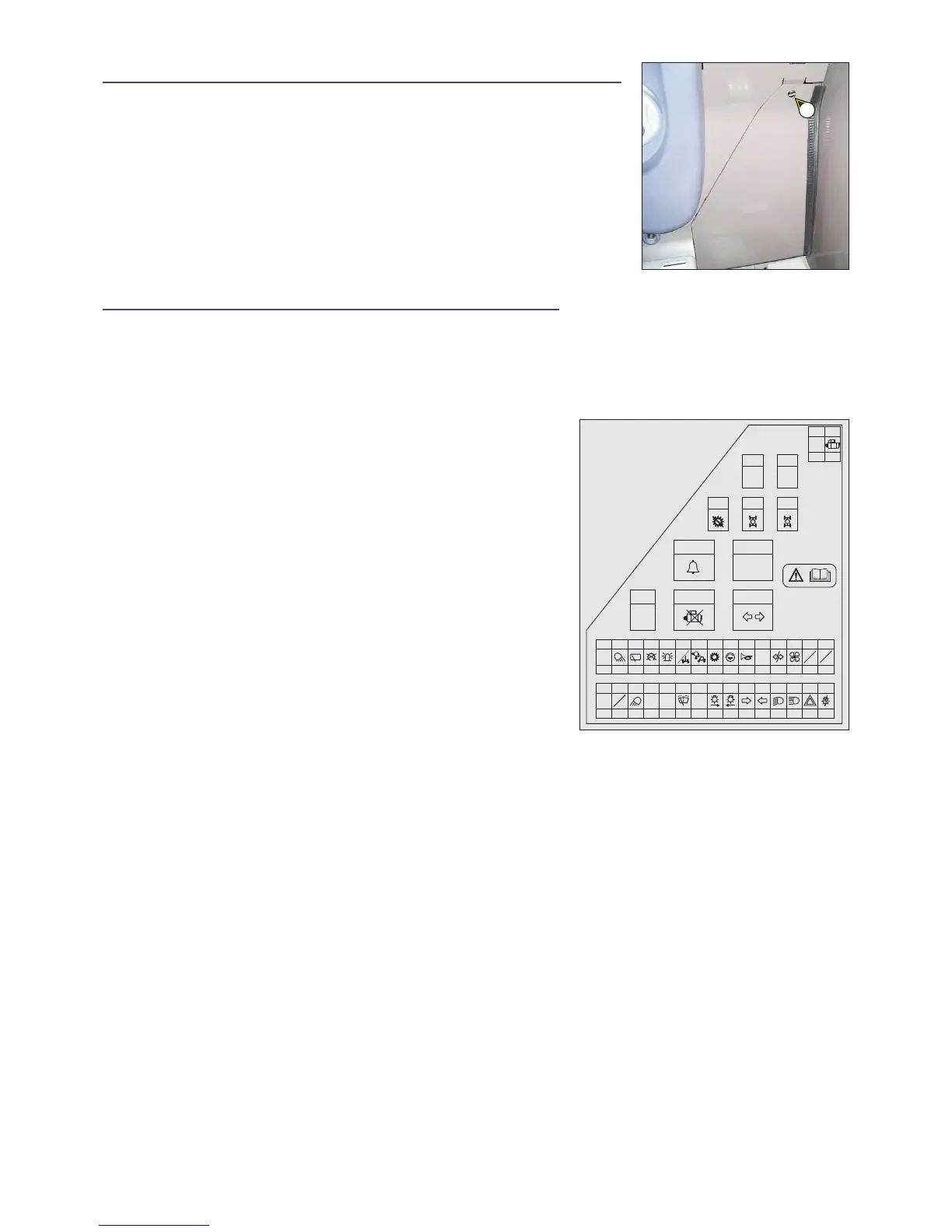

A sticker on the inside of the access panel gives a clear display of the use of
the components described below.
K0 - OPTION Air conditioning.
K1 - OPTION.
K2 - Transmission cut-off relay.
K3 - Reverse gear relay.
K4 - Forward gear relay..
K5 - Buzzer.
K6 - OPTION Electrovalve on jib head.
(B C E F G H)
- OPTION Electrical jib provision. (B C E F G H)
- OPTION Electrovalve on jib head + Attachment hydraulic locking device. (B C E F G H)
- OPTION . (A D)
K7 - Cutting off "simple" hydraulic movements. (A D)
- OPTION Cutting off "simple" hydraulic movements. (B C E F G H)
- OPTION Cutting off "aggravating" hydraulic movements.
K8 - Safety system starting switch relay
K9 - Flashing unit.
K14 - OPTION Diesel decongealant.
(B C E F G H)
K16 - Preheating I.C. engine relay.
NOTE: Replace a used fuse with a new fuse of the same quality and capacity.
Never reuse a repaired fuse.
F1 - (10A MAXI) - Safety stabilisers (7,5A).
(G H)
- OPTION . (A B C D E F)
F2 - (15A MAXI) - OPTION Working tail light (10A).
F3 - (10A MAXI) - Rear windscreen wiper (7,5A).
- OPTION Roof windscreen wiper (7,5A).
- OPTION Side windshield wiper (7,5A).
F4 - (10A MAXI) - Stop I.C. engine electrovalve (7,5A).
- OPTION.
F5 - (10A MAXI) - Flashing light (7,5A).
F6 - (7,5A MAXI) - Alignment of the wheels (5A).
F7 - (15A MAXI) - OPTION (10A).
- Cutting off "simple" hydraulic movements (10A).
(A D)
- OPTION Cutting off "simple" hydraulic movements (10A). (B C E F G H)
- OPTION Cutting off "aggravating" hydraulic movements (10A).
F8 - (15A MAXI) - Reversing gear (15A).
- Transmission cut-off (15A).
- Reverse buzzer alarm (15A).
- Reverse lights (15A).
F9 - (10A MAXI) - Control instruments panel (5A).
F10 - (15A MAXI) - Sound alarm (15A).
- Stop switch (15A).
F11 - (15A MAXI) - OPTION Jib head light (10A).
(B C E F G H)
- OPTION Blue front and rear working lights (10A). (B C E F)
- OPTION. (A D)
F12 - (10A MAXI) - Indicator power supply (10A).
F13 - (35A MAXI) - Heating (30A).
F14 - (25A MAXI) - OPTION.
F15 - (25A MAXI) - OPTION.
F16 - (10A MAXI) - OPTION Air conditioning (7,5A).
12
A: MT 728 Série C-E2
B: MT 732 Série C-E2
C: MT 732 Turbo Série C-E2
D: MT 928 Série C-E2
E: MT 932 Série C-E2
F: MT 932 Turbo Série C-E2
G: MT 1030 S Série 3-E2
H: MT 1030 S Turbo Série 3-E2
OPT.
OPT.
STOP
F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14
F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25
K8
K4
K6
K7
K5
K3
K9
K2
K1K0
25A max.25A max.30A10A max. 10A7.5A15A 7.5A 5A 10A 5A 15A 15A max.15A 10A
15A max.10A10A max.15A max.15A max.10A max. 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.OPT.OPT.OPT.
OPT. OPT.
OPT.OPT.
N°243543
20A3A
F31F32
LSU
DIST.
2 - 25
