2 - 48

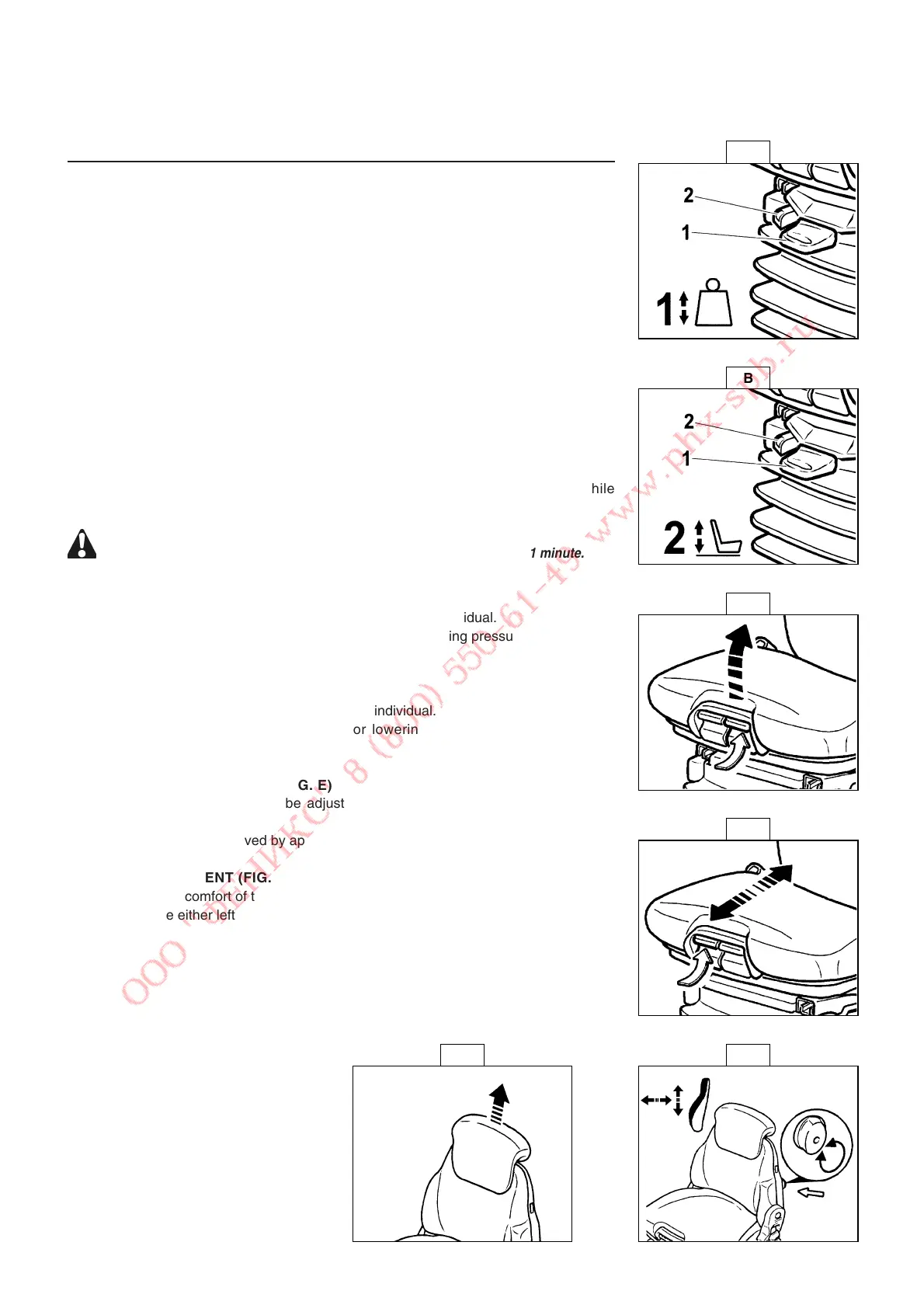

1 - PNEUMATIC DRIVER'S SEAT (OPTION)
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS
FOLLOWS.
WEIGHT AND SEAT HEIGHT ADJUSTMENT
WEIGHT ADJUSTMENT (FIG. A)
It is advised that you adjust the seat according to your weight when sitting.
- Switch on lift truck ignition.
- Push or pull lever 1 until green appears in display 2 indicating correct adjustment
according to your weight.
NOTE : To avoid any health problems, it is recommended that the weight should be
checked and adjusted before starting up the lift truck.
SEAT HEIGHT ADJUSTMENT (FIG. B)
When weight adjustment has been carried out, you can then modify seat height.
- Keep the ignition switched on.
- Push or pull lever 1 until green appears and adjust the height of the seat while
checking that the green in display 2 remains visible.
To avoid causing any damage, do not activate the compressor for over 1 minute.
SEAT BACK-REST ANGLE ADJUSTMENT (FIG. C)
The back-rest angle of the seat may be adjusted to suit the individual.
- Press the left-hand button while pushing on the seat or relaxing pressure on the seat to
find a comfortable position.
SEAT DEPTH ADJUSTMENT (FIG. D)
The depth of the seat may be adjusted to suit the individual.
- Press the right-hand button while raising or lowering the seat to find the desired
position.
EXTENDING THE HEAD-REST (FIG. E)
- The height of the back-rest can be adjusted by pulling it upwards (The notches will
click) up to the stop.
- The head-rest can be removed by applying sufficient pressure to pull it off the stop.
LUMBAR ADJUSTMENT (FIG. F)
This increases the comfort of the seat and the driver’s freedom of movement.
- Turn the handle either left or right to adjust the height or depth of the lumbar support.
A
B
C
D
E F
