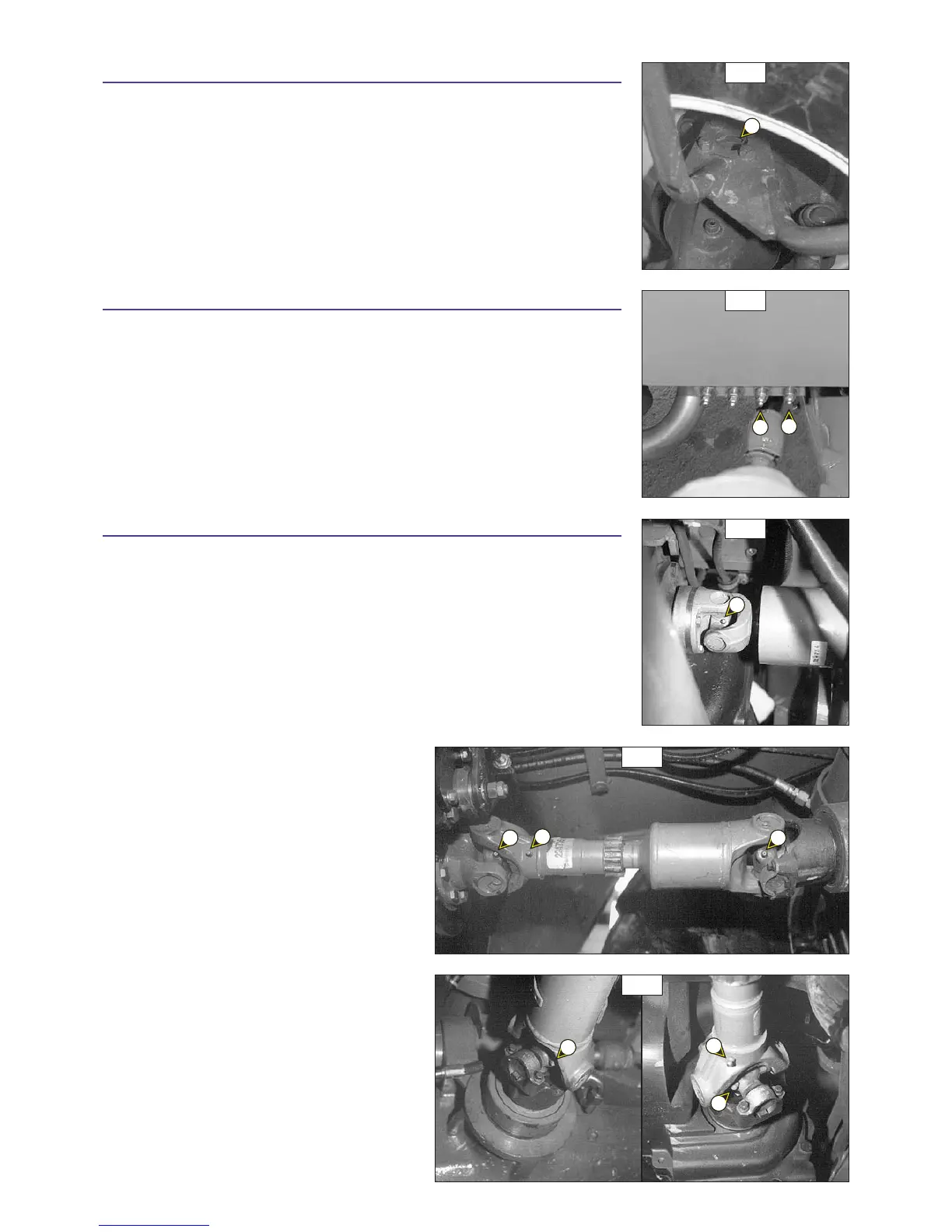

B10 - FRONT AND REAR WHEELS REDUCERS PIVOTS
GREASE
Clean and lubricate the points 1 (8 lubricators) (fig. B10) with grease (see: 3 -
MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus of grease.
B11 - REAR AXLE OSCILLATION
GREASE
Clean and lubricate the points 1 (2 lubricators) (fig. B11) with grease (see: 3 -
MAINTENANCE: LUBRICANTS AND FUEL) and remove the surplus of grease.
B12 - TRANSMISSION UNIVERSAL JOINT
GREASE
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL) and remove the surplus of grease.
1 - Lubricators of the universal joint I.C. engine/Angle gear box (2 lubricators) (fig.
B12/1).
2 - Lubricators of the universal joint Transmission/Front axle (3 lubricators) (fig.
B12/2).
3 - Lubricators of the universal joint Transmission/Rear axle (3 lubricators) (fig.
B12/3).
B12/1
B12/3
B12/2
1
2
2 2
3
3
3
B11
1
1
B10
1
3 - 18
