Manitou MT 928 User Manual

E5 - ANGLE GEAR BOX OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped, the angle gear box oil still
warm.
- Place a container under drain plug 1 (fig. E5/1) and unscrew the plug.
- Remove dipstick 2 (fig. E5/2) and unscrew filler cap 3 (fig. E5/2) in order to ensure that
the oil is drained properly.
Dispose the drain oil in an ecological manner.
- Refit and tighten drain plug 1 (fig. E5/1) (tightening torque 18 ft/lb).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by filler port 3 (fig. E5/2)
and refit the filler cap.
- Check the correct level between the MINI and MAX. marks on dipstick 2 (fig. E5/2).
- Check for any possible leaks at the drain plug.
E6 - HYDRAULIC OIL
DRAIN
E7 - SUCTION STRAINER FOR HYDRAULIC OIL TANK
CLEAN
E8 - FILTER CAP FOR HYDRAULIC OIL TANK
CHANGE
Place the lift truck on level ground with the I.C. engine stopped and telescope jib retracted
and lowered as far as possible.
Before any intervention, thoroughly clean the area surrounding the drain plugs and the suction
cover on the hydraulic tank.
DRAINING THE OIL
- Place a container under drain plug 1 (fig. E6/1) and unscrew the plug.
- Remove filler cap 2 (fig. E6/2) in order to ensure that the oil is drained properly.
Dispose of the drain oil in an ecological manner.
CLEANING THE STRAINER
- Remove suction cover 3 (fig. E6/3).
- Remove and clean the strainer using a compressed air jet, check its condition and
replace if necessary (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Refit the strainer and tighten the suction cover 3 (fig. E6/3) (tightening torque 60 ft/lb)
making sure the seal is in the correct position.
FILLING UP THE OIL
-
Clean and refit drain plugs 1 (fig. E6/1) (tightening torque 25 ft/lb ).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by filler port 4 (fig. E6/2).
Use a clean container and funnel and clean the underside of the oil drum before filling.
- Observe the oil level on dipstick 5 (fig. E6/4), the oil level should be at the level of
the red point.
- Check for any possible leaks at the drain plugs.
- Replace filler plug 2 (fig. E6/2) with a new filler plug (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS).

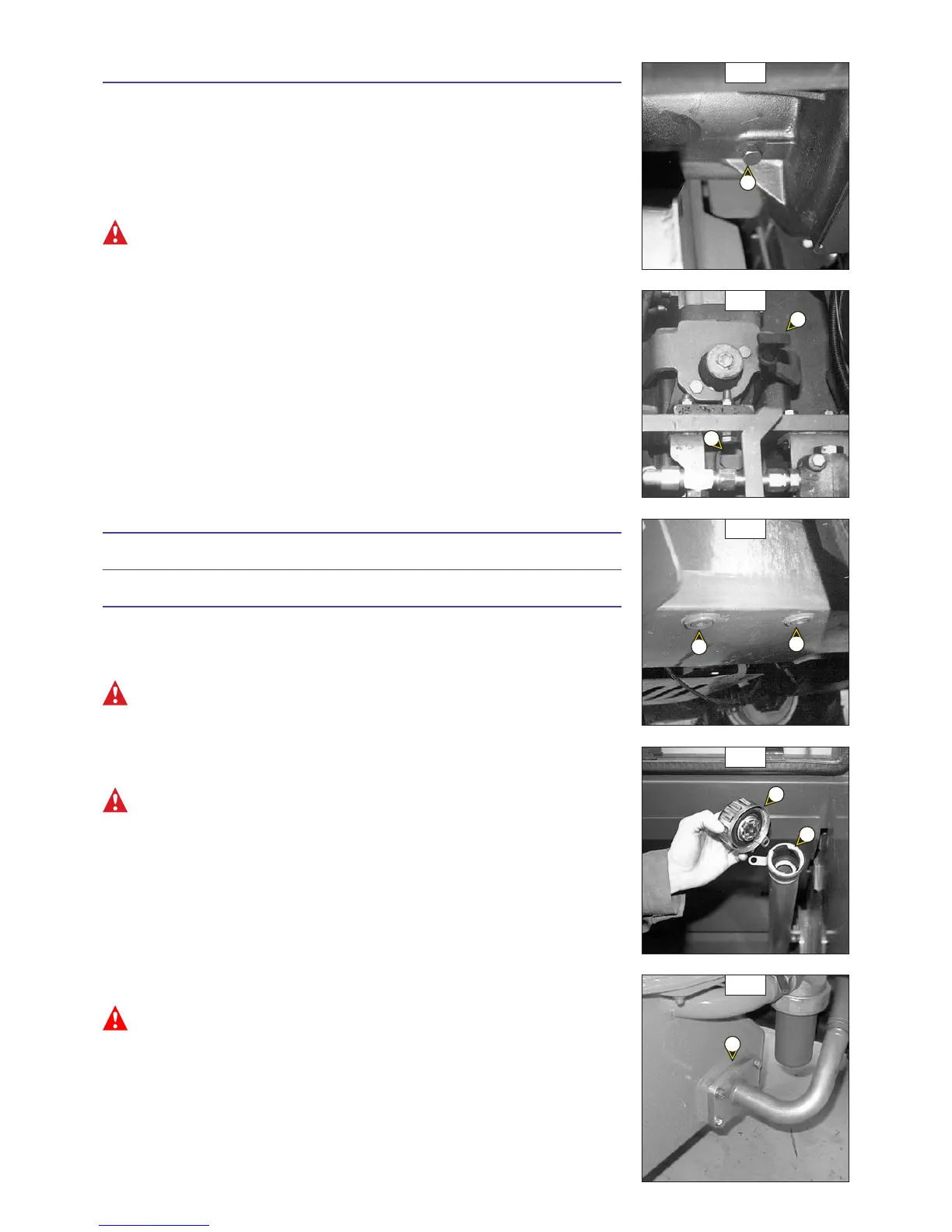

E5/1
E5/2
E6/1
E6/2
E6/3
1
2
1
1
2
4
3
3
3 - 32
