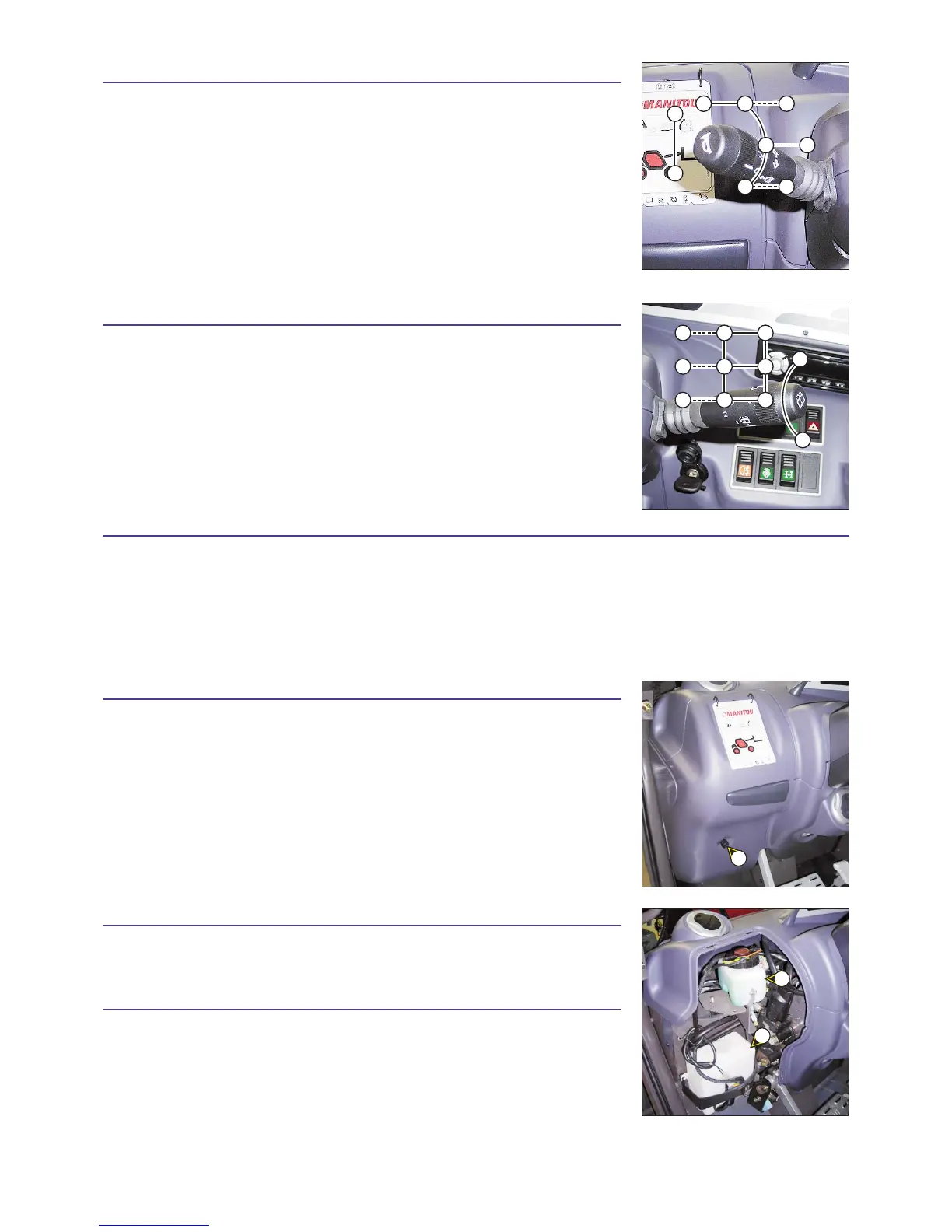

6 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE: The positions D - E - F - G can be carried out without the ignition being on.
7 - FRONT AND REAR WINDSCREEN WIPER SWITCH
This switch controls the operation of the front and rear windscreen wipers.
A - Front windscreen wiper off.
B - Front windscreen wiper low speed setting.
C - Front windscreen wiper high speed setting.
D - Front windscreen wiper intermittent setting.
E - Rear windscreen wiper off.
F - Rear windscreen wiper on.
NOTE: These functions will only work when the ignition is switched on.
8 - IGNITION SWITCH
The key switch has five positions:
P - Ignition off, parking position.
O - Ignition switched off and I.C. engine stopped.
I - Ignition on.
II - Heating.
III - The I.C. engine starts, return to position i as soon as the key is released.
9 - BRAKING OIL TANK AND WINDSCREEN WASHER ACCESS PANEL
- Loosen screw 1 and lift up the brake fluid and windscreen washer access panel.
10 - BRAKING OIL TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
11 - WINDSCREEN WASHER TANK
See: 3 - MAINTENANCE: B - EVERY 50 HOURS SERVICE.
E
F
A
C
B
D A
D C
D B
1
11
10
B
C
G
F
A
GD
GE
2 - 24
