MT 1030 S Série 3-E2
MT 1030 S Turbo Série 3-E2
LIFTING THE LOAD
- Move lever A or B backwards to lift.
- Move lever A or B forwards to lower.
TILTING THE CARRIAGE
- Move the lever B to the left to excavate.
- Move the lever B to the right to tip.
TELESCOPING
- Move lever A to the right to extend.
- Move lever A to the left to retract.
NOTE: When completely retracting the telescopes, keep
operating the control until the telescopes are fully
retracted.
LEFT STABILIZER
- Move lever C forwards to lowering.
- Move lever C backwards for lifting.
RIGHT STABILIZER
- Move lever D forwards for lowering.
- Move lever D backwards for lifting.
NOTE: The stabilizers can only be raised after the jib has been retracted.
ATTACHMENT
- Raise lever E and turn to the left or right.
TRANSMISSION CUT-OFF
- Button F (see: 2 - DESCRIPTION: 5 - SWITCH PANEL).
REVERSING GEAR
- Button G (see: 2 - DESCRIPTION: 17 - REVERSING GEAR).
21 - LOAD CHART FILE
This file includes the description of the hydraulic controls and the load charts of the attachments used on the lift truck.

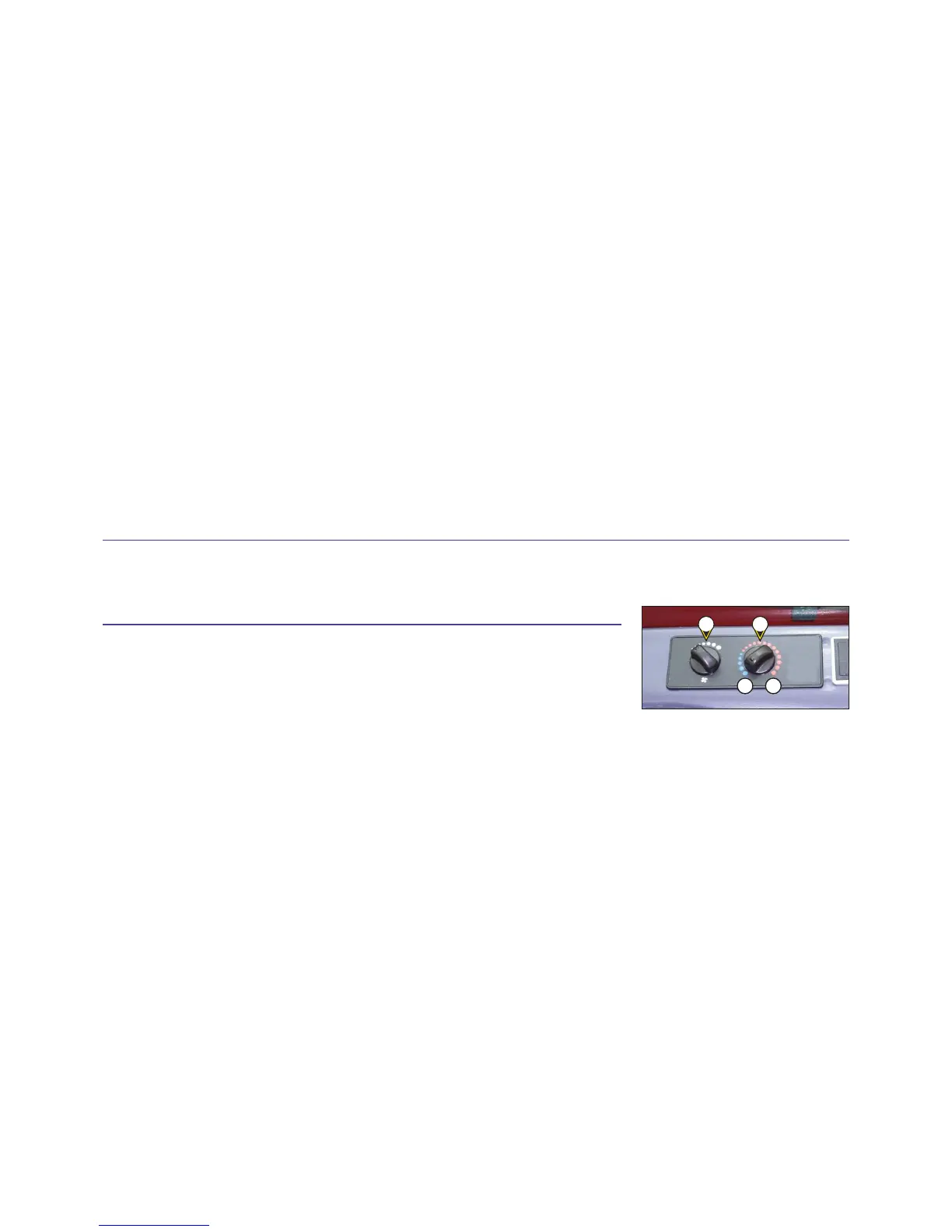

22 - HEATER CONTROL
A - HEATING FAN CONTROL
This 3-speed control regulates warm or cold air through the heating ventilators.
B - HEATING TEMPERATURE CONTROL
Allows the temperature inside the cab to be adjusted.
B1 - With the valve closed, the fan delivers fresh air.
B2 - With the valve opened completely, the fan delivers warm air.
The intermediate positions allow the temperature to be adjusted.
B2B1
