B4 - JIB
GREASE
To be carried out weekly, if the lift truck has been operated for less than 50 hours during
the week.
In the event of prolonged use in an extremely dusty or oxidising atmosphere, reduce this
interval to 10 working hours or every day.
Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL) and remove the surplus of grease.

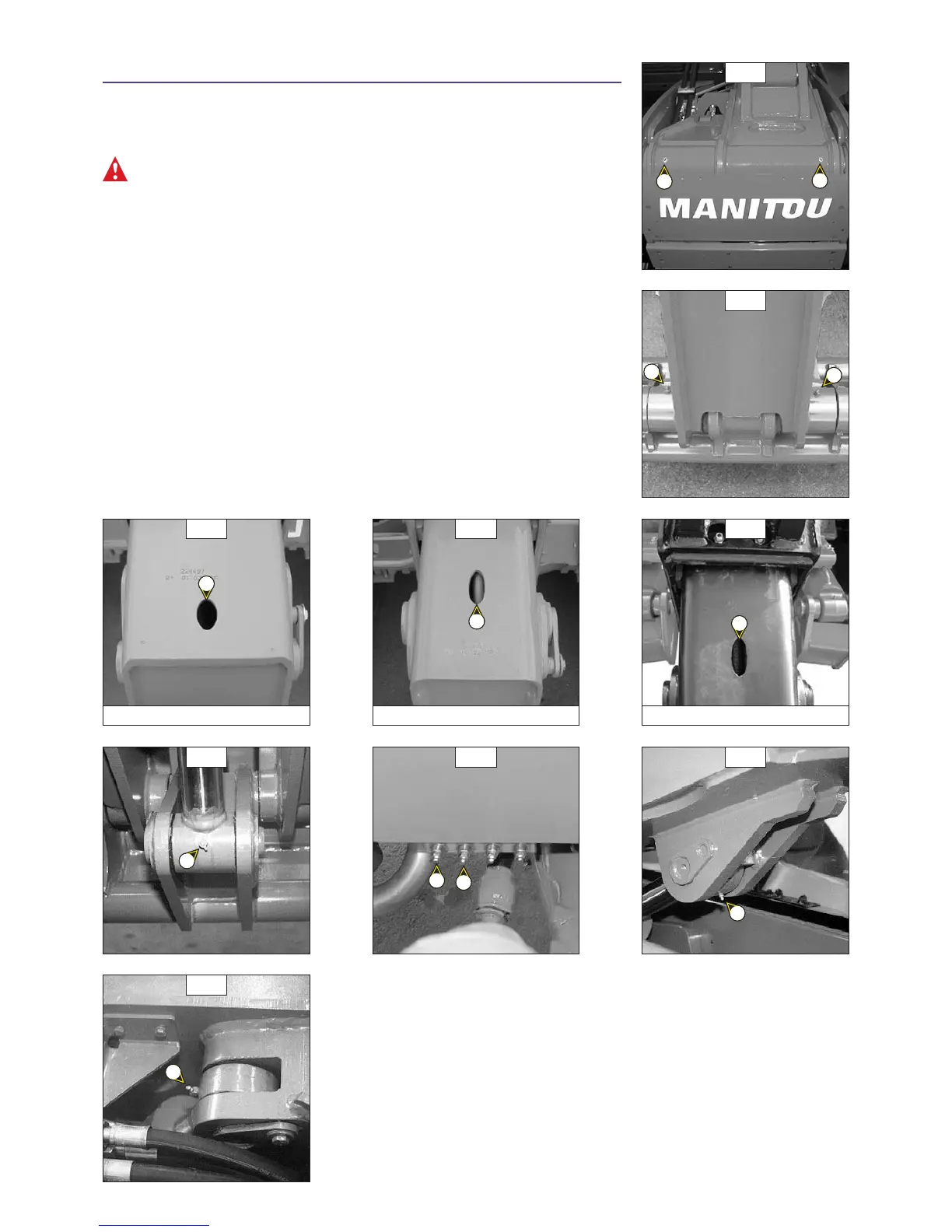

1 - Lubricators of the jib axle (2 lubricators) (fig. B4/1).
2 - Lubricators of the carriage axle (2 lubricators) (fig. B4/2).
3 - Lubricator of the tilt cylinder foot axle (1 lubricator) (fig. B4/3).
4 - Lubricator of the tilt cylinder head axle (1 lubricator) (fig. B4/4).
5 - Lubricator of the lifting cylinder foot axle (1 lubricator) (fig. B4/5).
6 - Lubricator of the lifting cylinder head axle (1 lubricator) (fig. B4/6).
7 - Lubricator of the compensation cylinder foot axle (1 lubricator) (fig. B4/5).
8 - Lubricator of the compensation cylinder head axle (1 lubricator) (fig. B4/7).
B4/1
B4/2
B4/4
1
1
2
2
4
B4/3
B4/5
3
5
7
B4/6
6
B4/7
8
MT 1030 S ...
B4/3
3
MT 728 ... / MT 732 ...
B4/3
MT 928 ... / MT 932 ...
3
3 - 15
