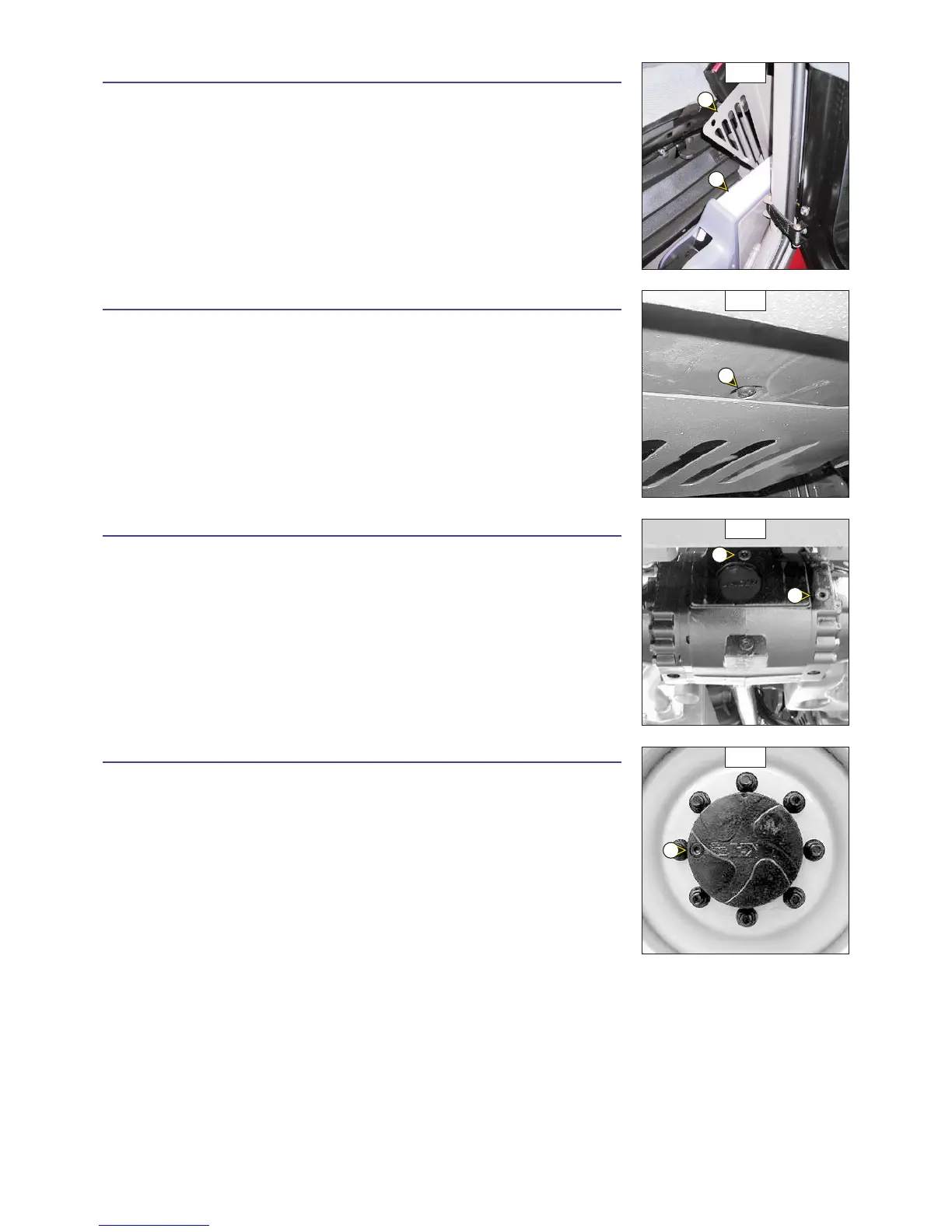

C6 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CHANGE
- Lift up protective casing 1 (fig. C6).
- Lift out cabin ventilation filter 2 (fig. C6) and fit new replacement filter (see: 3 -
MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Refit the protective casing.
C7 - HEATING BLOCK NON-RETURN VALVE
CLEAN
- Since non-return valve 1 (fig. C7) is located under the cab, it is possible for it to become
obstructed with spattered mud for example. Clean if necessary.
C8 - FRONT AND REAR AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C8). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the filler port 2
(fig. C8).
- Replace and tighten the level plug 1 (fig. C8) (tightening torque 30 ft/lb).
- Repeat this operation for the rear axle differential.
C9 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (fig. C9) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C9) (tightening torque 30 ft/lb).
- Repeat the same operation on each rear wheel reducer.
C7
C8
C9
1
2
1
1
C6
1
2
3 - 22
