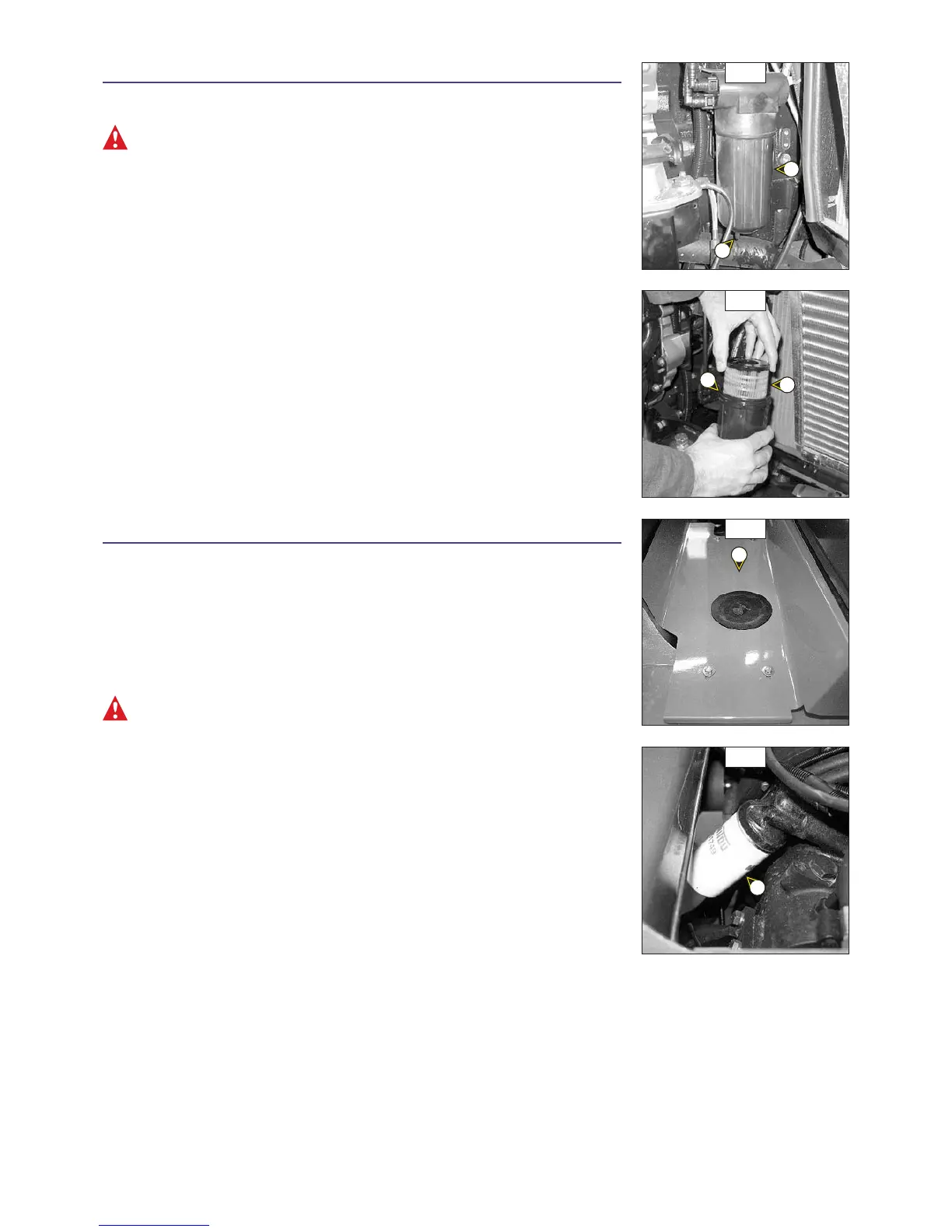

D5 - FUEL FILTER CARTRIDGE
CHANGE
Make sure the electrical contact on the lift truck is cut, otherwise fuel will be released if the
lift pump is on.
- Open the I.C. engine bonnet.
- Carefully clean the outside of the filter and its holder, to prevent dust from getting into
the system.
- Place a container under the filter and drain it via drain plug 1 (fig. D5/1).
- Loosen the body of filter 2 (fig. D5/1).
- Remove the filter cartridge by pressing the cartridge 3 (fig. D5/2) down against the
pressure of the spring and turn it to the left to extract it.
- Insert a new cartridge (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS), by
pressing the cartridge 3 (fig. D5/2) down against the pressure of the spring and turn it
to the right to lock it into the body of the filter.
- Place the new seal 4 (fig. D5/2) onto the body of the filter and lubricate the contact
surface using clean engine oil.
- Remount the body of the filter onto its holder, hand-tighten it only and lock it with a
quarter-turn.
- Close drain plug 1 (fig. D5/1) and remove the container.
- Before starting the I.C. engine, leave the ignition on for three minutes on the lift truck, to
give the lift pump time to release air from the filter.
- Start up the I.C. engine and make sure there is no leakage.
- If necessary, bleed the fuel circuit (see: 3 - MAINTENANCE: G1 - FUEL SYSTEM).
D6 - TRANSMISSION OIL FILTER
CHANGE
- Remove the cover plate 1 (fig. D6/1).
- Unscrew and discard the transmission oil filter 2 (fig. D6/2).
- Carefully clean the filter head with a clean, lint-free cloth.
- Slightly lubricate the new seal and fit the seal on the filter.
- Fill up the new transmission oil filter (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND
BELTS) with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Refit the filter, making sure that the seal is correctly positioned and tightened.
Tighten the transmission oil filter by hand pressure only and lock the filter in place by a quarter
turn.
- Put back the cover plate 1 (fig. D6/1).
D6/1
1
D6/2
2
D5/1
D5/2
1
2
3
4
3 - 26
