Manitou MT 932 Turbo User Manual

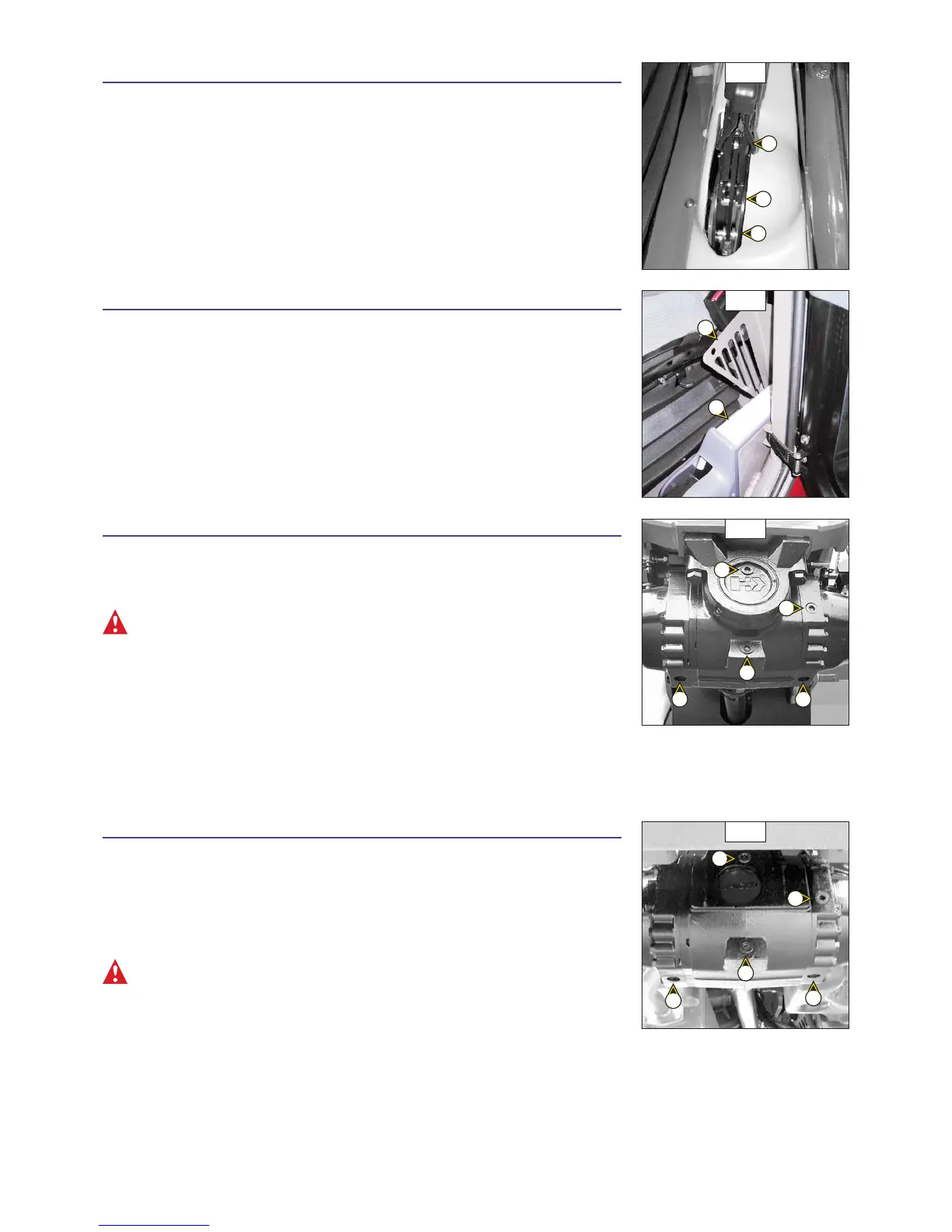

D9 - PARKING BRAKE LEVER MECHANISM
GREASE
- Clean and grease articulation axles 1 (fig. D9) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL).
D10 - CAB VENTILATION FILTER
CLEAN
- Lift up protective casing 1 (fig. D10).
- Lift out cabin ventilation filter 2 (fig. D10).
- Clean the filter with a compressed air jet.
- Check its condition and change if necessary (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS).
- Refit the filter and protective casing.
D11 - FRONT AXLE DIFFERENTIAL OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped and the differential oil still
warm.
Dispose the drain oil in an ecological manner.
- Place a container under drain plugs 1 (fig. D11) and unscrew the plugs.
- Remove level plug 2 (fig. D11) and filler plug 3 (fig. D11) in order to ensure that the oil
is drained properly.
- Refit and tighten drain plugs 1 (fig. D11) (tightening torque 30 ft/lb).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by filler port 3 (fig. D11).
- The level is correct when the oil level is flush with the edge of port 2 (fig. D11).
- Check for any possible leaks at the drain plugs.
- Refit and tighten level plug 2 (fig. D11) (tightening torque 30 ft/lb) and filler plug 3 (fig. D11) (tightening torque 30 ft/lb).
D12 - REAR AXLE DIFFERENTIAL OIL
DRAIN
MT 732 Série C-E2 / MT 732 Turbo Série C-E2
MT 932 Série C-E2 / MT 932 Turbo Série C-E2
MT 1030 S Série 3-E2 / MT 1030 S Turbo Série 3-E2
Place the lift truck on level ground with the I.C. engine stopped and the differential oil still
warm.
Dispose the drain oil in an ecological manner.
- Place a container under drain plugs 1 (fig. D12) and unscrew the plugs.
- Remove level plug 2 (fig. D12) and filler plug 3 (fig. D12) in order to ensure that the oil
is drained properly.
- Refit and tighten drain plugs 1 (fig. D12) (tightening torque 30 ft/lb).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by filler port 3 (fig. D12).
- The level is correct when the oil level is flush with the edge of port 2 (fig. D12).
- Check for any possible leaks at the drain plugs.
- Refit and tighten level plug 2 (fig. D12) (tightening torque 30 ft/lb) and filler plug 3 (fig. D12) (tightening torque 30 ft/lb).
D9
1
1
1
D12
3
2
1
1
1
D11
3
2
1
1
1
D10
1
2
3 - 28
