G5 - LIFT TRUCK ON A PLATFORM
TRANSPORT
MT 732 Série C-E2
MT 732 Turbo Série C-E2
MT 932 Série C-E2
MT 932 Turbo Série C-E2
MT 1030 S Série 3-E2
MT 1030 S Turbo Série 3-E2
Ensure that the safety instructions connected to the platform are respected before the loading
of the lift truck and that the driver of the means of transport is informed about the dimensions
and the weight of the lift truck (see: 2 - DESCRIPTION: CHARACTERISTICS).
Ensure that the platform has got dimensions and a load capacity sufficient for transporting the
lift truck. Check also the pressure on the contact surface allowable for the platform in
connection with the lift truck.
For lift trucks equipped with a turbo-charged I.C. engine, block off the exhaust outlet to avoid
rotation of the turbo shaft without lubrication when transporting the vehicle.
LOAD THE LIFT TRUCK
- Block the wheels of the platform.
- Fix the loading ramps so that you obtain an angle as little as possible to lift the lift truck.
- Load the lift truck parallel to the platform.
- Stop the lift truck (see: 1 - OPERATING AND SAFETY INSTRUCTIONS: DRIVING
INSTRUCTIONS UNLADEN AND LADEN).
STOW THE LIFT TRUCK

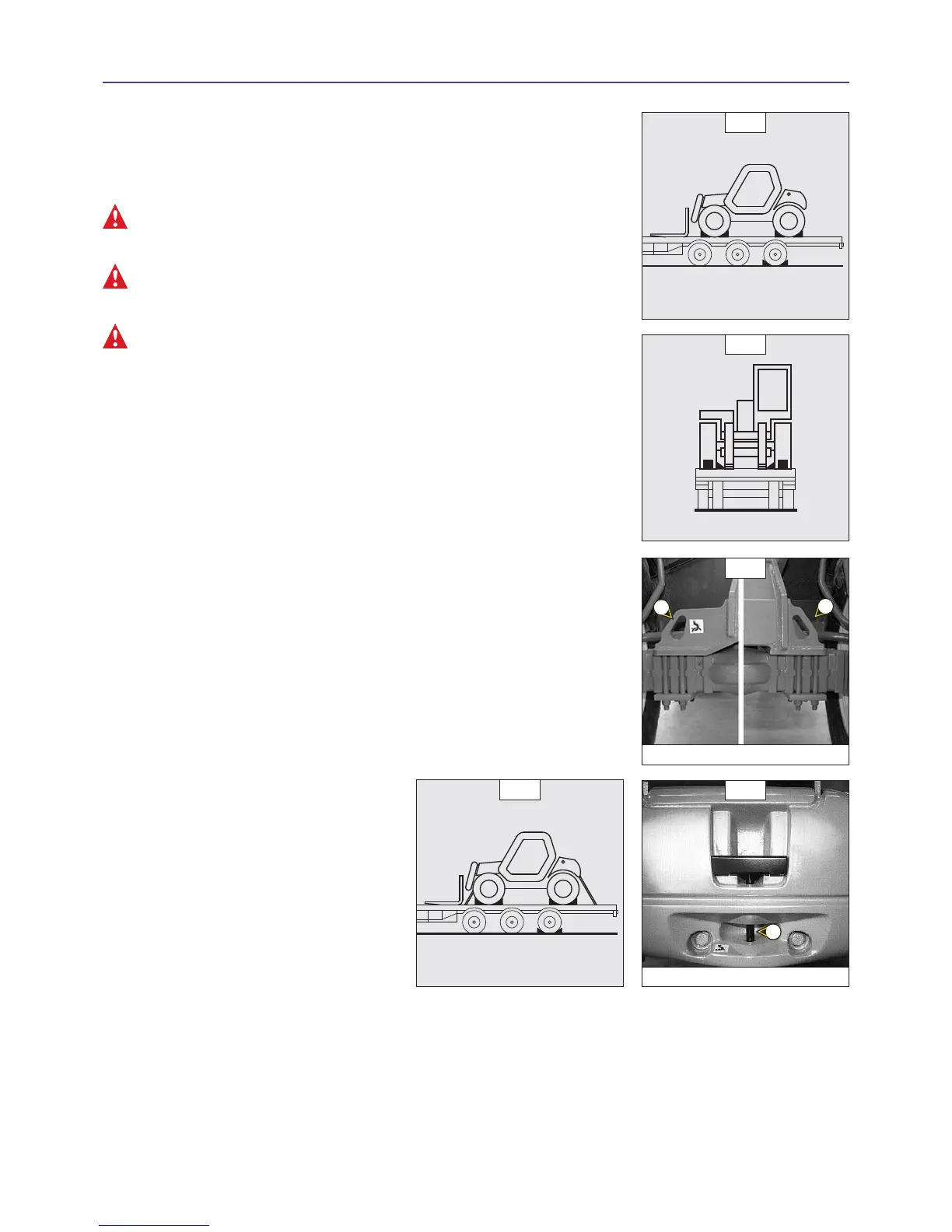

- Fix the chocks to the platform at the front and at the back of each tyre (fig. G5/1).
- Fix also the chocks to the platform in the inside of each tyre (fig. G5/2).
- Stow the lift truck on the platform with enough resisting ropes. At the front of the lift
truck, on the fastening points 1 (fig. G5/3) and at the back, on the towing pin 2 (fig.
G5/4).
- Tighten the ropes (fig. G5/5).
G5/2
G5/5
G5/4
2
MT 732 ... / MT 932 ...
G5/3
1
1
MT 732 ... / MT 932 ...
3 - 40
G5/1
