2 - 41

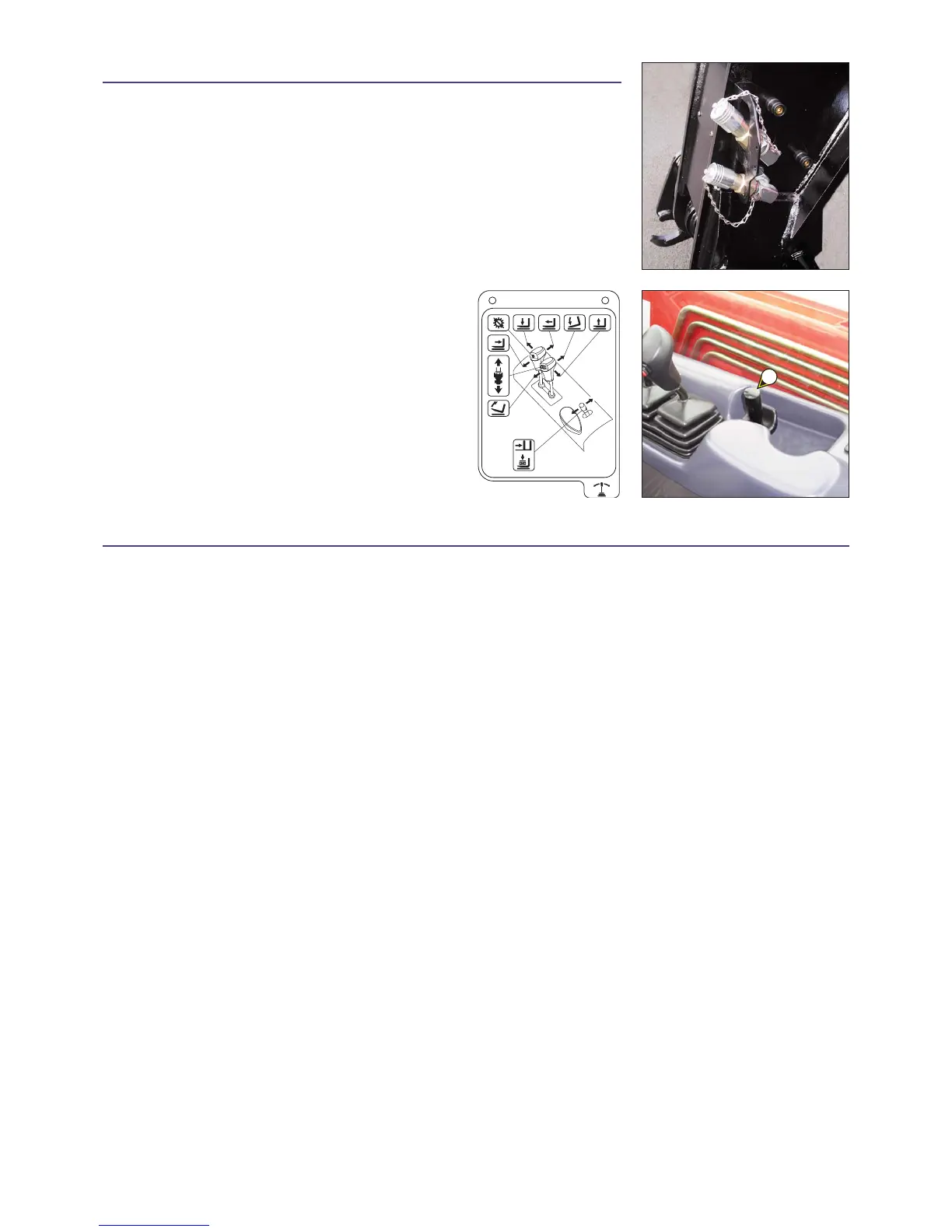

18 - ATTACHMENT CIRCUIT WITH QUICK-RELEASE COUPLER
MT 728 Série C-E2
MT 928 Série C-E2
Enables the use of a hydraulic attachment.
FUNCTIONING
- Raise lever 1 and turn to the left or right.
19 - N/A
MT 1030 S Série 3-E2
MT 1030 S Turbo Série 3-E2
The single side-shift carriage (TSDL) is only compatible with the following attachments:
• floating fork carriage (TFF)
• tilting fork carriage (PFB)
• loading bucket (CBR)
• concrete bucket (BB, BBG)
• spout bucket (GL)
• crane jib and crane jib with winch (P, PT, PO, PC)
• winch (H)
It is prohibited to use any other attachments on the TSDL.
If it is being used with a loading bucket (CBR), the single side-shift carriage MUST be centred and no
side-shift operations performed.
WHIT COUPLER ON JIB HEAD
SINGLE SIDE-SHIFT CARRIAGE
- Put the valve in position A, and used hydraulic control of the attachment of the lift truck.
ATTACHMENTS
- Put the valve in position B, and used hydraulic control of the attachment of the lift truck.
