C - TEST SWITCH (FIG. A)
Press the switch to check at any time the correct functioning of the load status indicator.
- Correct operation : All leds and the sound alarm function continuously.
- Faulty operation : All leds and the sound alarm function intermittently (Stop the lift truck
and consult your dealer, never attempt a repair yourself).
D - STRAIN GAUGE (FIG. B)
Disassembly or adjustment of the strain gauge is prohibited, this must only be done
by specially trained personnel, consult your dealer.

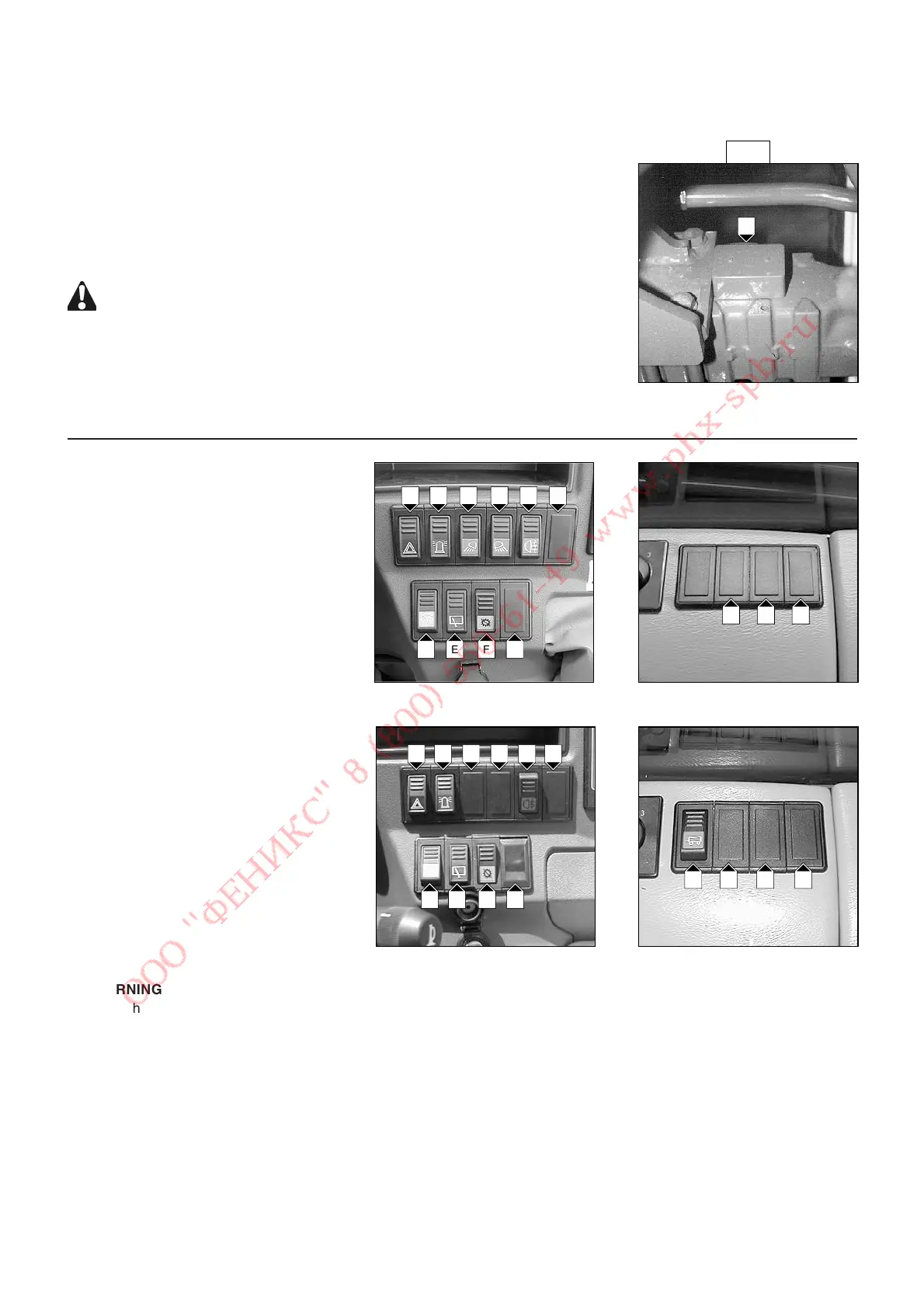

5 - SWITCH PANEL
MLT 629/730 Série A
MLT 629/730 Turbo Série A
MLT 629/633/730 -120 LS Série A
MLT 633/730 LS Turbo Série A
MT 732/932 Série A
MT 732 Turbo Série A
MLT 633/730 -120 LS POWERSHIFT Série A
MLT 730 Turbo POWERSHIFT Série A
A - WARNING LIGHTS
This switch enables the L.H. and R.H. Indicators to be switched on simultaneously, with the ignition off. The signal light
indicates that the switch is being used.
B - FLASHING LIGHT
C - REAR FOG LIGHT
D - FRONT WINDSCREEN WIPER AND WINDSCREEN WASHER
This two position switch, when set on the "down" position and simultaneously pressed, allows the windscreen-washer and the
windscreen wiper to be operated, and when set on the "up" position, the windscreen wiper to be operated.
E - REAR WINDSCREEN WIPER + ROOF WIPER OPTION
A B I J/K C
L/P
D E F K
M N O
A B I J/K C
L/P
D E F G
B
H M N O
