106 Part Number: 000015431 Rev01 5/19

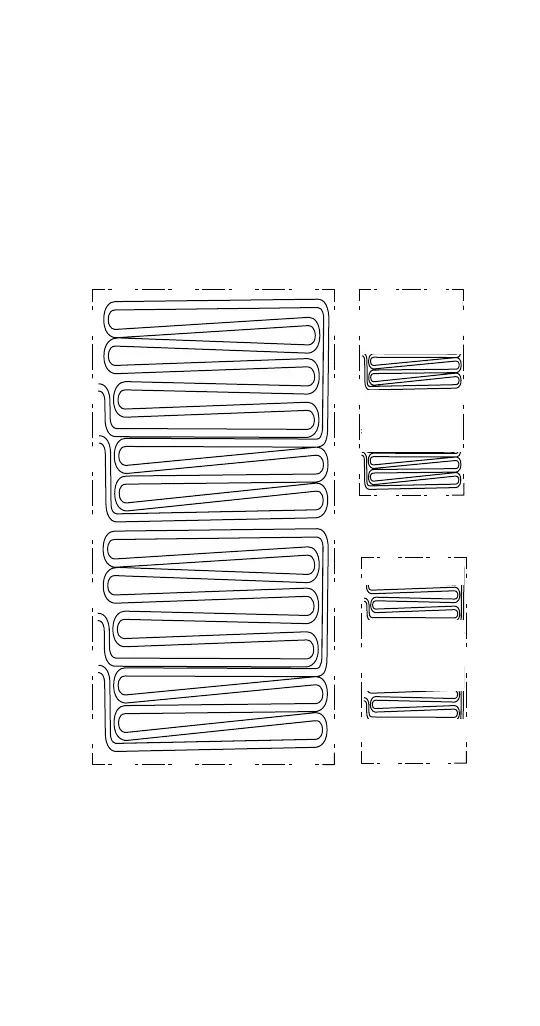

One Evaporator, Two TXV Models
Tubing routing for one evaporator with two TXV’s is
different. The evaporator has two inlets and outlets. Fill
pattern varies depending on which circuit is affected.
Extremely Thin at the Evaporator Outlet will first be visible
either 1/4 or 3/4 of the way down the evaporator.
Extremely Thin at the Evaporator Inlet will show at
the bottom of the evaporator or 1/2 of the way down
depending on the circuit affected.
Outlet
Inlet
Thin at Inlet
Thin at Outlet
ICE
ICE
ICE
ICE
ICE
Outlet
Inlet
To Next Page
