CONTROLS AND OPERATING PROCEDURES OPERATOR MANUAL NBT60L
3-12 Published 09-06-2019 Control # 691-01

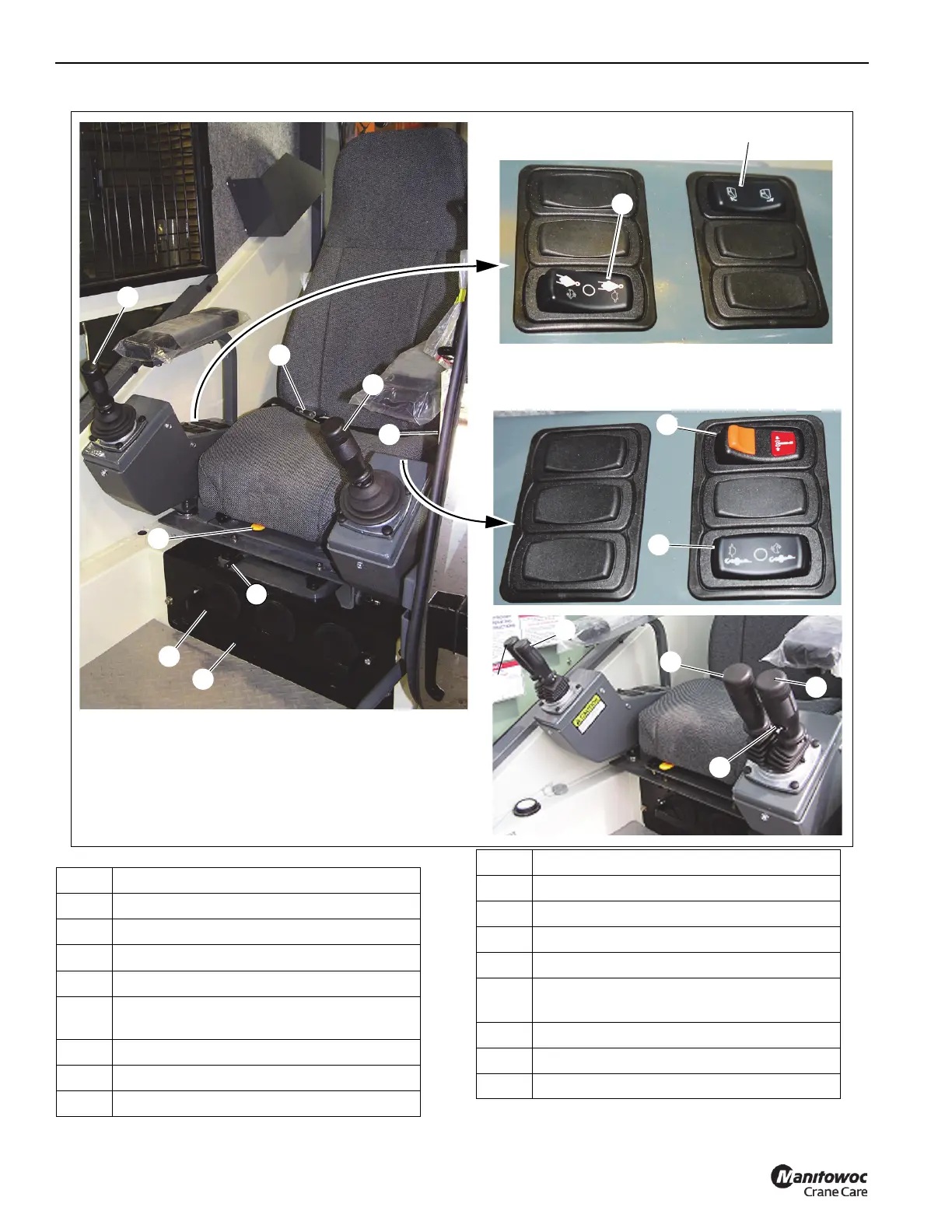

FIGURE 3-5
29
28
27
26
31
10
34
7459-22
9599
33
39
38
37
36
35
7459-23
32
25
Item Description
25 Dual Axis Controller- Boom Lift/Main Hoist
26 Dual Axis Controller- Swing/Tele/ Aux Hoist
27 Seat Belt
28 Seat Back Adjustment
29
Seat/Controls Assembly Slide Adjustment
Lever
30 Main Hoist Speed Switch-HI/OFF/LOW
31 Auxiliary Hoist Speed Switch-HI/OFF/LOW
32 Swing Brake Control Switch
33 Horn Button
34 AC/Heater Climate Control Unit
35 Single Axis Controller-Boom Lift Lever
36 Single Axis Controller- Main Hoist Lever
37
Single Axis Controller-Boom Telescope/
Auxiliary Hoist Lever
38 Single Axis Controller-Swing Control Lever
39 Seat (only) Slide Adjustment Lever
40 360° Swing Lock Pedal (Optional)
Item Description
