RATED CAPACITY LIMITER NBT60L OPERATOR MANUAL
7-16 Published 09-06-2019 Control # 691-01
• ESC to return to previous screen with no inputs.

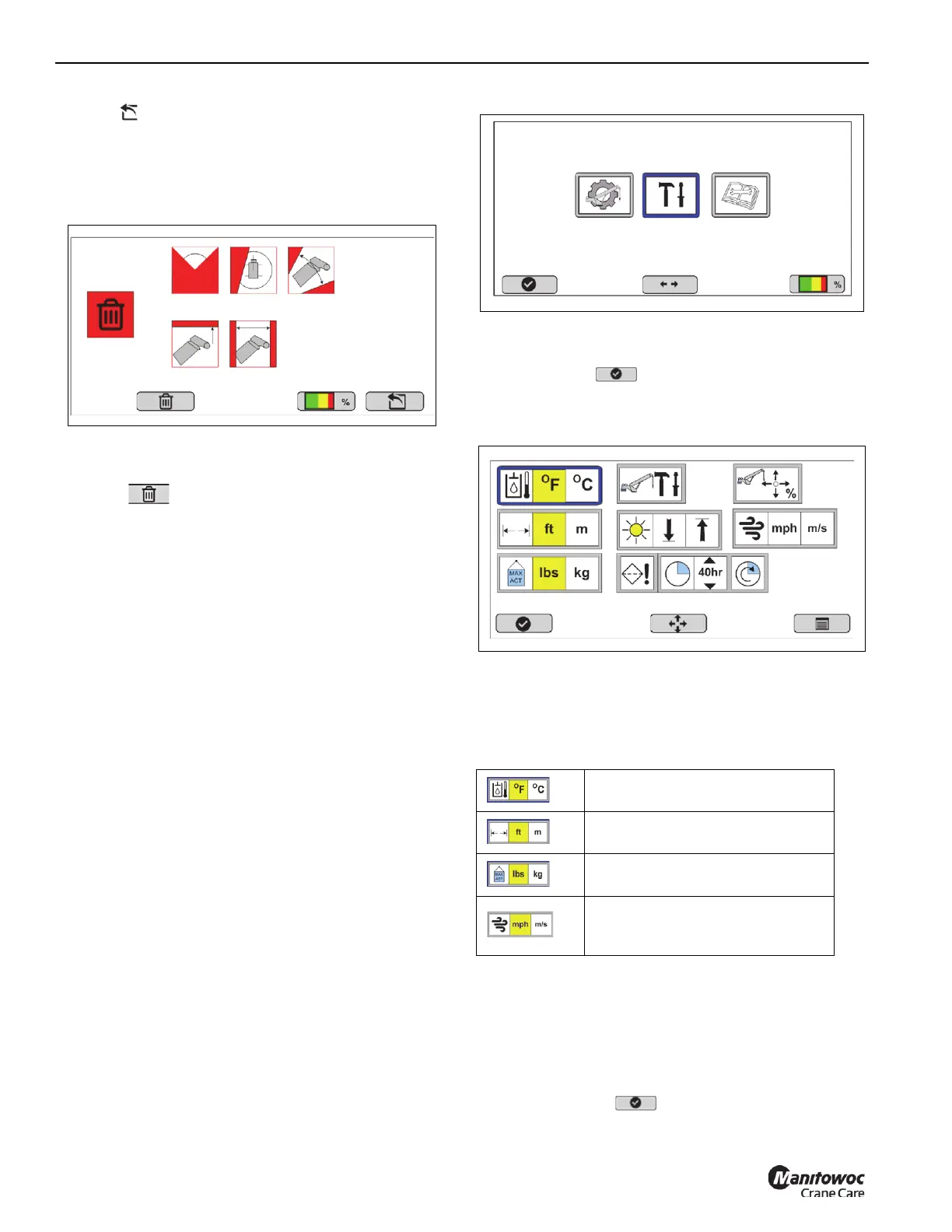

Deleting All Limits
RCL Limit #6
The RCL Limit #6 screen allows the operator to delete all
limit values that exist.
• Select to delete all values.
• ESC goes back to the Main Limits menu screen without
deleting any limit values.
TOOLS
The Tools menu is where the following tasks can be
performed:
• Setting units of measure
• Configuring Joystick Output
• Calibrating RCL sensors
• Configuring the hydraulic filter reminder
• Setting Screen Brightness
Accessing the Tools Menu
Access the Tools menu from the main RCL menu. Use the
arrow keys to scroll and select items in the Tools menu.
Select OK after making the selection.
MAIN Menu
To access the Tools Menu:
• Use the directional arrows to highlight the Tools icon.
Press the OK key.
The Tools Menu appears.
Tools Screen
Setting Units of Measure
The unit of measure can be changed for the measurements
shown in Table 7-7. Yellow indicates the currently set value.
To change the unit of measure:
1. Access the Tools menu.
2. Use the arrow key to highlight the measurement.
3. Use the right or left arrows to highlight the unit of
measure you want to use for the measurement.
4. Press the Select function key.
Table 7-7 Units of Measure
Temperature — Select either °F
(Fahrenheit) or °C (Celsius).
Length — Select either ft (feet) or m
(meter).
Weight — Select either lbs (pounds)
or kg (kilograms).
Wind Speed (If equipped) — Select
either miles per hour (mph) or meters
per second (m/s).
8807-35
RCL Tools Diagnostics
