CONNECT THE LINE SET TO THE ICE MACHINE
HEAD SECTION
The line set can be routed for entry through the top or
rear of the ice machine head section.
• Top routing requires the cover to be trimmed.
• Rear routing requires the use of the supplied 90°
elbows.

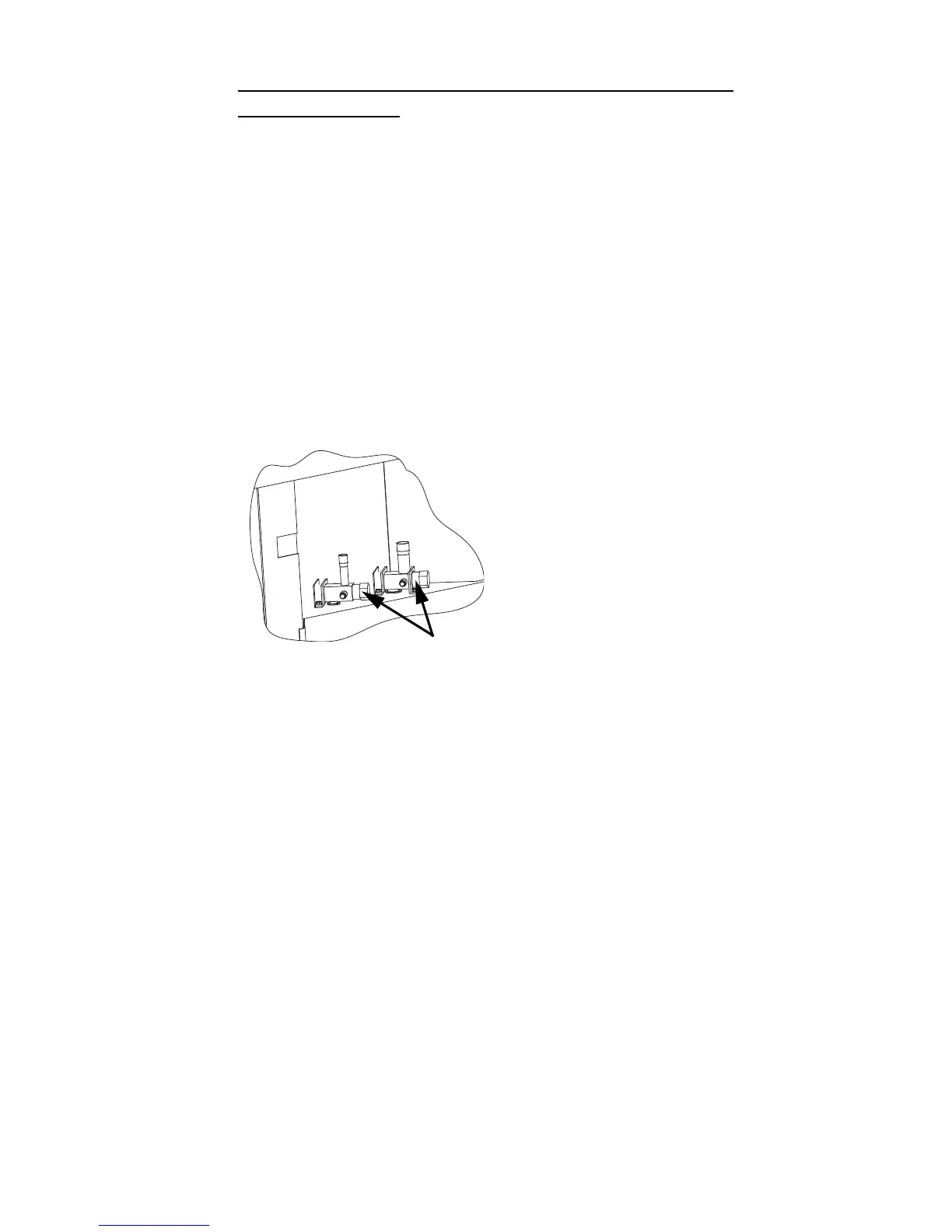

The line set shut-off valves at the back of the ice
machine must remain closed and be protected from
heat during the brazing process. Wrap the valves in a
wet rag or other type of heat sink prior to brazing. Cool
braze joint with water immediately after brazing to
prevent heat migration to the valve.
