Part Number 80-1505-3 6/11 279

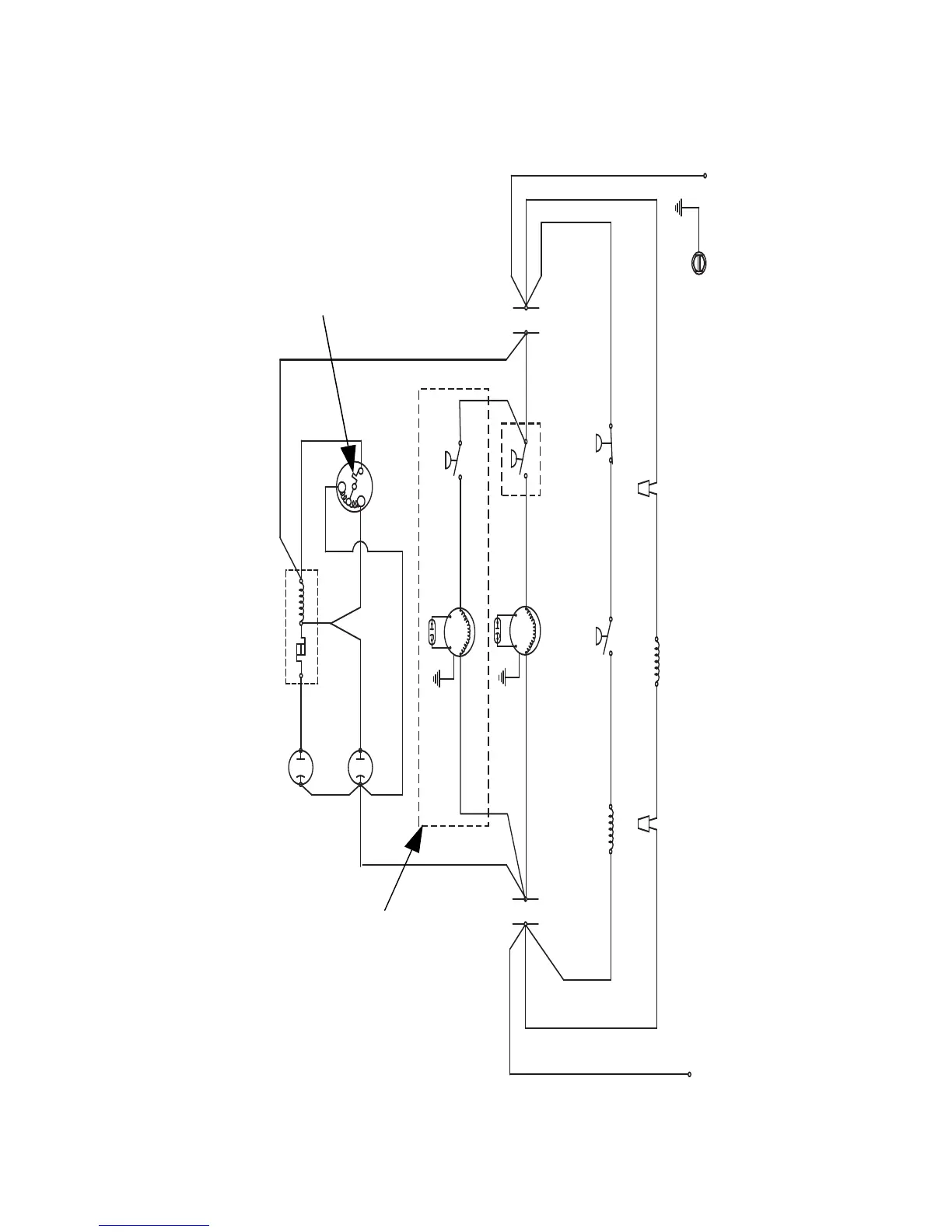

CVD675/CVD685/CVD885/CVD1075/CVD1085/
CVD1185/CVD1285/CVD1485/CVD1486/CVD1885/
CVD2075/CVD3085 -
1 PHASE
L1
Ground
See Serial Plate for Voltage
Contactor
Coil
L2 (N)
(95)
(97)
(85)
(94)
(49)
(96)
(74)
(43)
(46)
(48)
(47)
(44)
(45)
Low Pressure
Switch
Contactor
Contacts
Fan Cycle Control
Fan Cycle Control
Fan Motor
Run Capacitor
Run Capacitor
Fan Motor
Contactor
Contacts
Run Capacitor
Start
Capacitor
S
R
Relay
52
1
C
S
R
Compressor
Overload
High Pressure
Cutout
*Condensing Unit with
Two Fans Only
