58 Part Number 80-1505-3 6/11
Verify O-rings in schrader valve caps are intact and
reinstall on shut-off valves to prevent refrigerant
leakage. Replace shut-off valve access caps and
torque to the following specifications.
Replace cap on receiver service valve and tighten.
There is a liquid line solenoid valve at the outlet of the
receiver; refrigerant will not flow to the condensing unit
until the ice machine head section is started. Connect
power to both the ice machine head section and the
CVD
®
Condensing Unit. Place the ice machine toggle
switch into the ICE position; this will allow refrigerant
to enter the line set and condensing unit.
LEAK CHECK THE REFRIGERATION SYSTEM
Leak check the new line set connections at the ice
machine head section, condensing unit and S-trap as
well as all factory joints throughout the entire system.
Disconnect power to the CVD
®
Condensing Unit.
Place the ICE/OFF/CLEAN toggle switch in the ICE
position. This allows the low side and high side
pressures to equalize. Place the ICE/OFF/CLEAN
toggle switch in the OFF position. Connect power to
the CVD
®
Condensing Unit and allow system to pump
down.

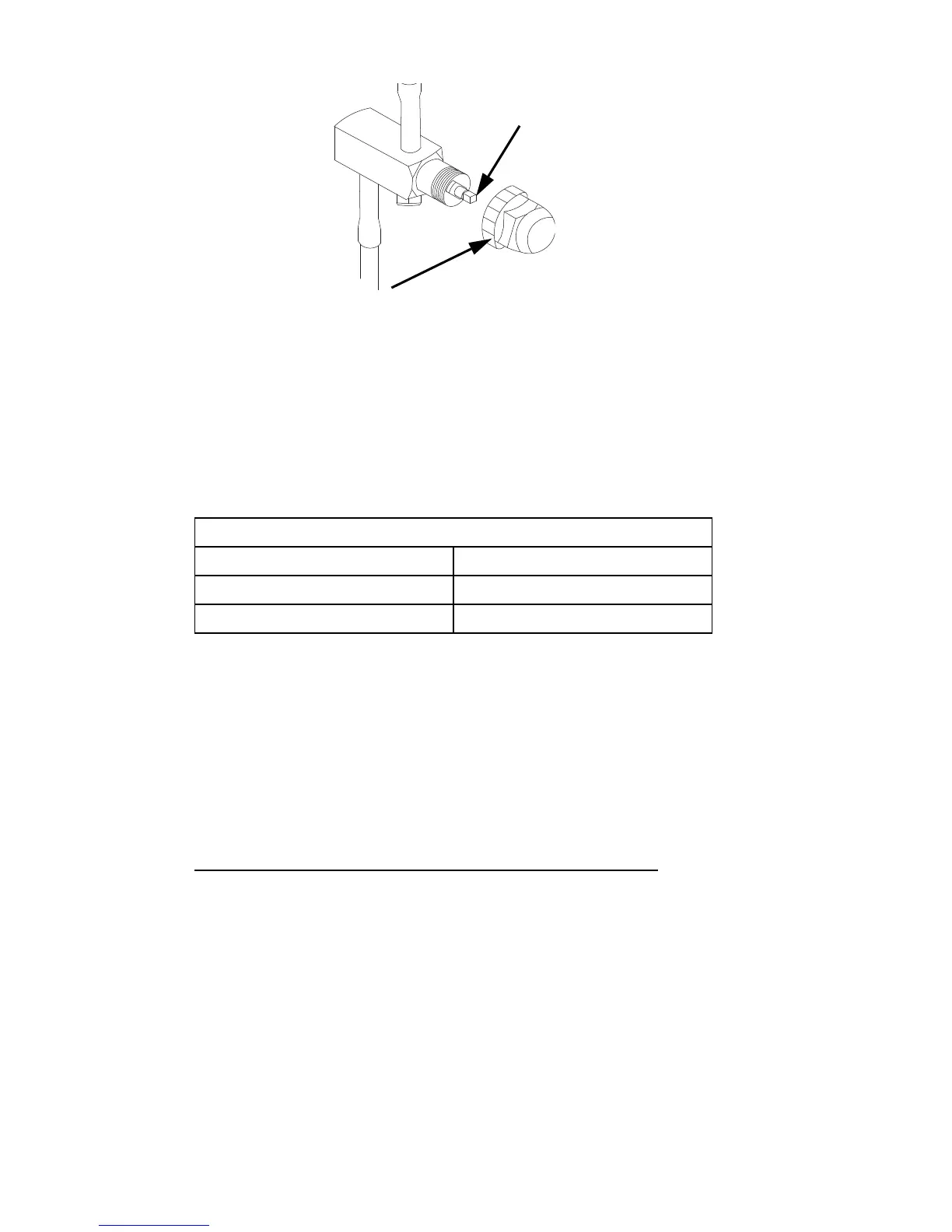

Torque Values
Stem 18-20 ft. lbs.
Caps 12-15 ft. lbs.
Schrader Core 1.5-3 in. lbs.
SV1756
TURN
COUNTERCLOCKWISE
TO OPEN.
RECEIVER SERVICE VALVE CAP
(TURN COUNTERCLOCKWISE
TO REMOVE.)
RECEIVER SERVICE VALVE
