32 Part Number 80-1505-3 6/11
Step 2 Install front support and filler panels.
A. Remove foam tape from front support
location.
B. Set front support in place and install foam
tape.
C. Position filler panels (align with front support),
drill and secure.
D. Install foam tape on front and back. Seal all
foam tape edges.
Step 3 Install ice deflector.
A. Locate center of ice machine drop zone
(center is 11” from left edge of ice machine to
left edge of bracket).
B. Cut and remove foam tape on the front and
the back of the bin where the deflector will be
located.
C. Remove any residual adhesive; areas must
be clean and dry.
D. Remove protective covering from double
sided tape on bottom of deflector bracket.
E. Install deflector bracket; Distribute equally to
the front and back and locate pin to the rear.
F. Apply foam tape over bracket and seal joints
with silicone sealant.

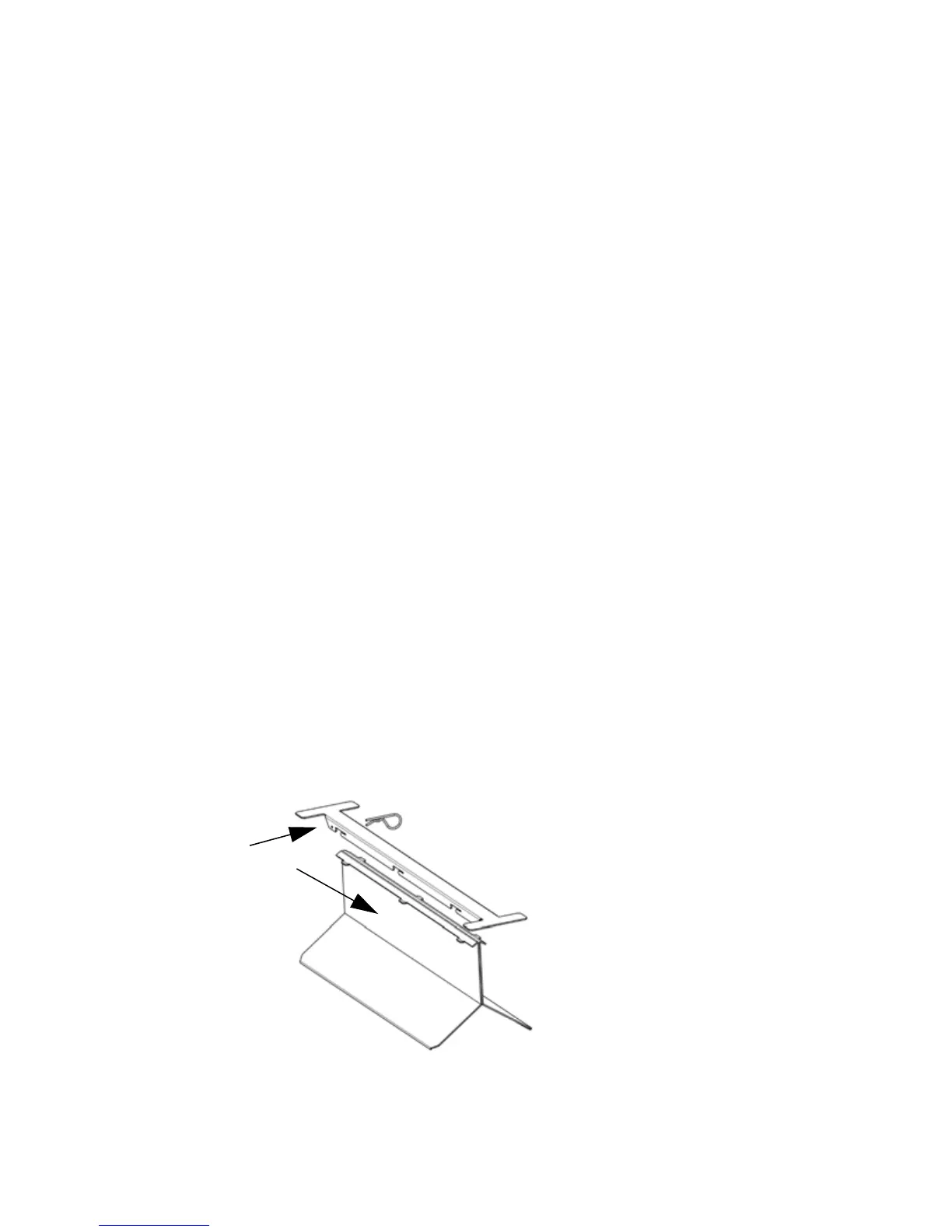

G. Refer to illustration and install deflector in
mounting bracket.
To Next Page
