Manitowoc RF0650A User Manual

106 Part Number 000007661 6/13
YES
NO

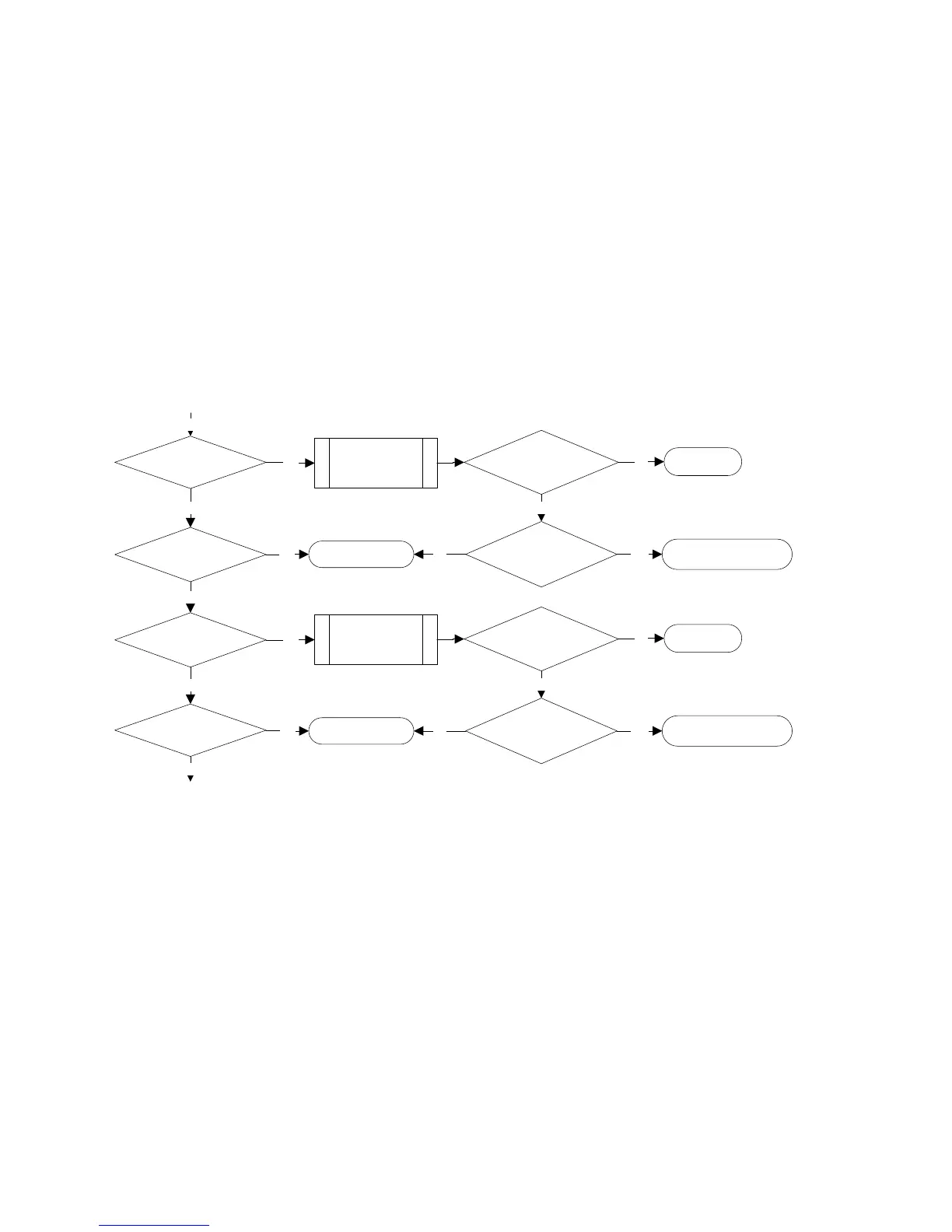

Replace Relay
Line Voltage To
Left Delay Relay Coil?
NO
Repair Wiring
Replace Left Rotation
Sensor/Time Delay
No
Power To Left Time
Delay Relay Coil?
Install
Compressor Time
Delay Jumper On
Left Evaporator
Left Delay Relay
Contacts Closed?
Left Delay Relay
Contacts Closed?
Yes
No Yes
YES
NO
Replace Relay
Line Voltage To
Right Delay Relay Coil?
NO
Repair Wiring
Replace Right Rotation
Sensor/Time Delay
No
Power To Right Time
Delay Relay Coil?
Install
Compressor Time
Delay Jumper On
Right Evaporator
Right Delay Relay
Contacts Closed?
Right Delay Relay
Contacts Closed?
Yes
No Yes
YES
YES
YES
