Part Number 000007661 6/13 117

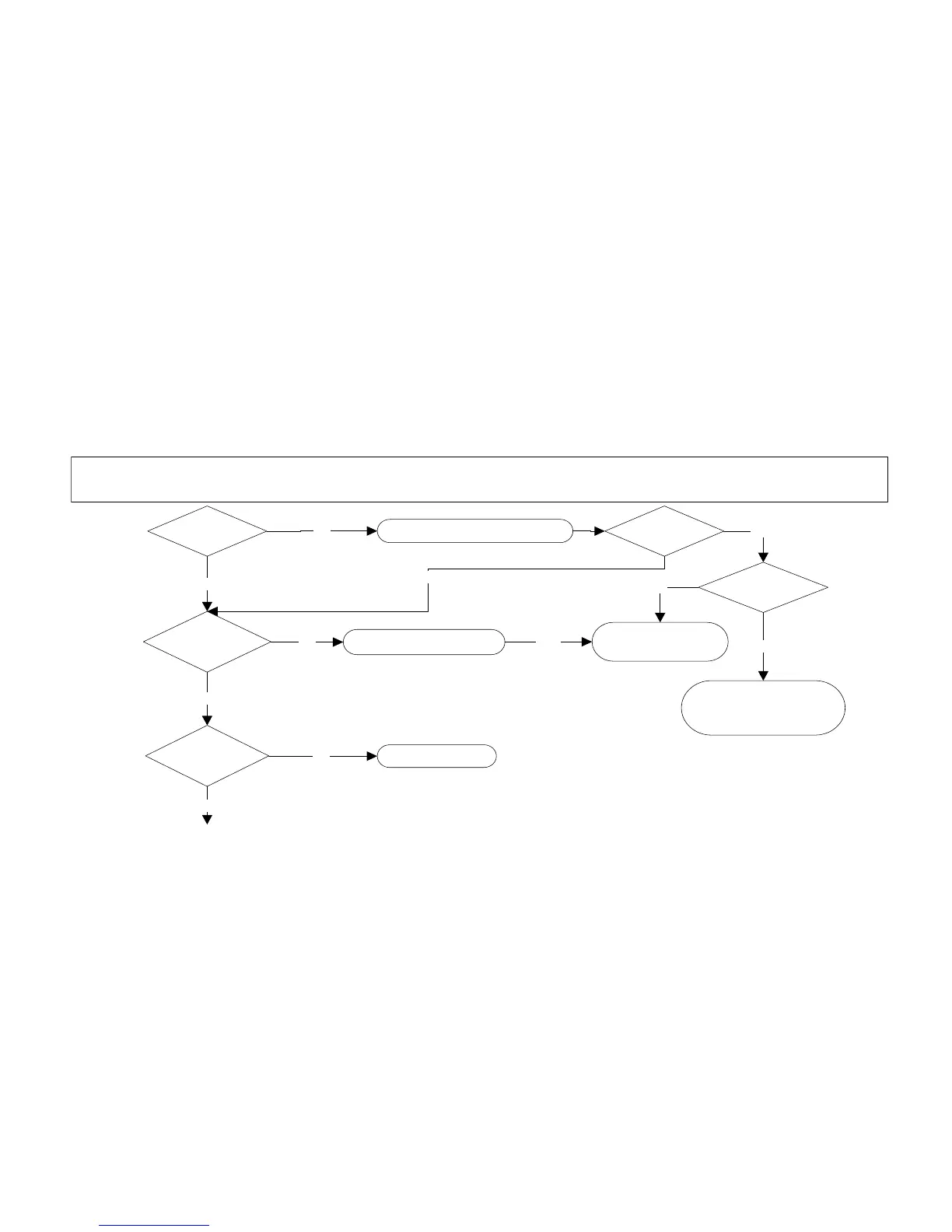

ELECTRICAL DIAGNOSTIC FLOWCHART
Power Supplied
to Ice Machine?
Toggle Switch In
ON Position?
Move Switch To ON Position
Restore Power, Reset BreakerNO
NO
YES
Electrical Flowchart - RF00R5)65
Switch
Illuminated?
NO
YES
Replace Switch
Immediately
Trips?
Yes
Ohm Toggle Switch, Time
Delays, Gear Motors,
Water Inlet Valve
Yes
No
Toggle Switch In
Off Position?
Isolate And Ohm Each
Component - Then Each
Wire If Required
Yes
No
Trips
