Part Number 80-1479-3 7/10 55
NOTE: During cleaning, do not stretch or damage the
spring.
1. Remove the tubing from the dump valve by
twisting the clamps off.
2. Remove the valve body, twist off.

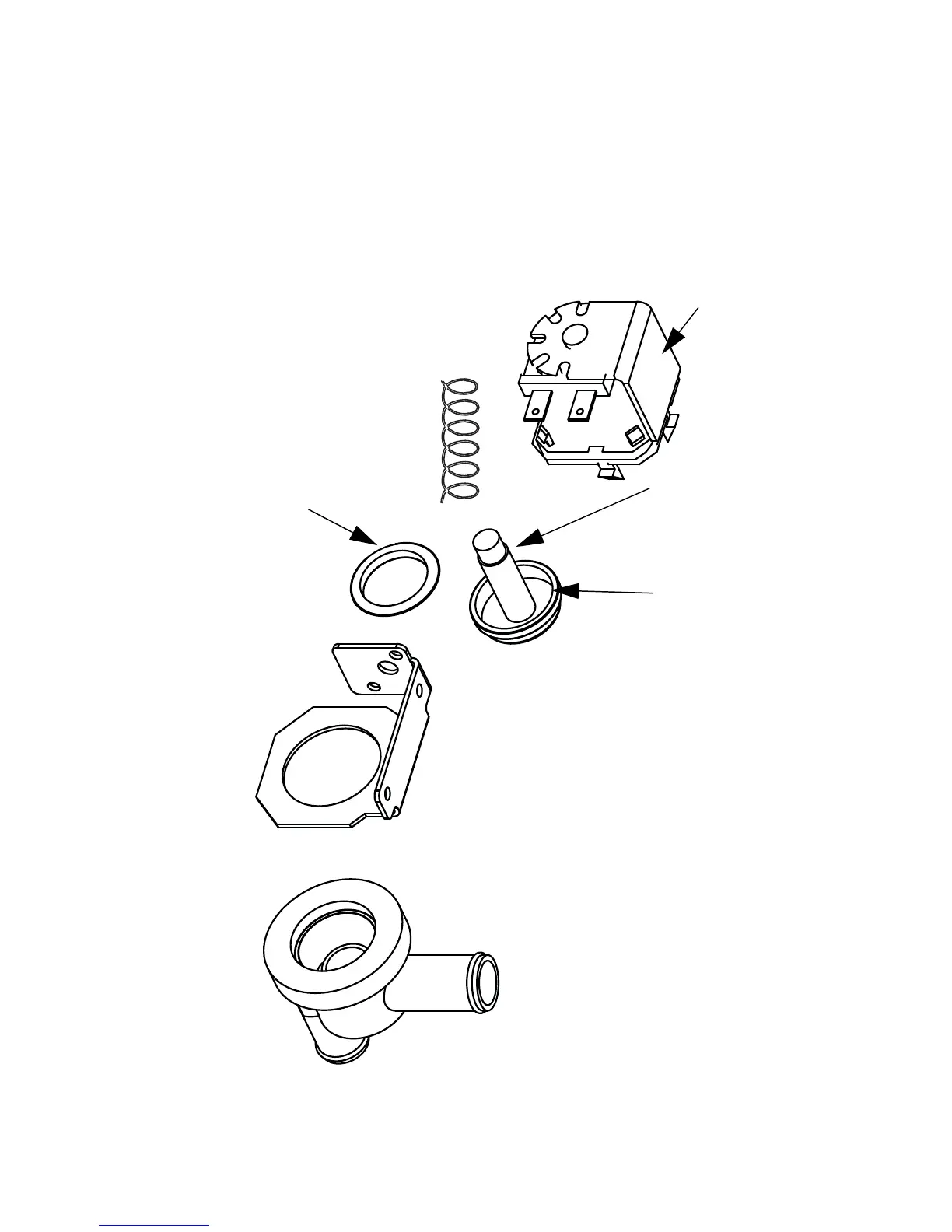

Dump Valve Disassembly
SPRING
PLUNGER
DIAPHRAM
VALVE BODY
COIL
MOUNTING BRACKET
NYLON GASKET
