Section 2 Installation Instructions
Part Number 000005544 12/09 2-3
WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

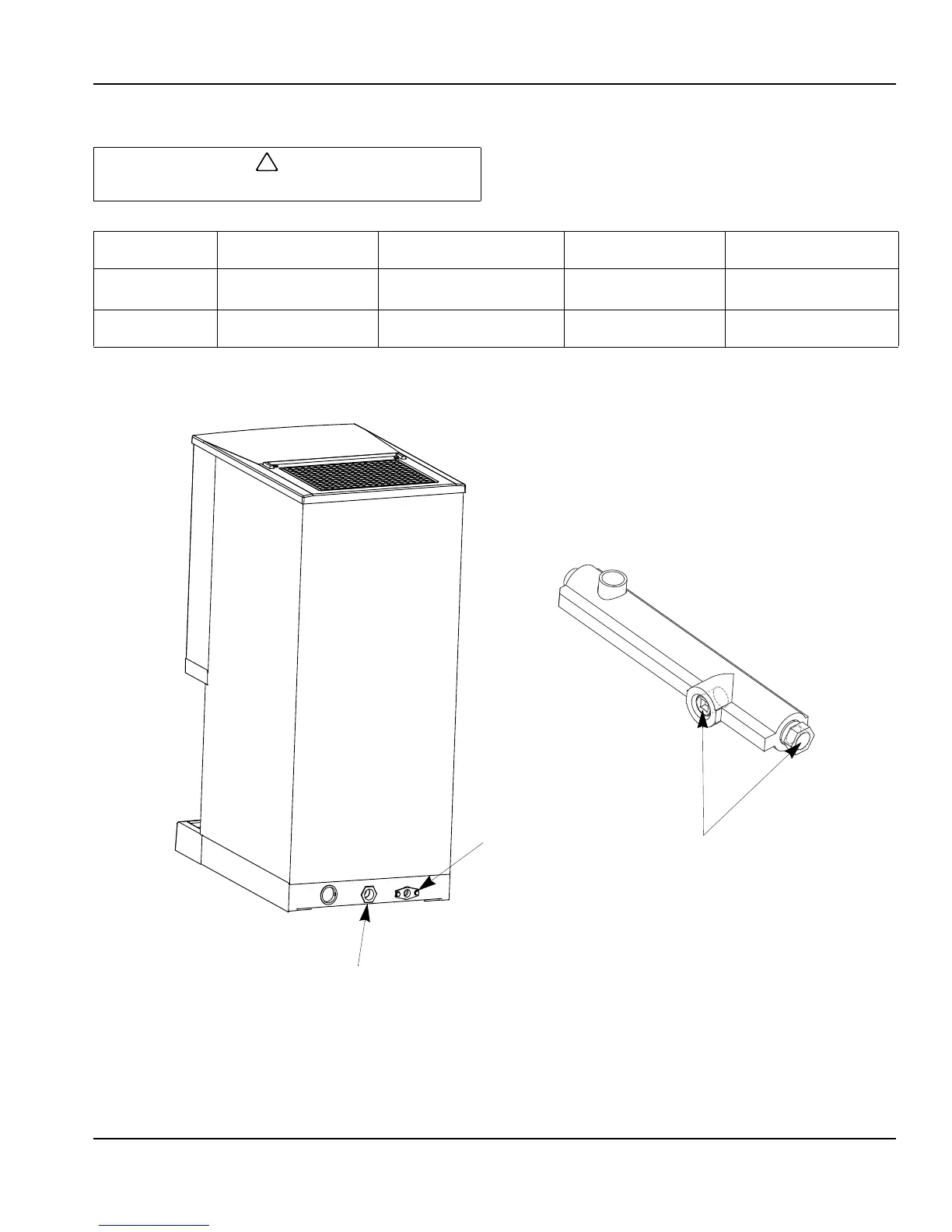

Typical Water Supply Drain Installation
Plumbing must conform to state and local codes.
Location Water Temperature Water Pressure Ice Machine Fitting
Tubing Size Up to Ice
Machine Fitting
Ice Making
Water Inlet
45°F (6°C) Min.
90°F (32.2°C) Max.
20 psi (137.9 kPA) Min.
80 psi (551.5 kPA) Max.
3/8" Female
Pipe Thread
3/8" (10 mm) minimum
inside diameter
Ice Machine
Drain
--- ---
3/4" Female
Pipe Thread
3/4" (19 mm) minimum
inside diameter
DRAIN
ICE MAKING
WATER INLET
TUBING 3/8”
MIN. I.D. (.95 SM)
DRAIN CONNECTION IS
INTERCHANGEABLE
DRAIN IS PREINSTALLED TO RUN OUT
THE BACK
MOVE DRAIN PLUG TO RUN DRAIN
OUT THE BOTTOM IF DESIRED
