16 Brueninghaus Hydromatik
Reparaturanleitung A11VO
Repair Instructions A11VO

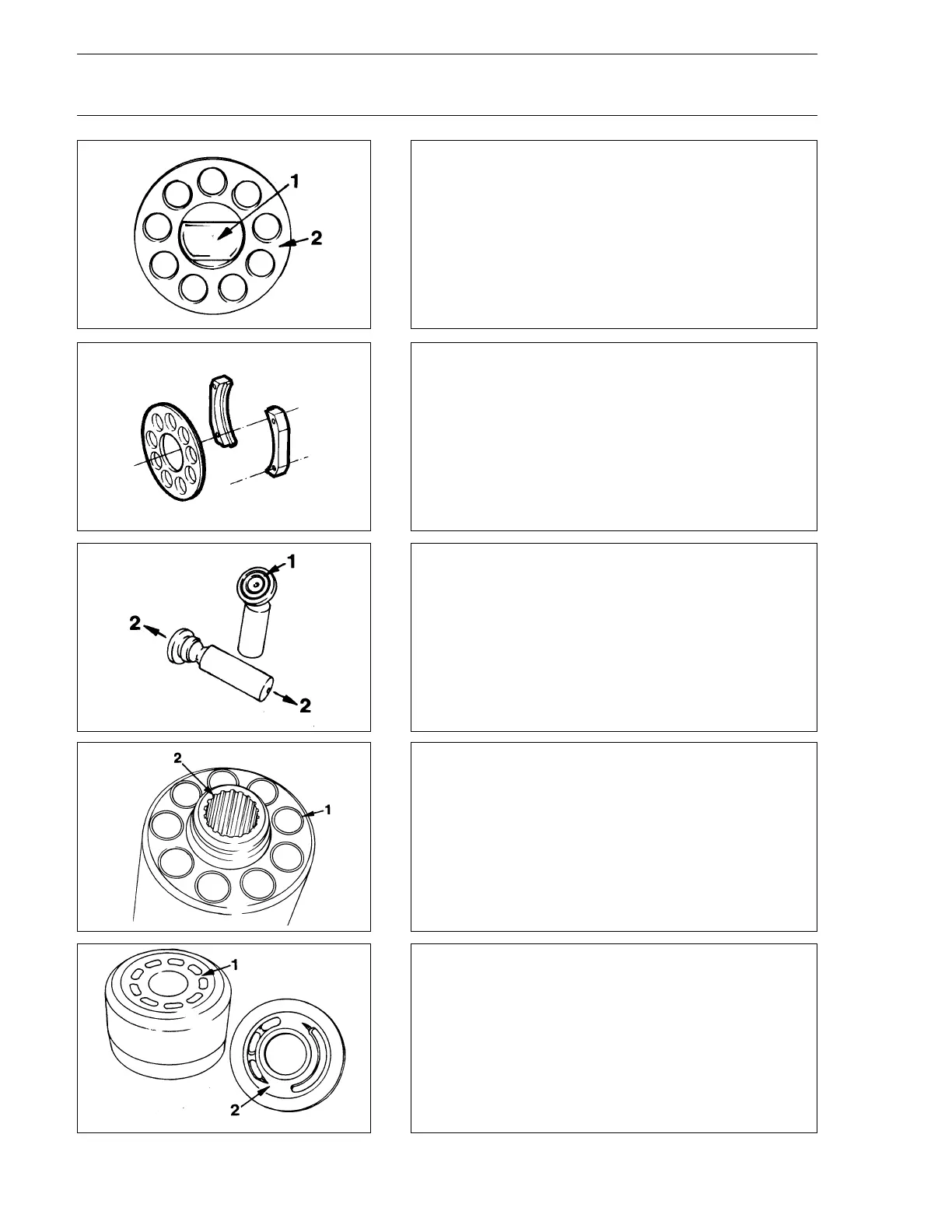

38 Kontrolle!
Rückzugkugel (1)
Rückzugplatte (2).
Inspection!
Retaining ball (1)
Retaining plate (2).
39 Kontrolle!
Haltesegmente
Inspection!
Fixing segments
40 Kontrolle!
Gleitschuhe (1)
Axialspiel (2)
Inspection!
Slipper pads (1)
Axial backslash (2)
41 Kontrolle!
Zylinderbohrung (1)
Verzahnung (2)
Inspection!
Cylinder boring (1)
Gears (2)
42 Kontrolle!
Zylindergleitfläche (1)
Gleitfläche Steuerplatte (2)
Inspection!
Cylinder contact area (1)
Contact area control plate (2)
Überprüfungshinweise
Inspection notes
