MM815 Installation Instructions
2

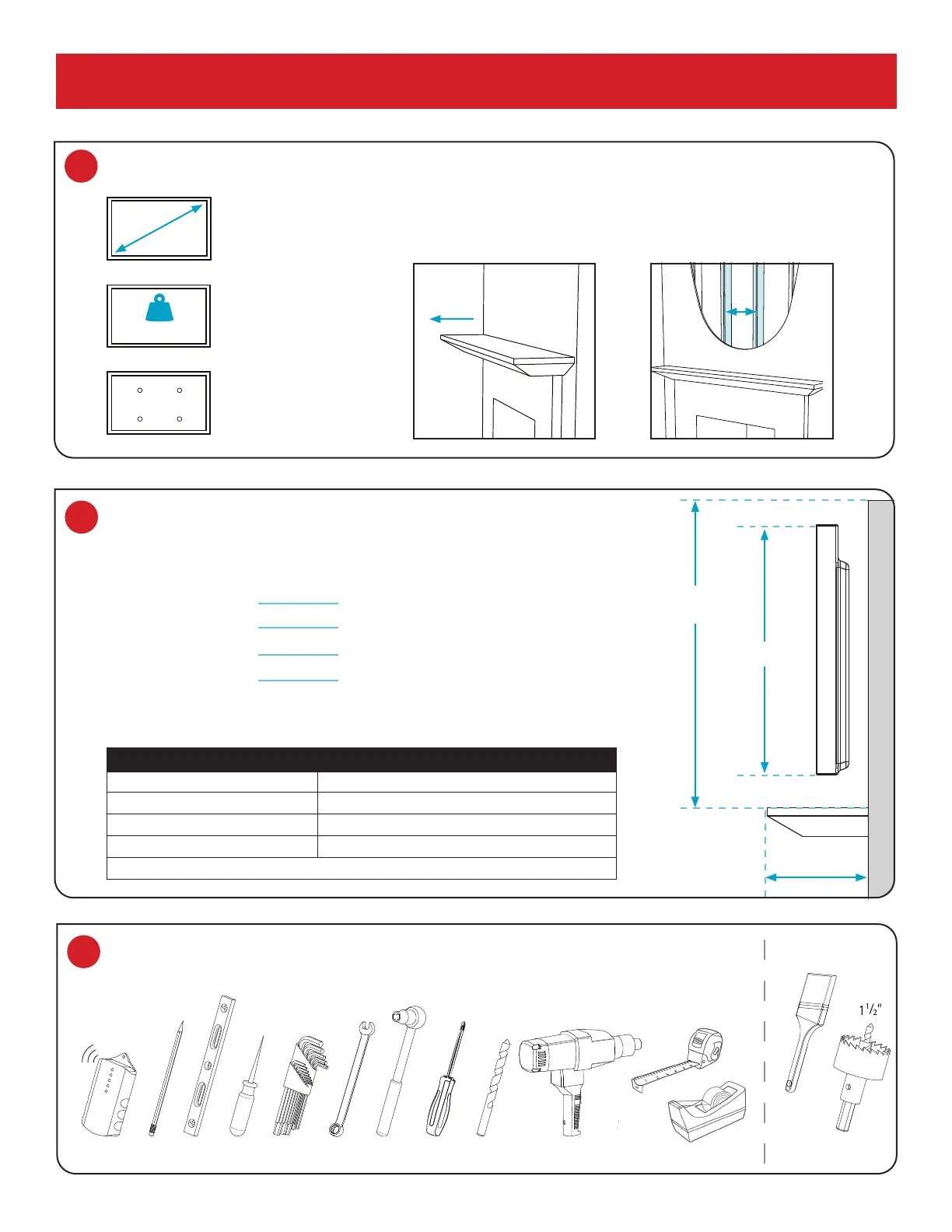

BEFORE INSTALLATION
1 Verify TV and mount space meet these criteria:
VESA
Width: 200-700mm
Height: 100-500mm
SCREEN SIZE
45" to 90"
(Diagonally)
2 Verify MantelMount will t the wall space.
VESA
Width: 200-700mm
Height: 100-500mm
45" – 90"
VESA COMPLIANT
Up to
600 X 600mm
WEIGHT CAPACITY
20 to 115 LBS.
(Including Sound Bar)
WOOD STUDS FOR MOUNTING
Studs Maximum 28" apart;
Wall Covering Maximum 5/8"
MANTEL DEPTH 16" MAXIMUM
For TVs Shorter then 24. 7” without
a soundbar, mount will be visible in
top position.
VESA
Width: 200-700mm
Height: 100-500mm
MAX 20-115 LBS
16" MAX
WALL SPACE
HEIGHT
TV HEIGHT
MANTEL DEPTH
If Mantel Depth is: Required Vertical Space is:
Less than 8" TV height + 2"
8" – 10" TV height + 4"
10" – 12" TV height + 6"
12" – 15" TV height + 9"
16” TV height + 11”
A. Use the reference diagram (right) and chart (below) to write down the following
measurements (in inches):
Wall Space Height
: (Distance from mantel to ceiling/crown molding.)
TV Height: (Include sound bar height if placing below TV.)
Mantel Depth: (Distance mantel extends away from the wall.)
Required Vertical Space: (Calculation from chart below.)
B. If the Required Vertical Space is less than or equal to the Wall Space
Height, then MantelMount will t the wall space.
STUDS
MAX 28"
APART
3 Verify you have the required tools.
4–5mm
10–13mm
AWL
DRILL BIT POWER DRILL
PENCIL LEVELSTUD FINDER WRENCH SOCKET WRENCHALLEN WRENCHES
TAPE MEASURER TAPE DISPENSER
OPTIONAL
PAINT
BRUSH
HOLE SAW
PHILLIPS
7/32"
