The MAONOCASTER AM100 is a versatile audio interface designed for podcasting, streaming, and various audio recording applications. It serves as a comprehensive solution for managing multiple audio inputs and outputs, offering a streamlined experience for content creators.

Function Description

The MAONOCASTER AM100 acts as a central hub for audio signals, allowing users to connect a variety of microphones, instruments, and external devices. It facilitates the mixing and routing of these audio sources to different outputs, including computers, smartphones, and monitoring headphones.

At its core, the device supports multiple microphone types. For condenser microphones, it offers both unbalanced (via XLR to 1/8" TRS) and balanced (via XLR) connections. Notably, for balanced condenser microphones, the AM100 includes a "TURN ON" 48V Phantom Power switch, essential for their operation. Dynamic microphones can also be connected via a 1/4" TS (6.35mm) jack. Electric guitars can be plugged in using a 1/4" TS (6.35mm) jack as well, making it suitable for musicians who want to integrate their instruments into their broadcasts or recordings.

The AM100 features a USB-C port for connecting to a computer, enabling it to function as an external sound card. This connection allows for digital audio transfer, making it ideal for streaming and recording directly to software like Adobe Audition. The device also includes dedicated inputs for smartphones, facilitating mobile streaming and call integration. A TRRS audio cable can be used to link phone calls to a podcast, allowing for seamless inclusion of remote guests or audience interaction. Another TRRS audio cable input is provided for general smartphone streaming, while a separate TRS audio cable input is available for music playback from a smartphone.

For monitoring, the AM100 offers two dedicated monitor outputs (Monitor1 and Monitor2), typically used for headphones. These outputs allow the user to hear the mixed audio in real-time, ensuring optimal sound quality during live broadcasts or recording sessions. An additional 1/8" (3.5mm) mini-stereo jack is available for connecting headphones, providing a standard monitoring option.

The rear panel of the AM100 houses the primary input and output connections. These include the USB-C port, a monitor output, POD1 and POD2 outputs, an AUX input, a phone input, and two microphone inputs (MIC2A INPUT and MIC1 INPUT). The front panel features controls for various audio parameters, allowing for on-the-fly adjustments during use.

Usage Features

The MAONOCASTER AM100 is designed for ease of use, even for those new to audio production. Its intuitive layout and clear labeling of ports simplify the setup process.

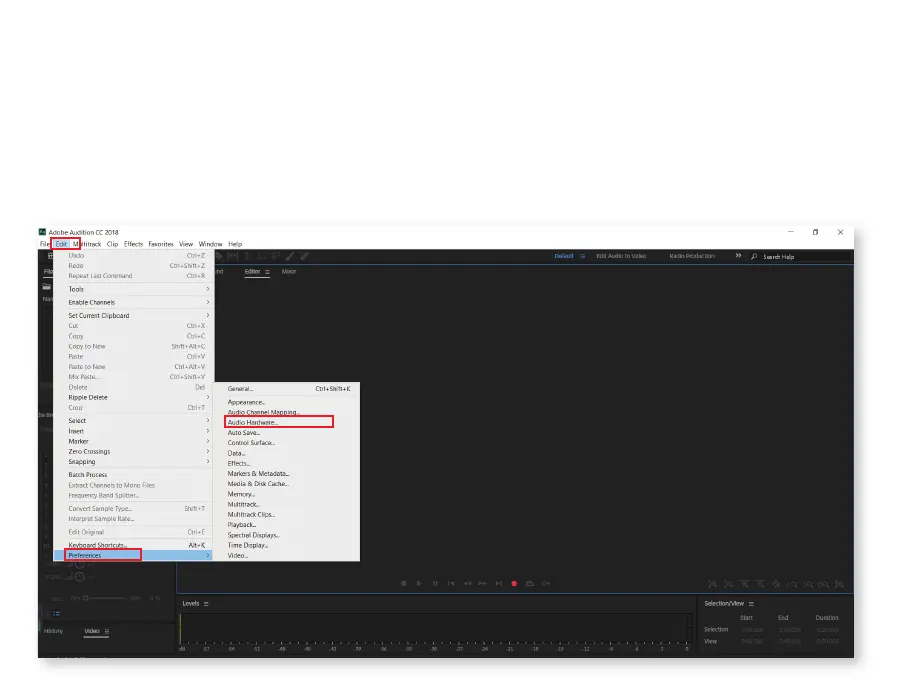

For computer integration, the device connects via a single USB-C cable. Once connected, users can launch their preferred audio editing or streaming software, such as Adobe Audition. The setup guide provides a step-by-step process for configuring the AM100 within Adobe Audition. This involves navigating to Edit > Preferences > Audio Hardware, where users can select "Maono Podcaster" as both the default input and output device. This ensures that all audio processed by the AM100 is recognized by the software and that the software's output is routed back to the AM100 for monitoring.

Creating a new multitrack session in Adobe Audition is straightforward, allowing users to name their session, specify a folder location, and set parameters like sample rate and bit depth. Once a session is created, users can assign the "Maono Podcaster AM100" as the track input for any desired audio track. This enables recording from the connected microphones or other inputs directly into the software.

The "R" button beside each track in Adobe Audition serves to arm the track for recording, preparing it to capture audio. After arming the track, users can simply click the recording button within the software to begin capturing their podcast, music, or other audio content. This workflow is designed to be efficient, allowing creators to focus on their content rather than complex technical configurations.

The ability to connect multiple types of microphones simultaneously is a significant feature, allowing for multi-person podcasts or interviews. The inclusion of phantom power for condenser microphones eliminates the need for external power supplies, simplifying the setup. The smartphone integration features are particularly useful for live streaming, enabling hosts to take calls from listeners or play background music directly from their mobile devices.

The dedicated monitor outputs ensure that the user always has a clear audio reference, which is crucial for maintaining sound quality and identifying any issues during a live broadcast or recording. The physical controls on the device itself allow for quick adjustments to levels and other parameters without needing to interact with software, providing a tactile and responsive user experience.

Maintenance Features

While the manual does not explicitly detail maintenance features, the design of the MAONOCASTER AM100 suggests a focus on durability and straightforward care.

The robust construction of the device, with clearly labeled ports and controls, implies it is built to withstand regular use in a home studio or on the go. The use of standard connectors (XLR, 1/4" TS, 1/8" TRS, USB-C) means that replacement cables are readily available, minimizing downtime in case of cable failure.

Cleaning would likely involve wiping the exterior with a soft, dry cloth to remove dust and fingerprints. Given its electronic nature, it should be kept away from liquids and extreme temperatures to prevent damage. The absence of user-serviceable parts suggests that internal maintenance or repairs would require professional assistance.

The digital integration with software like Adobe Audition also contributes to maintenance by allowing for easy firmware updates (if available) through the computer connection, ensuring the device remains compatible with the latest operating systems and software versions. This helps to prolong the lifespan and functionality of the AM100.

Overall, the MAONOCASTER AM100 is presented as a user-friendly, versatile, and robust audio interface, designed to empower content creators with a comprehensive solution for their audio production needs.

Maono MAONOCASTER - Step-by-Step Guide Overview; Connect Maonocaster AM100; Launch Adobe Audition; Configure Audio Hardware Settings
