Example:
A. Long Product
For products that are longer than the printer's width (W
p
<W
a
,), the sensor should be installed
AFTER
the
printer. By doing this, the delay time can be reduced to a minimum or even zero.
In the image below, you can clearly see the effect of the location of the sensor to the delay time.

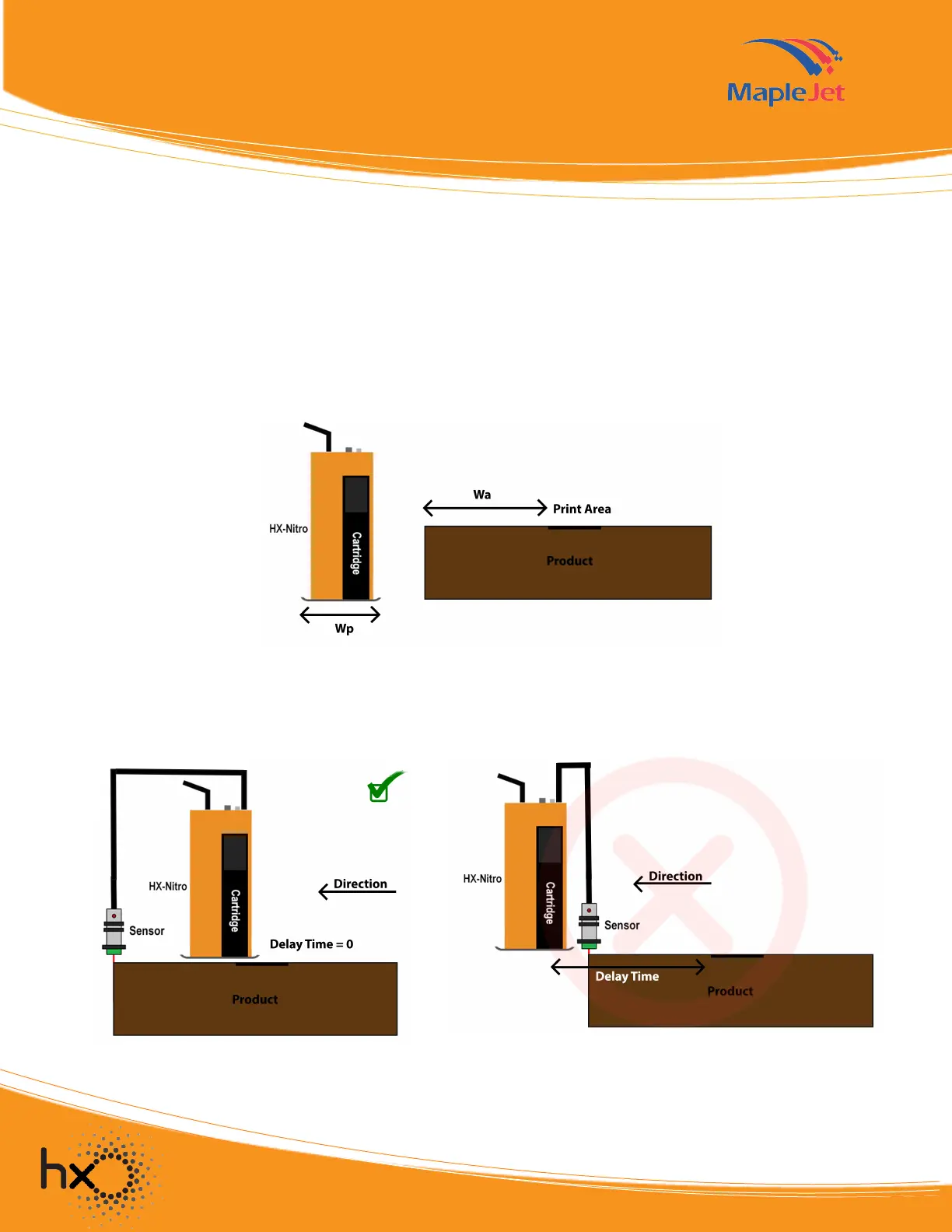

Figure 7. Product width is longer than the printer
Figure 8. Sensor position after the printer
Figure 9. Sensor position before the printer
