Maquet HU 35 - User Manual

Maquet HU 35
44 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
HU 35, User's Manual 1
English version
2.00

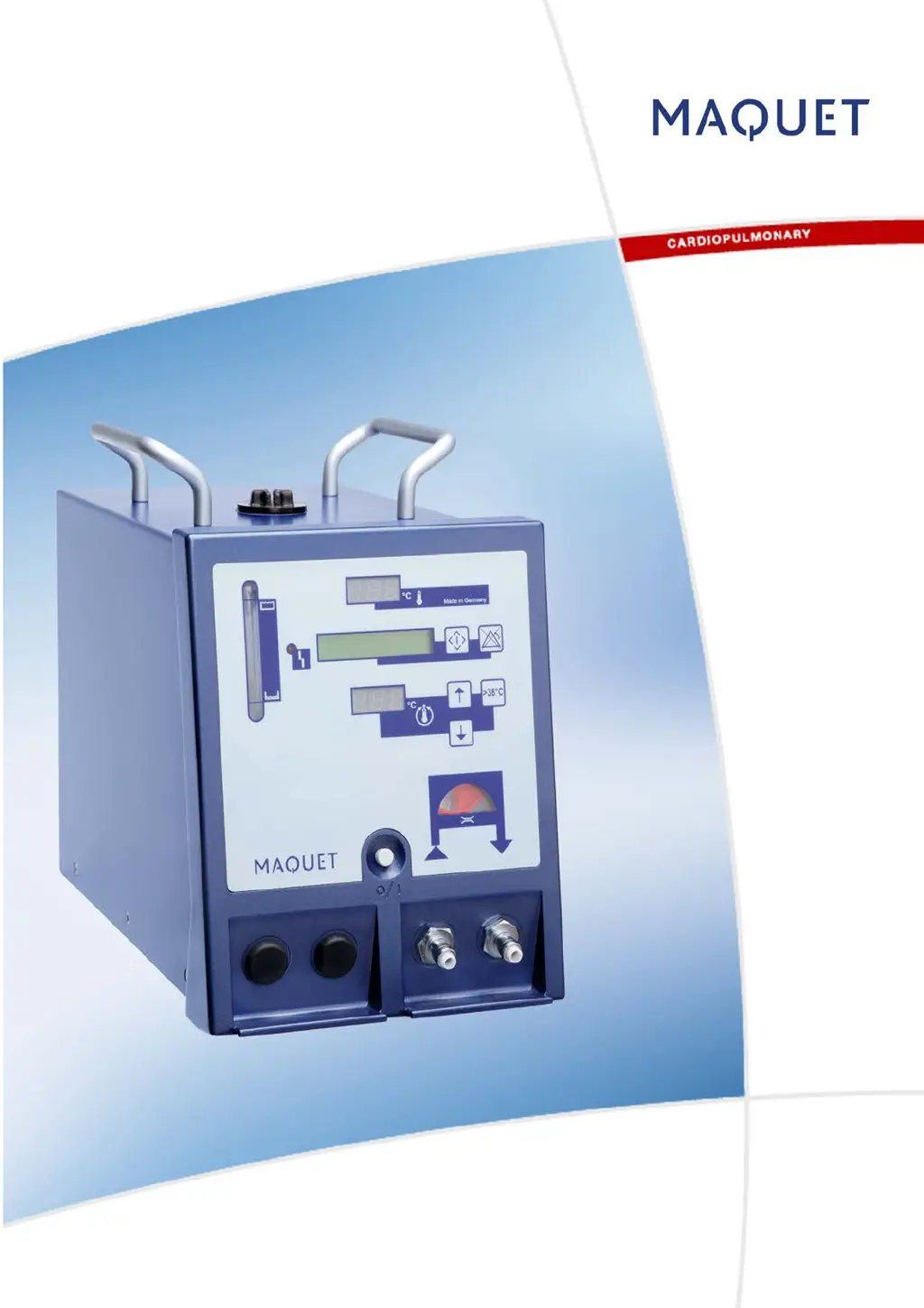

User’s Manual
Heater Unit HU 35

Table of Contents

Other manuals for Maquet HU 35

Preview: Instructions For Use
Instructions For Use27 pages

Questions and Answers

  • J
    john62Aug 18, 2025
    What to do if Maquet Heater shows “TEMP >= 40°C” alarm?
    • S
      scottrobertsonAug 18, 2025
      If the Maquet Heater displays the message “TEMP >= 40°C” and you can't acknowledge it with the “Alarm Off” key, it could be due to several reasons. First, the water tank might be empty, so refill it with water. Second, there might be insufficient heat dissipation; avoid operating the unit continuously for more than one hour without the tubes and oxygenator. Third, the ambient temperature could be too high; allow the unit to cool and observe the maximum ambient temperature. Finally, there could be a sensor short circuit T2, in which case you should contact customer service.
  • A
    Aaron HuberAug 21, 2025
    What to do if Maquet HU 35 Heater displays “WATER LEVEL!?” alarm?
    • E
      ericksonrichardAug 21, 2025
      If the Maquet Heater displays the message “WATER LEVEL!?” and it can be acknowledged with the “Alarm Off” key for 10 minutes, it indicates that the water level is too low, so you should refill it with water. Another reason might be that the unit is not positioned horizontally, so ensure that the unit is placed horizontally. It may also indicate a sensor error.
  • E
    ethomasAug 22, 2025
    How to fix no water circulation in Maquet HU 35 Heater?
    • A
      Anthony HughesAug 22, 2025
      If you're experiencing no or insufficient water circulation in your Maquet Heater, there are several potential causes: * The tubes might be kinked. Ensure that the tubes are laid and positioned correctly. * The couplings may not be clicked into place. Push the couplings together firmly. * The unit could be positioned well below the oxygenator. Position the unit at the same height or higher. * The pump may be worn out or defective.
  • W
    William GarrettAug 25, 2025
    What does “CHECK UNIT” mean on Maquet HU 35?
    • Z
      Zachary RandallAug 26, 2025
      If the Maquet Heater displays the message “CHECK UNIT” and “->CALL SERVICE”, it may be due to various defects, an empty water tank (refill with water), or a sensor failure/short circuit T1.
  • D
    Daryl MarshallAug 27, 2025
    Why are the functions failing on my Maquet HU 35 Heater?
    • T
      Tiffany HenryAug 28, 2025
      If the Maquet Heater's functions and acoustic alarm fail, check the following: 1. There may be a power failure. Switch off the unit until the power returns. 2. The power plug may not be connected. Check that the power plug is properly inserted into the unit and socket.
  • J
    Jennifer PerezAug 30, 2025
    What does “ALARM TEST FAIL” mean on Maquet HU 35 Heater?
    • T
      Thomas WheelerAug 30, 2025
      If the Maquet Heater displays the message “ALARM TEST FAIL” and “->CALL SERVICE”, it may indicate that the independent safety device is defective or the pump has an electrical defect.
  • T
    taylorhendrixSep 1, 2025
    Why is the coupling connection dripping on my Maquet Heater?
    • R
      robertwarnerSep 1, 2025
      If the coupling connection of your Maquet Heater drips continuously, it is likely that the outer, visible sealing ring is damaged or missing.
  • J
    jeffreybernardSep 3, 2025
    What to do if Maquet HU 35 Heater displays “TEMP
    • L
      Lori HoodSep 3, 2025
      If the Maquet Heater displays the message “TEMP
  • B
    Bruce CarrSep 5, 2025
    Why does my Maquet Heater display “HEAT EMISS. 0 W”?
    • M
      Mary BurgessSep 5, 2025
      If you see the display message “HEAT EMISS. 0 W” or “WARMING-UP TIME” on your Maquet Heater, the heat dissipation value is not being shown because the setpoint and actual temperature are not the same. Heat dissipation is only shown if the setpoint and actual temperature are the same.
  • J
    john17Sep 8, 2025
    Why is the coupling valve dripping on my Maquet HU 35?
    • A
      adrian43Sep 8, 2025
      If the coupling valve of the coupling which is not connected drips continuously on your Maquet Heater, it could be due to a damaged or soiled inner sealing ring. Try connecting and disconnecting the coupling several times.

Summary

Brief Instructions

Safety Instructions

General Description

Product Description

Overview of the Heater Unit HU 35's design, features, and operational principles.

Intended Purpose; Indications

Specifies the primary medical use of the Heater Unit HU 35 in maintaining patient body temperature.

Side Effects; Contraindications

Information on potential adverse effects and situations where the unit should not be used.

Putting into Operation

Setting up the Unit

Instructions on how to position and mount the Heater Unit HU 35 for safe and optimal operation.

Language

Procedure for selecting the display language on the unit's interface.

Water Level

Guidance on checking, filling, and changing the water in the unit's tank for proper function.

Oxygenator

Instructions for correctly connecting and disconnecting the oxygenator to the unit.

Putting into Operation

Steps for switching on the unit, the performance test, and the initial warm-up phase.

Instruction for Use

Setting the Temperature

How to adjust the desired setpoint temperature for the Heater Unit HU 35 using arrow keys.

Heat Dissipation

Explanation of how the unit displays and transfers heat (W) to the environment and oxygenator.

Performance and Safety Checks

Procedures for visual inspection, flow rate verification, and manual performance testing.

Alarm Signals

Details on visual/acoustic alarms, their causes, and how to manage them (priority, disabling).

Cleaning and Disinfection

Surface of the Unit

Methods for cleaning and disinfecting the external surfaces of the unit using approved disinfectants.

Water Tank

Instructions related to cleaning and decontamination of the unit's water tank.

Disposal

Guidelines for the environmentally responsible disposal of the unit as electronic waste.

Maintenance and Safety Checks

Maintenance

Recommended maintenance procedures, including water replacement, disinfection, and O-ring care.

Safety Checks

Details on annual safety checks required for the unit performed by authorized personnel.

Troubleshooting

Technical Data and Accessories

Technical Data

Specifications, operational parameters, and safety features of the Heater Unit HU 35.

Accessories

List of obligatory and optional accessories required or recommended for the Heater Unit HU 35.

Guidance and manufacturers declaration - electromagnetic emissions

Information on electromagnetic compatibility (EMC) and emissions testing for the unit.

Warranty and Liability Limitations

Maquet HU 35 Specifications

General IconGeneral
BrandMaquet
ModelHU 35
CategoryHeater
LanguageEnglish
