Marantz professional PMD580 - Rear Panel Connectors

8

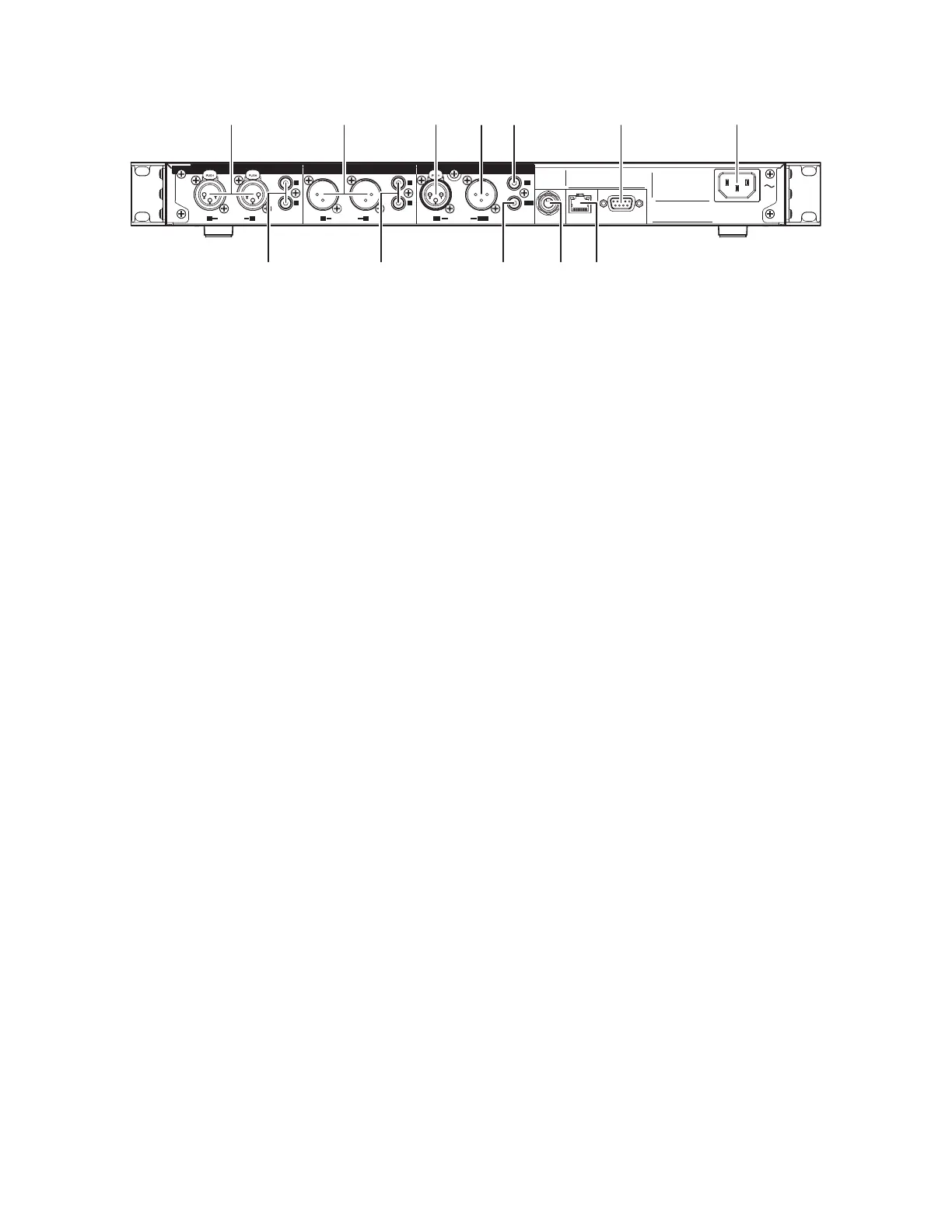

Rear Panel■
z
z ANALOG (Balanced) INPUT
These are balanced inputs using XLR type connections.
Pin layout : 1. GND / 2. Hot / 3. Cold
Applicable connector : XLR-3-32 or equivalent.
Input attenuator (+4 dB /–20 dB) (See Preset Menu)
x
x ANALOG (Balanced) OUTPUT
These are active balanced outputs using XLR type
connections.
Pin layout : 1. GND / 2. Hot / 3. Cold
Applicable connector
XLR-3-31 or equivalent.
c
c DIGITAL (XLR) INPUT
• This is a balanced input using an XLR type jack.
• Signal format : SPDIF (IEC-958 Type II ) or AES/EBU
• Sampling frequency : 44.1 /48
v
v DIGITAL (XLR) OUTPUT
• This is a balanced output using an XLR type jack.
1.GND / 2.Hot / 3.Cold.
• Signal format : SPDIF(IEC-958 Type II) or AES/EBU
(select in menu)
• Sampling frequency : 44.1 /48 /Auto (select in menu)
• Applicable connector : XLR-3-31 or equivalent
b
b DIGITAL (RCA) INPUT
• This is a coaxial input using an RCA type jack.
• Signal format : SPDIF(IEC-958 Type II ) or AES/EBU
• Sampling frequency : 44.1 /48
n
RS232C connector
Using serial communication, a host device can control
the PMD580.
See page 62.
m
AC INLET
Connect the included power cord here.
,
, ANALOG (Unbalanced) INPUT
These are unbalanced inputs using RCA type jacks.
.
. ANALOG (Unbalanced) OUTPUT
These are unbalanced outputs using RCA type jacks.
⁄0
⁄0 DIGITAL (RCA) OUTPUT
• This is a coaxial output using an RCA type jack.
• Signal format : SPDIF(IEC-958 Type II) or AES/EBU
(select in menu)
• Sampling frequency : 44.1 /48 /Auto (select in menu)
⁄1
⁄1 REMOTE (REMOTE input jack)
Function is selectable by MENU.
(StartPause (for Rec, Play)/StartPauseTR (for Rec, Play)
/Manual Track (for Rec))
See page 31.
⁄2
LAN connector
Using local area network, a host device can control
the PMD580 and archive the recorded files in a shared
folder.
See page 52.
SERIAL NO.
SERIAL NO.
AC IN
AC IN
BALANCED
BALANCED
UNBALANCED
UNBALANCED
L
R
LR
L
R
IN
IN
OUT
OUT
BALANCED
BALANCED
UNBALANCED
UNBALANCED LR
AES
AES /
EBU
EBU
SPDIF
SPDIF
REMOTE
REMOTE
LAN
LAN
RS232C
RS232C
OUT
OUT
IN
IN
ANALOG IN
ANALOG IN
ANALOG OUT
ANALOG OUT
DIGITAL
DIGITAL
z
,
x c v b mn
⁄0 ⁄1 ⁄2.
