14
CF card security
(3 mm × 10 mm long)

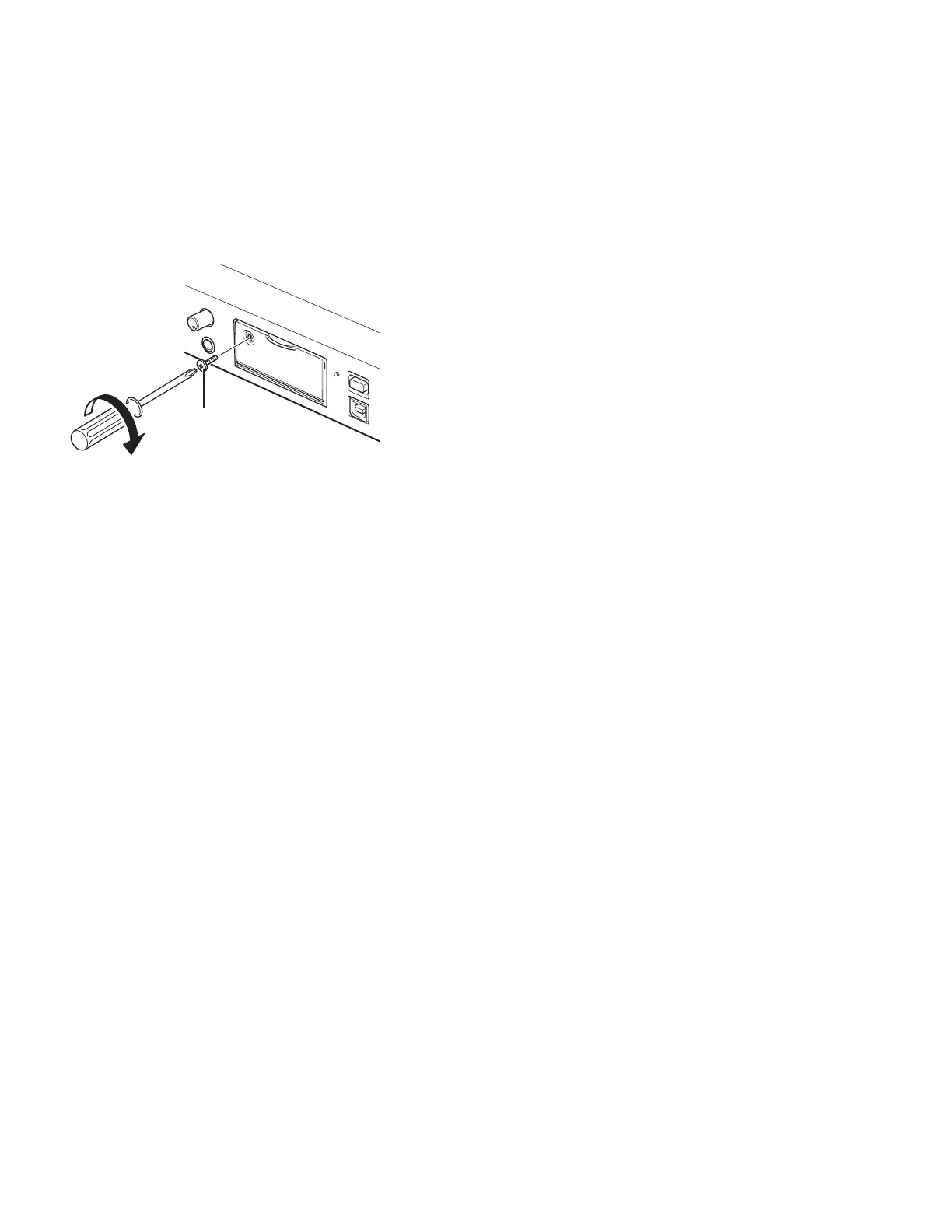

The supplied CF card compartment security screw requires a
small Phillips screwdriver to open the CF card compartment
door. That reduces the possibility of the CF card being
misplaced or stolen.
1. Remove the plastic pin and then the retainer.
2. Add the screw. Tighten the screw with a small Phillips
screwdriver enough so that the screw cannot be
removed with a fingernail.
CF door screw
CF card Format
Formatting a CF card erases all audio files on the CF card
and prepares it for use in the PMD580.
Setup the “Format” in the Utility menu.
