Rise

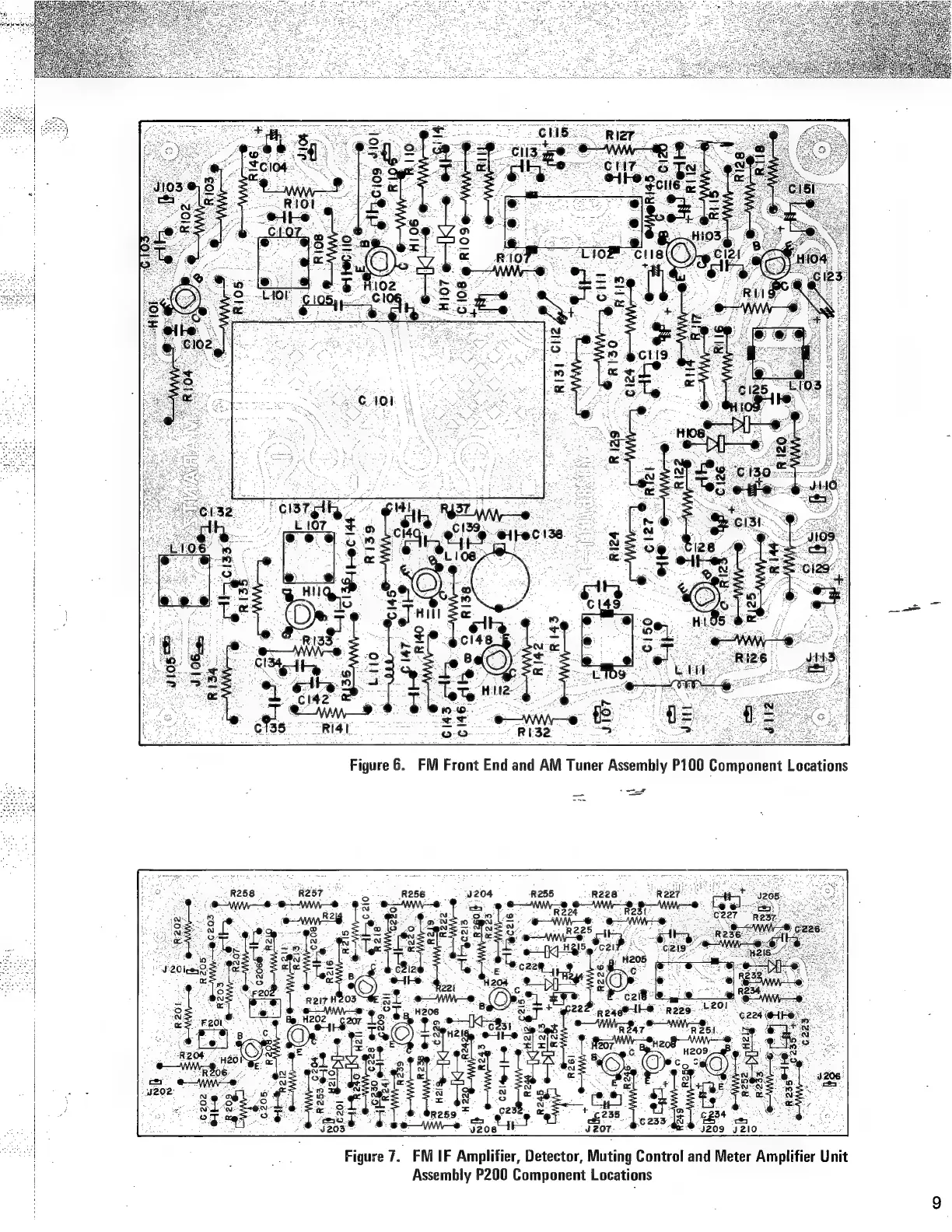

Figure
6.
FM
Front
End
and
AM
Tuner
Assembly
P100
Component
Locations
Figure
7.
FMIF
Amplifier,
Detector,
Muting
Control
and
Meter
Amplifier
Unit
Assembly
P200
Component
Locations
