Reduce oscillator frequency to 30 Hz.
Output should be O dB (+ 0.75 dB).
Increase oscillator frequency to 11.5 kHz.
Output should be O dB (+ O GB, -4 dB).
HIGH LEVEL SEPARATION
Connect oscillator to left channel! AUX
INPUT Jack. Insert a shorting plug into
right channel AUX INPUT Jack. Monitor
signal at PREAMP OUTPUT Jack with
AC VTVM.
Set oscillator frequency to 20 Hz. Set
oscillator level for 0 dB, 3 V rms output
as indicated on the VT VM.
Observe the output of the undriven chan-
nel on the VTVM. Output should be at
least 40 dB below the O dB reference level
indicating a 40 dB left - to - right channel
separation.
Repeat test on right channel.
(2)
(3)
(4)
(5)
RIAA NAB DISK REPRODUCING STD.
20 KHz . . ~19.60 dB
15 KHz . . -17.17 dB
14 KHz . . 16.64 dB
13 KHz . . 15.95 dB
12 KHz . . 15.28 dB
11 KHz . . -14.55 dB
10 KHz . . =13.75 dB
9 KHz. . -12.88 dB
8 KHz . . =11.91 dB
7 KHz . . —10.85 dB
6 KHz . . — 9.62 dB
5 KHz . . = 8.23 dB
4KHz...... . . = 6.64¢B
3KHz...... . .=—4.76dB
2KHz..... . . . = 2.61dB
1000. ....... +. 0,00dB
700. . vee + 1.23 dB
400. + 3814B
300. ........ . + 553 4B
200. ...... . . + 8.22 dB
100... 2...) . #13.11dB
7... . . 2... +16.314 dB
50. ..... . . . +16.96 dB
30. ..... . . . +18.61 dB
20 Hz . +19.30 dB

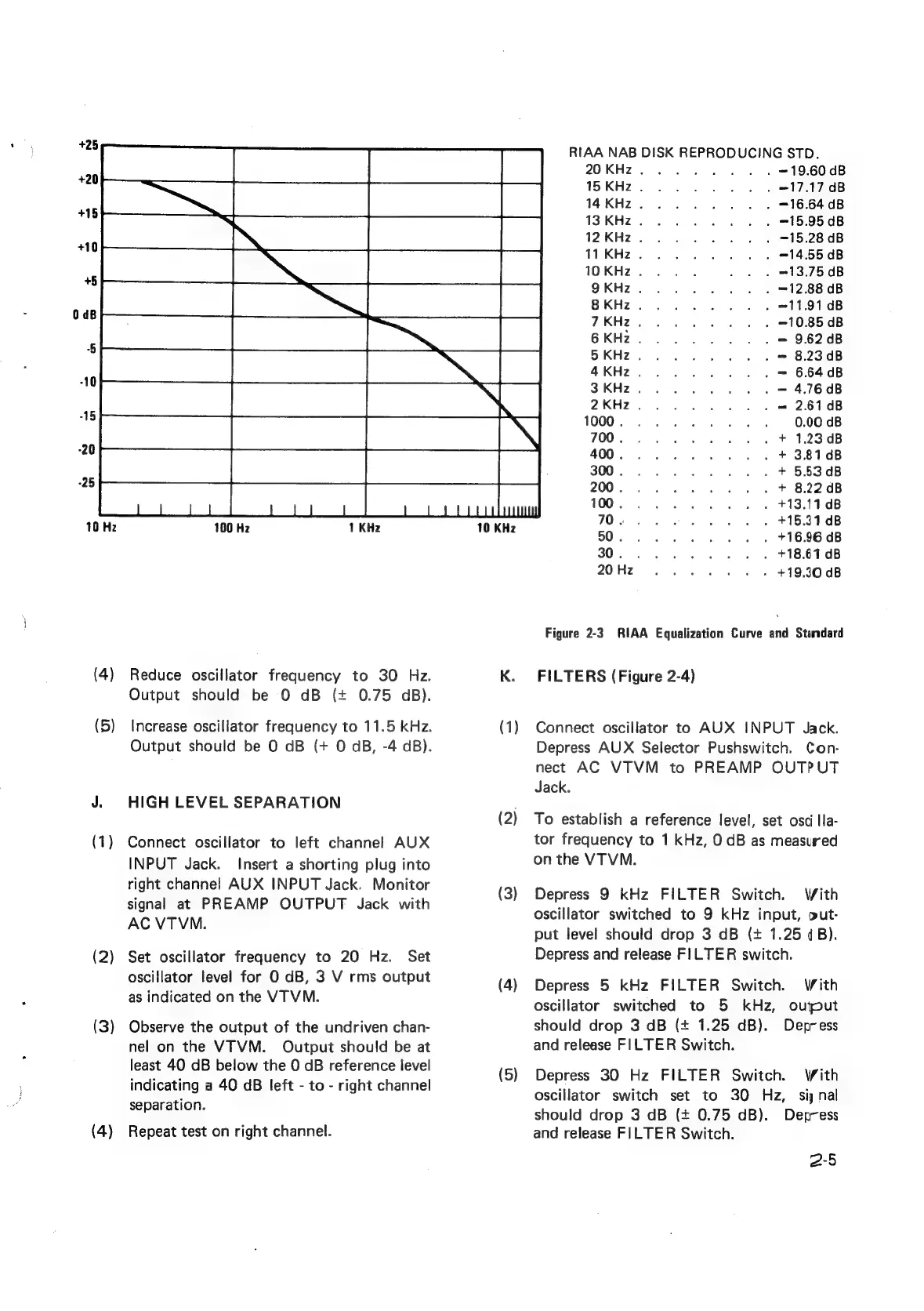

Figure 2-3 RIAA Equalization Curve and Standard
FILTERS (Figure 2-4)
Connect oscillator to AUX INPUT Jack.
Depress AUX Selector Pushswitch. Con-
nect AC VTVM to PREAMP OUTPUT
Jack.
To establish a reference level, set osci Ila-
tor frequency to 1 kHz, 0 dB as measured
on the VTVM.
Depress 9 kHz FILTER Switch. With
oscillator switched to 9 kHz input, out-
put level should drop 3 dB (+ 1.25 4B).
Depress and release FILTER switch.
Depress 5 kHz FILTER Switch. With
oscillator switched to 5 kHz, output
should drop 3 dB (+ 1.25 dB). Depress
and release FILTER Switch.
Depress 30 Hz FILTER Switch. With
oscillator switch set to 30 Hz, siy nal
should drop 3 dB (+ 0.75 dB). Depress
and release FILTER Switch.
