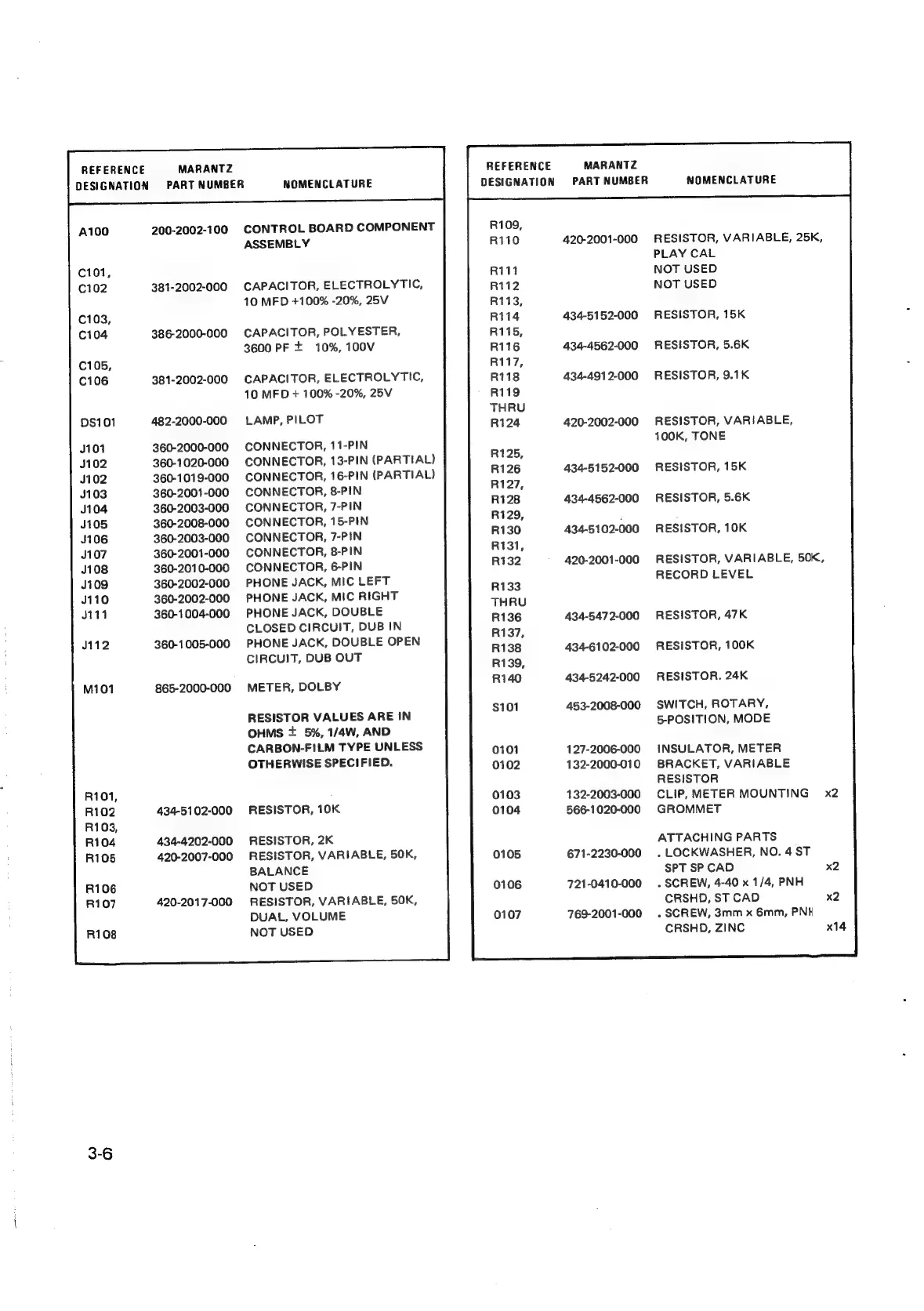

Marantz 3800 - Page 37

REFERENCE
DESIGNATION
A100
C101,
C102
C103,
C104
C105,
C106
DS101
J101
J102
J102
J103
J104
J105
J106
J107
J108
J109
J110
J111
J112
M101
3-6
MARANTZ
PART NUMBER
200-2002-100
381-2002-000
386-2000-000
381-2002-000
482-2000-000
360-2000-000
360-1020-000
360-1019-000
360-2001-000
360-2003-000
360-2008-000
360-2003-000
360-2001-000
360-2010-000
360-2002-000
360-2002-000
360-1004-000
360-1005-000
865-2000-000
434-5102-000
434-4202-000
420-2007-000
420-2017-000
NOMENCLATURE
CONTROL
BOARD
COMPONENT
ASSEMBLY
CAPACITOR, ELECTROLYTIC,
10 MFD +100% -20%, 25V
CAPACITOR, POLYESTER,
3600 PF + 10%, 100V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 25V
LAMP, PILOT
CONNECTOR, 11-PIN
CONNECTOR, 13-PIN (PARTIAL)
CONNECTOR, 16-PIN (PARTIAL)
CONNECTOR, 8-PIN
CONNECTOR, 7-PIN
CONNECTOR, 15-PIN
CONNECTOR, 7-PIN
CONNECTOR, 8-PIN
CONNECTOR, 6-PIN
PHONE JACK, MIC LEFT
PHONE JACK, MIC RIGHT
PHONE JACK, DOUBLE
CLOSED CIRCUIT, DUB IN
PHONE JACK, DOUBLE OPEN
CIRCUIT, DUB OUT
METER, DOLBY
RESISTOR VALUES ARE IN
OHMS + 5%, 1/4W, AND
CARBON-FILM TYPE UNLESS
OTHERWISE SPECIFIED.
RESISTOR, 10K
RESISTOR, 2K
RESISTOR, VARIABLE, 50K,
BALANCE
NOT USED
RESISTOR, VARIABLE, SOK,
DUAL, VOLUME
NOT USED
REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
420-2001-000
434-5152-000
434-4562-000
434-491 2-000
420-2002-000
434-5152-000
434-4562-000
434-5102-000
420-2001-000
434-547 2-000
434-6102-000
434-5242-000
453-2008-000
127-2006-000
132-2000-010
132-2003-000
566-1020-000
671-2230-000
721-0410-000
769-2001-000
NOMENCLATURE
RESISTOR, VARIABLE, 25K,
PLAY CAL
NOT USED
NOT USED
RESISTOR, 15K
RESISTOR, 5.6K
RESISTOR, 9.1K
RESISTOR, VARIABLE,
100K, TONE
RESISTOR, 15K
RESISTOR, 5.6K
RESISTOR, 10K
RESISTOR, VARIABLE, 50K,
RECORD LEVEL
RESISTOR, 47K
RESISTOR, 100K
RESISTOR. 24K
SWITCH, ROTARY,
5-POSITION, MODE
INSULATOR, METER
BRACKET, VARIABLE
RESISTOR
CLIP, METER MOUNTING
GROMMET
ATTACHING PARTS
. LOCKWASHER, NO. 4 ST
SPT SP CAD
. SCREW, 4-40 x 1/4, PNH
CRSHD, ST CAD
. SCREW, 3mm x 6mm, PNH
CRSHD, ZINC
