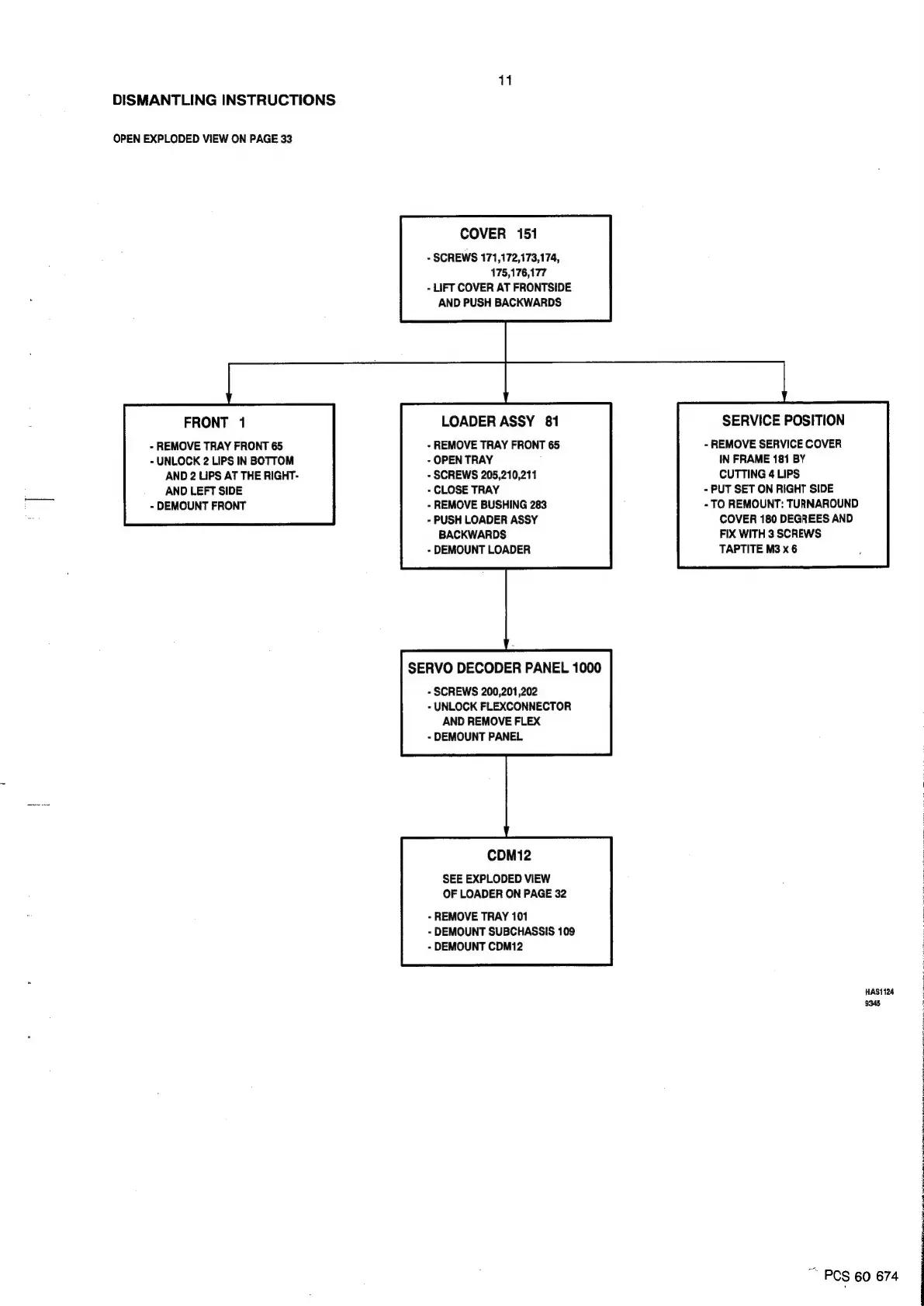

DISMANTLING INSTRUCTIONS
OPEN EXPLODED VIEW ON PAGE 33
FRONT 1
- REMOVE TRAY FRONT 65
- UNLOCK 2 LIPS IN BOTTOM
AND 2 LIPS AT THE RIGHT-
AND LEFT SIDE
- DEMOUNT FRONT
11
COVER 151
- SCREWS 171,172,173,174,
175,176,177
- LIFT COVER AT FRONTSIDE
AND PUSH BACKWARDS
SERVICE POSITION
- REMOVE SERVICE COVER
IN FRAME 181 BY
CUTTING 4 LIPS
- PUT SET ON RIGHT SIDE
- TO REMOUNT: TURNAROUND
COVER 180 DEGREES AND
FIX WITH 3 SCREWS
TAPTITE M3 x 6
LOADER ASSY 81
- REMOVE TRAY FRONT 65
- OPEN TRAY
- SCREWS 205,210,211
- CLOSE TRAY
- REMOVE BUSHING 283
- PUSH LOADER ASSY
BACKWARDS
- DEMOUNT LOADER
SERVO DECODER PANEL 1000
- SCREWS 200,201,202
- UNLOCK FLEXCONNECTOR
AND REMOVE FLEX
- DEMOUNT PANEL
CDM12
SEE EXPLODED VIEW
OF LOADER ON PAGE 32
- REMOVE TRAY 101
- DEMOUNT SUBCHASSIS 109
- DEMOUNT CDM12
. PCS 60 674
HAS1124
9345
