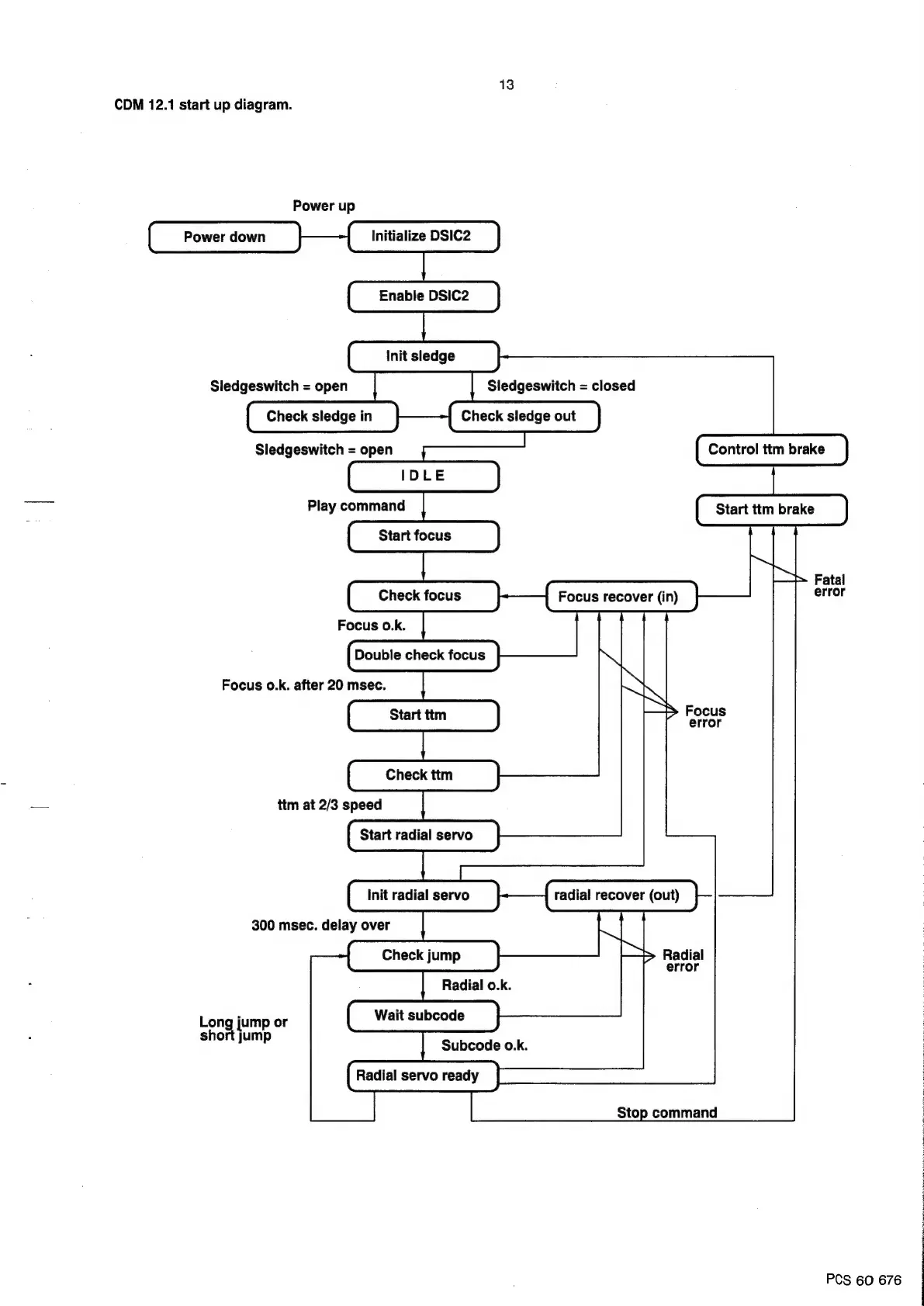

CDM 12.1 start up diagram.
Power up
Initialize DSIC2
Enable DSIC2
Init sledge
Siedgeswitch = open Eee Sledgeswitch = closed
Check sledge in Check sledge out
Sledgeswitch = open
IDLE
Play command
Start focus
Focus o.k.
Double check focus
Focus o.k. after 20 msec.
ttm at 2/3 speed
Start radial servo
Init radial servo radial recover (out)
300 msec. delay over ed
bes. =
Radial o.k.
bcode
Subcode o.k.
Long jump or
short jump
Radial servo ready
Control ttm brake
Start ttm brake
PCS 60 676
