Marantz CD-67SE - Service Mode Operations; Entering and Navigating Service Modes; Error Code Reference and Exit Procedure

6.
A fag Ss ae
. POE RE-EAOAU
e (STOP]. [PLAY], (NEXT]. [PREV] keyD55 2 DLA
LeRL CEREANS.~
» HPO - Ger P00)
TARE: (FOCUS OFF] [SPINDLE OFF) (RADIAL OFF]
(MUTE ON]
e [CUE] keye#BTCALY FOHEBHLET.
e (REVIEW) keys #TCALY FOARNBHLET.
e (NEXT} keye#TCE-FIANBALET.
C SSP 1. eer APs 20%
TARE > (FOCUS ON) [SPINDLE OFF] (RADIAL OFF}
(MUTE ON]
e (NEXT] keye#OCE—-F2A\BALET.
e [PREV] keye#TCE—-FVN\BHLET.
RHR? Gea P 02)
tKRE > [FOCUS ON) [SPINDLE ON] [RADIAL OFF]
(MUTE ON]
e (NEXT] keya##OCE-FEINBHALET.
e (PREVkeye#T¢CE—-FOUANBALET.
. =-F3 GeR P 03)
TARR : [FOCUS ON) (SPINDLE ON] (RADIAL ON)
(MUTE OFF}
e [PREV] keye#TCE—F2ABALET,
* +-KRE—-FOLZTTORECMEO+—-DEM
TT.
1) (STOP] keye#OCFLUABRMNTLET.
2) (PAUSE) key@ #TCETVBSCN-Ysavern
LET.
Cd 67: 1
FOeRvt—-N-Vaves
3) [PLAY] key4#8O CMR O-ERE—-EDYD tf
CEL SUET.
RL, REPRBRENKHICLS-BStRReEN
aS. (Bl: Err 10)
BORZBSAITL TKK.
t-KRE—FORR
e BRZDScC4v—-ERE— EDRMRENET,
2.
1.
a
6.

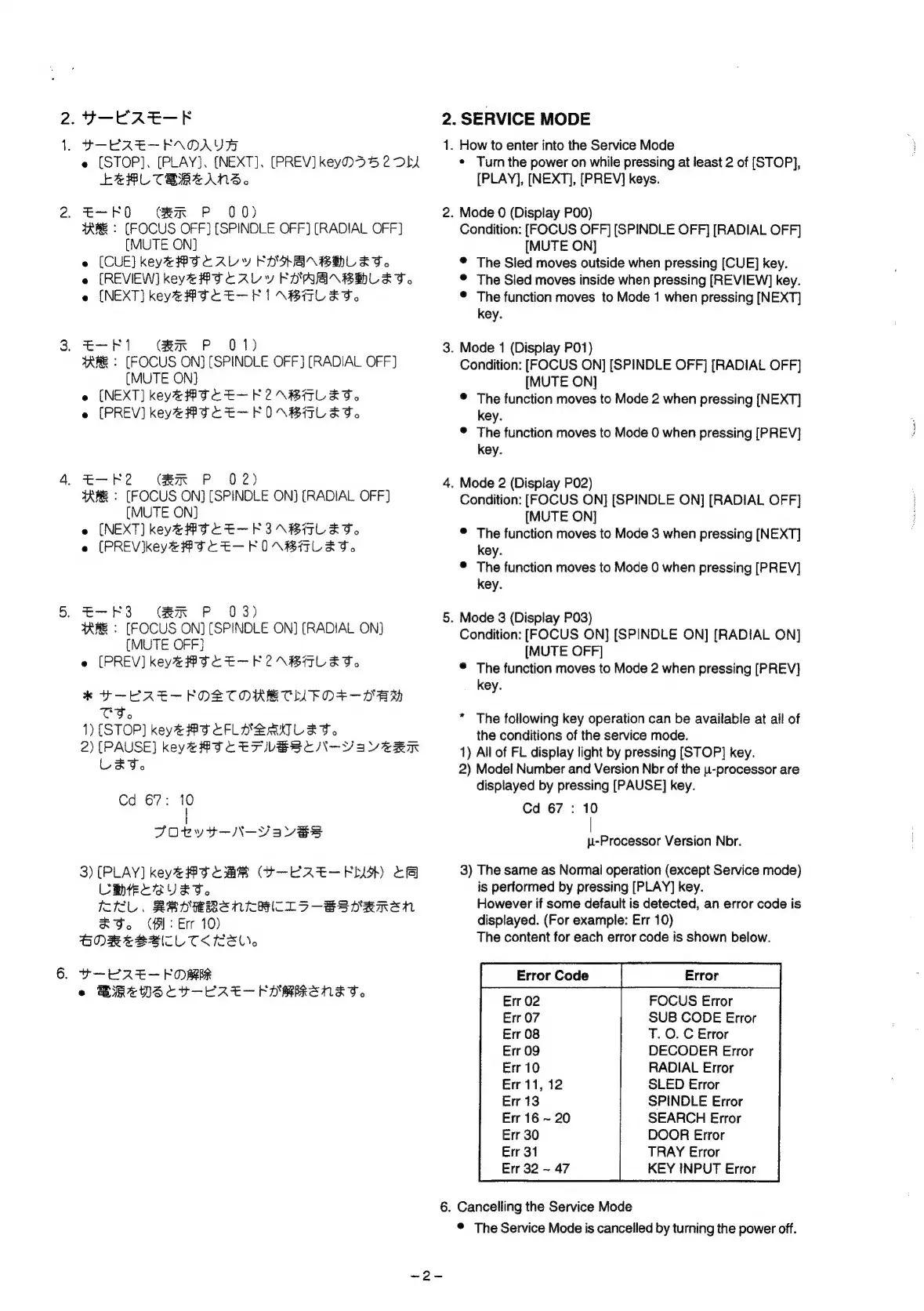

SERVICE MODE
How to enter into the Service Mode
* Turn the power on while pressing at least 2 of [STOP],
[PLAY], [NEXT], [PREV] keys.
. Mode 0 (Display P00)
Condition: [FOCUS OFF] (SPINDLE OFF] [RADIAL OFF]
[MUTE ON]
® The Sled moves outside when pressing [CUE] key.
© The Sled moves inside when pressing [REVIEW] key.
© The function moves to Mode 1 when pressing [NEXT]
key.
. Mode 1 (Display P01)
Condition: [FOCUS ON] [SPINDLE OFF] [RADIAL OFF]
[MUTE ON]
© The function moves to Mode 2 when pressing [NEXT]
key.
© The function moves to Mode 0 when pressing [PREV]
key.
. Mode 2 (Dispiay P02)
Condition: [FOCUS ON] [SPINDLE ON] [RADIAL OFF]
[MUTE ON]
© The function moves to Mode 3 when pressing [NEXT]
key.
© The function moves to Mode 0 when pressing [PREV]
key.
Mode 3 (Display P03)
Condition: [FOCUS ON] [SPINDLE ON] [RADIAL ON]
[MUTE OFF]
® The function moves to Mode 2 when pressing [PREV]
key.
* The following key operation can be available at all of
the conditions of the service mode.
1) All of FL display light by pressing [STOP] key.
2) Model Number and Version Nbr of the u-processor are
displayed by pressing [PAUSE] key.
Cd 67 : 10
|
-Processor Version Nbr.
3) The same as Normal operation (except Service mode)
is performed by pressing [PLAY] key.
However if some default is detected, an error code is
displayed. (For example: Err 10)
The content for each error code is shown below.
[—EnorGode | Eror
Err 02 FOCUS Error
Err 07 SUB CODE Error
Err 08 T. O. C Error
Err 09 DECODER Error
Err 10 RADIAL Error
SLED Error
SPINDLE Error
SEARCH Error
DOOR Error
TRAY Error
KEY INPUT Error
Err 11, 12
Err 13
Err 16 ~ 20
Err 30
Err 31
Err 32 ~ 47
Cancelling the Service Mode
® The Service Mode is cancelled by turning the power off.
