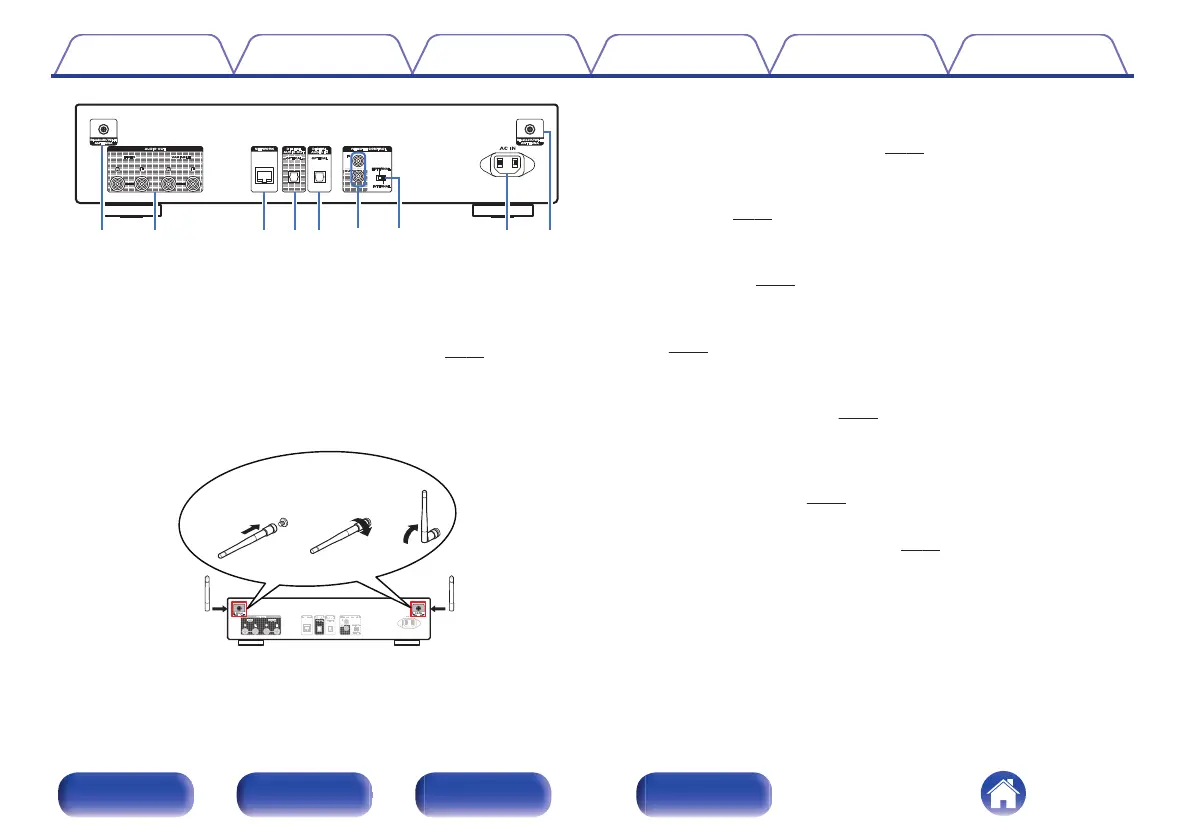

Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 26)
A
Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
.
qwe
B
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 21)
C
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 25)
D
DIGITAL AUDIO OUT connector
Used to connect an AV receiver or D/A converter that has a digital input
connectors. (v p. 22)
E
DIGITAL AUDIO IN connector
Connecting to a device with digital audio output connectors.
(v
p. 23)
F
REMOTE CONTROL connectors
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v
p. 27)
G
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v
p. 27)
H
AC inlet (AC IN)
Used to connect the power cord. (v p. 28)
