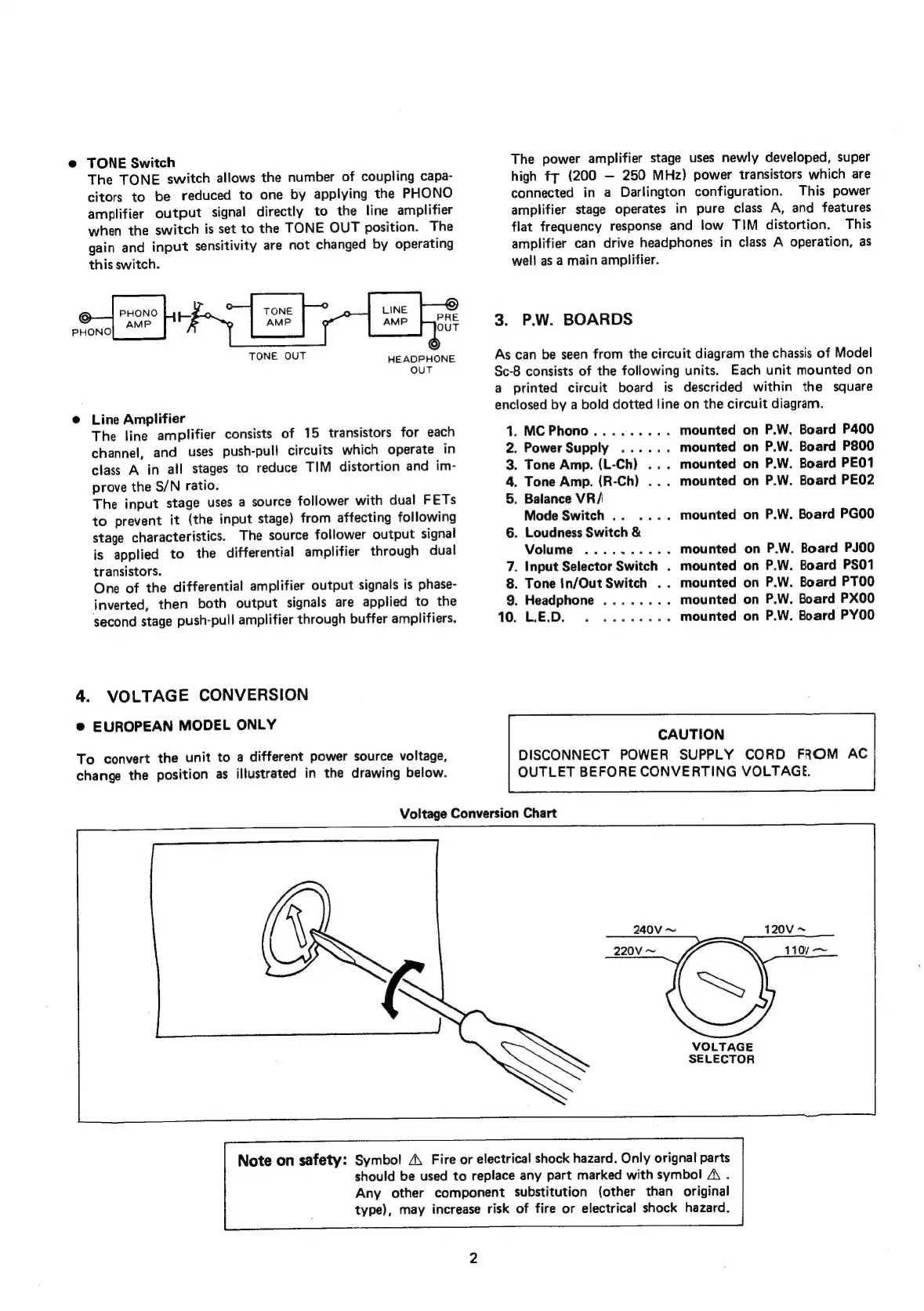

e@
TONE
Switch
The
TONE
switch
allows
the
number
of
coupling
capa-
citors
to
be
reduced
to
one
by
applying
the
PHONO
amplifier
output
signal
directly
to
the
line
amplifier
when
the
switch
is
set
to
the
TONE
OUT
position.
The
gain
and
input
sensitivity
are
not
changed
by
operating
this
switch.
TONE
OUT
HEADPHONE.
OUT
@
Line
Amplifier
The
line
amplifier
consists
of
15
transistors
for
each
channel,
and
uses
push-pull
circuits
which
operate
in
class
A
in
all
stages
to
reduce
TIM
distortion
and
im-
prove
the
S/N
ratio.
The
input
stage
uses
a
source
follower
with
dual
FETs
to
prevent
it
(the
input
stage)
from
affecting
following
stage
characteristics.
The
source
follower
output
signal
is
applied
to
the
differential
amplifier
through
dual
transistors.
One
of
the
differential
amplifier
output
signals
is
phase-
inverted,
then
both
output
signals
are
applied
to
the
second
stage
push-pull
amplifier
through
buffer
amplifiers.
The
power
amplifier
stage
uses
newly
developed,
super
high
f7
(200
250
MHz)
power
transistors
which
are
connected
in
a
Darlington
configuration.
This
power
amplifier
stage
operates
in
pure
class
A,
and
features
flat
frequency
response
and
low
TIM
distortion.
This
amplifier
can
drive
headphones
in
class
A
operation,
as
well
as
a
main
amplifier.
3.
P.W.
BOARDS
As
can
be
seen
from
the
circuit
diagram
the
chassis
of
Model
Sc-8
consists
of
the
following
units.
Each
unit
mounted
on
a
printed
circuit
board
is
descrided
within
the
square
enclosed
by
a
bold
dotted
line
on
the
circuit
diagram.
1.
MCPhono.........
mounted
on
P.W.
Board
P400
2.
Power
Supply
......
mounted
on
P.W.
Board
P800
3.
Tone
Amp.
(L-Ch)
...
mounted
on
P.W.
Board
PEO1
4.
Tone
Amp.
(R-Ch)
...
mounted
on
P.W.
Board
PEO2
5.
Balance
VR/i
Mode
Switch
..
....
mounted
on
P.W.
Board
PGOO
6.
Loudness
Switch
&
Volume
......+-55
mounted
on
P.W.
Board
PJOO
7.
Input
Selector
Switch
.
mounted
on
P.W.
Board
PS01
8.
Tone
In/Out
Switch
..
mounted
on
P.W.
Board
PTOO
9.
Headphone
........
mounted
on
P.W.
Board
PX00
10.
L.ED.
.
.......-
mounted
on
P.W.
Board
PY00O
4.
VOLTAGE
CONVERSION
@
EUROPEAN
MODEL
ONLY
CAUTION
To
convert
the
unit
to
a
different
power
source
voltage,
DISCONNECT
POWER
SUPPLY
CORD
FROM
AC
change
the
position
as
illustrated
in
the
drawing
below.
OUTLET
BEFORE
CONVERTING
VOLTAGE.
Voltage
Conversion
Chart
VOLTAGE
SELECTOR
Note
on
safety:
Symbo!
A\
Fire
or
electrical
shock
hazard.
Only
orignal
parts
should
be
used
to
replace
any
part
marked
with
symbol
A\
.
Any
other
component
substitution
(other
than
original
type),
may
increase
risk
of
fire
or
electrical
shock
hazard.
