Marantz SD4000 - Disassembly Procedures; Removing the Cassette Case Escutcheon; Removing the Front Panel; Removing the Mechanical Chassis

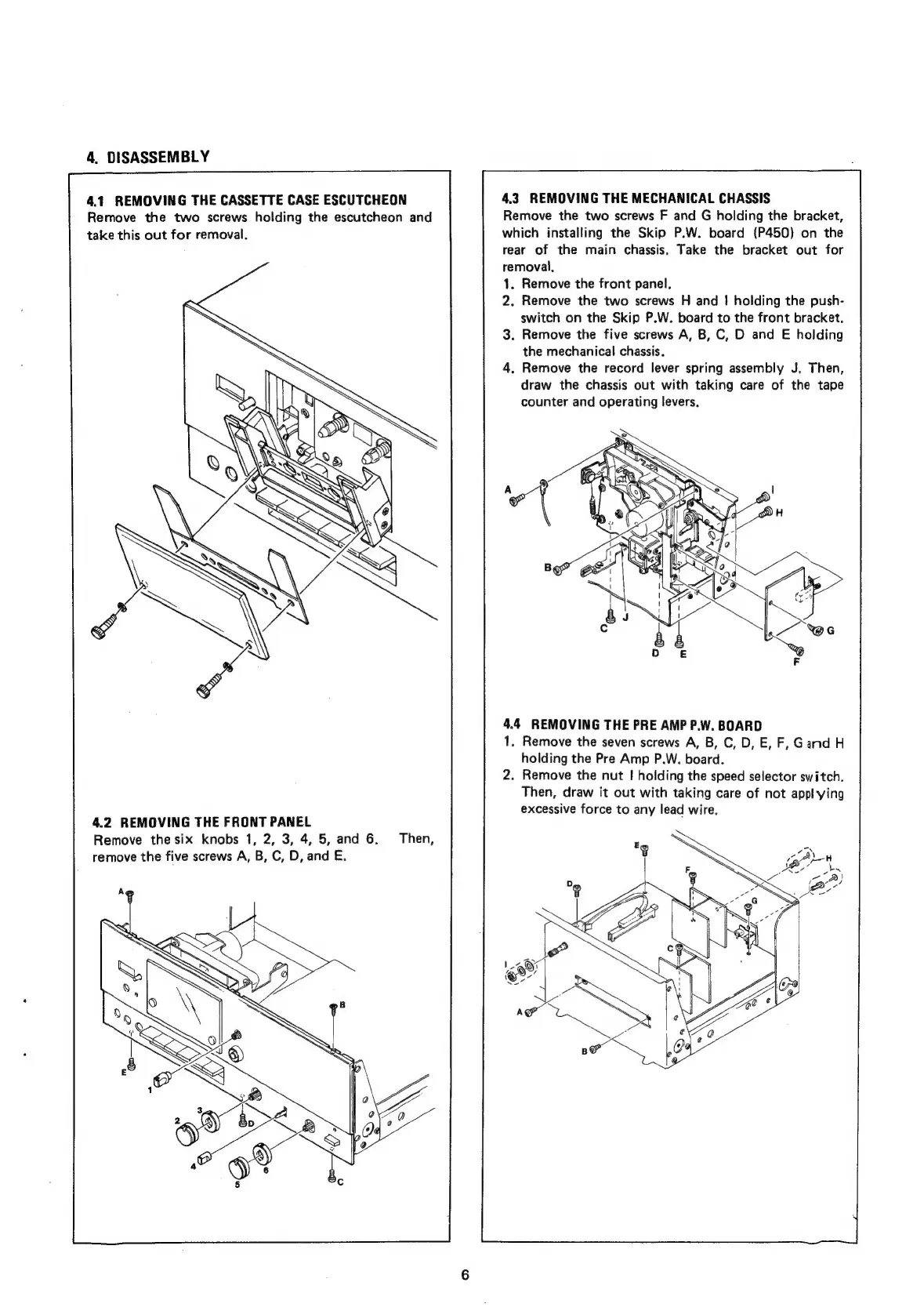

4. DISASSEMBLY
4.1
REMOVING
THE
CASSETTE
CASE
ESCUTCHEON
4.3
REMOVING
THE
MECHANICAL
CHASSIS
Remove
the
two
screws
holding the escutcheon
and
Remove
the two
screws
F
and
G
holding the bracket,
take
this
out
for
removal.
which
installing
the
Skip
P.W.
board
(P450)
on the
:
rear
of the main
chassis.
Take the
bracket
out
for
removal,
. Remove
the
front
panel.
. Remove
the
two
screws
H
and
| holding
the
push-
PS
switch on
the
Skip
P.W.
board
to
the
front
bracket.
7
.
Remove
the
five screws
A,
B,
C,
D and
E
holding
the
mechanical
chassis.
. Remove
the
record
lever
spring assembly J.
Then,
draw
the chassis
out
with
taking care
of
the
tape
counter
and
operating
levers.
4.4 REMOVING THE PRE AMP P.W. BOARD
1. Remove the seven screws A, B, C, D, E, F, Gand H
holding the Pre Amp P.W. board.
2. Remove the nut | holding the speed selector switch.
Then, draw it out with taking care of not applying
excessive force to any lead wire.
4.2 REMOVING THE FRONT PANEL
Remove the six knobs 1, 2, 3, 4, 5, and 6. Then,
remove the five screws A, B, C, D, and E.
