UUssiinngg IInnssttrruuccttiioonnss
IItteemm DDeessccrriippttiioonn
1 Trigger
2 Trigger lock
3 Level bubble
4 Spindle
5 Handle
6 Gear selector
7 Side handle
8 Water hose assembly
9 Adapter
10 RCD
11 230V Plug
Your DDM2 - 230 machine is supplied so it can be used with Marcrist diamond cores &
drilling accessories. Only use the DDM2 - 230 for the purpose for which it was
designed i.e. diamond drilling!
CCoonntteennttss
• DDM2 – 230V diamond drilling machine.
• 1/2” BSP to 1/2” BSP adaptor.
• Spanners to help set up and removal of core drills & accessories from the machine.
IIlllluussttrraatteedd ddeessccrriippttiioonn ooff ffuunnccttiioonnss

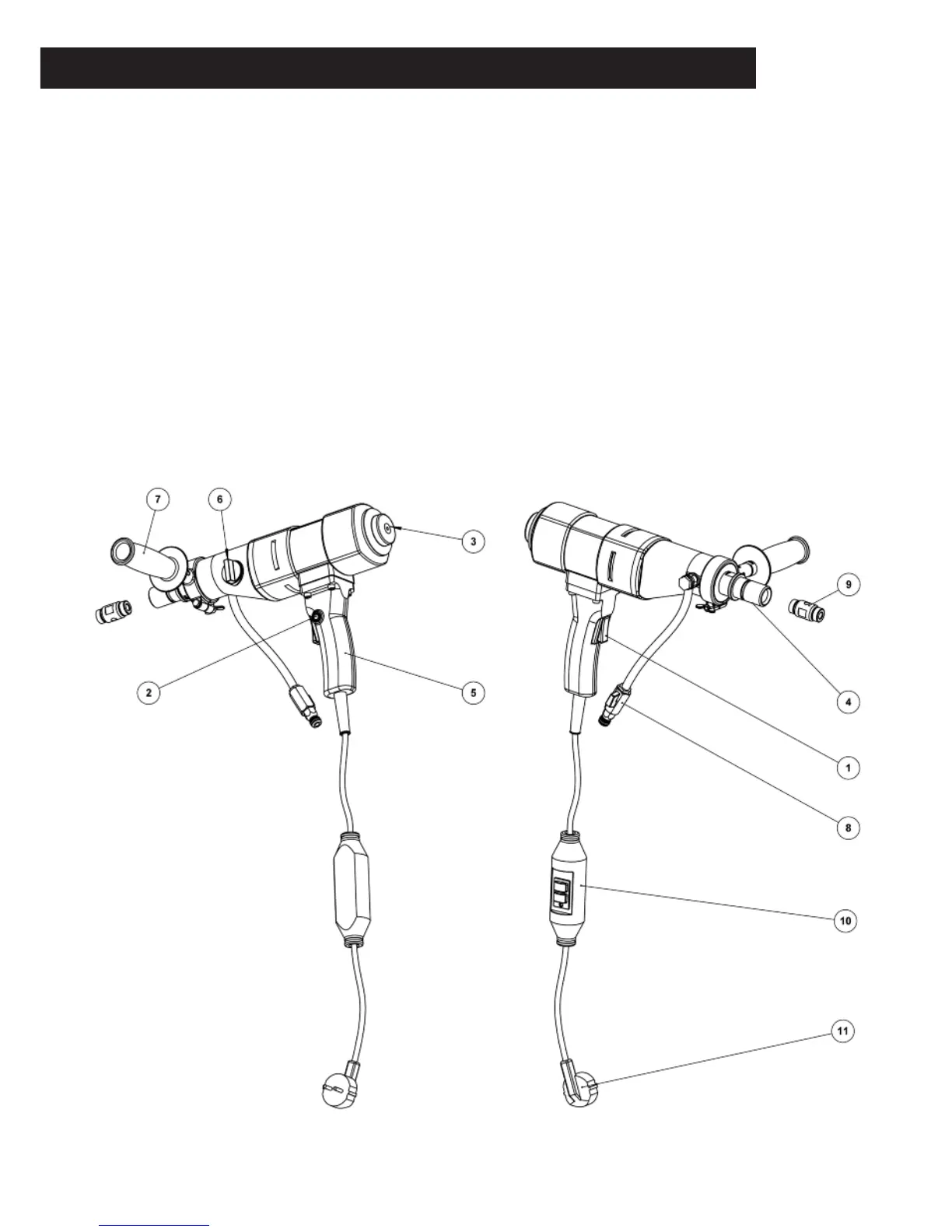

The main functions of the DDM2 - 230 are illustrated below.
